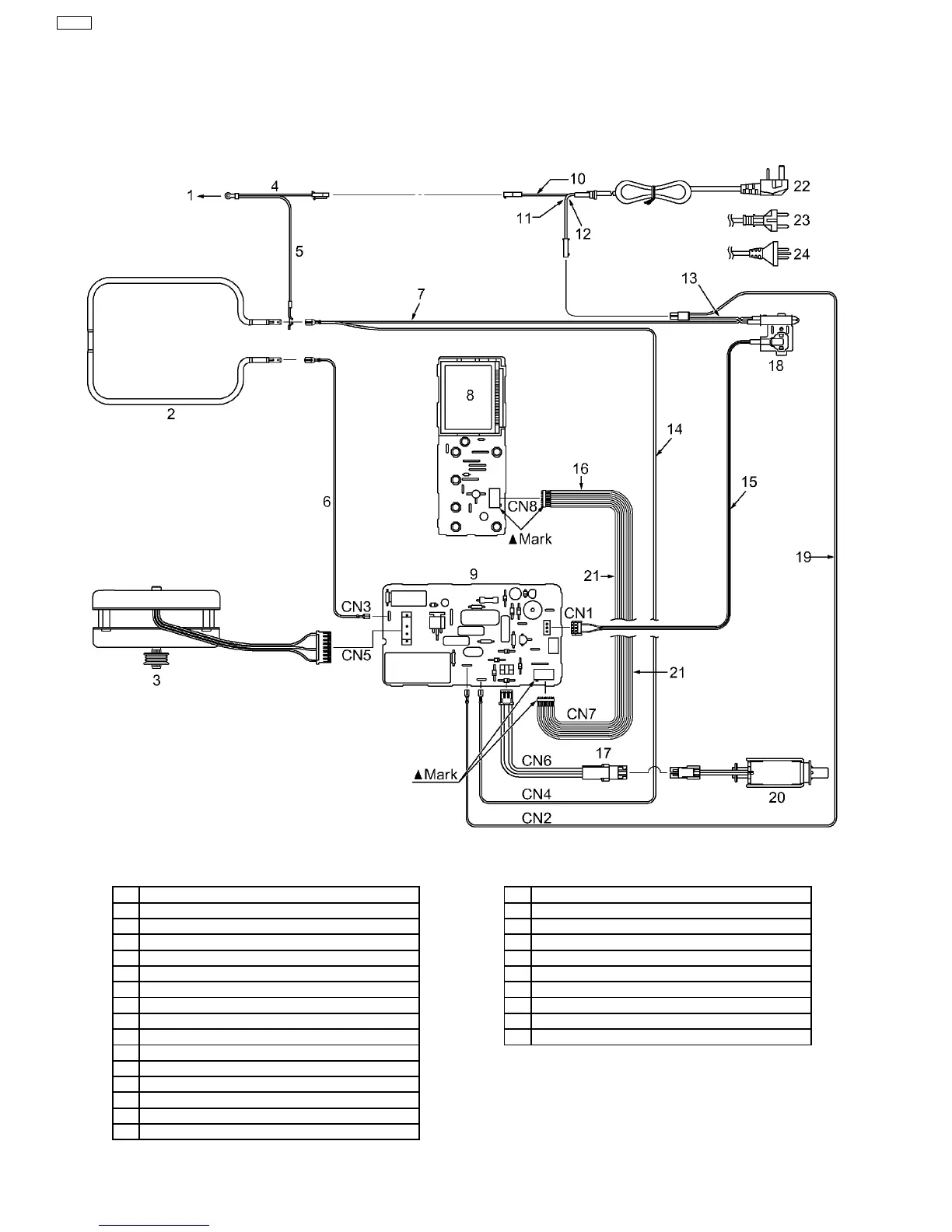

Panasonic SD-253 - Wiring Connection Diagram

No. Parts Name
1 For Angle
2 Heater
3 Kneading motor
4 Ground wire A
5 Wire (Yellow/Green)
6 Lead wire B (white)
7 Wire (Black)
8 P.C.Board A
9 P.C.Board B
10 Wire (Yellow/Green)
11 Wire (Brown)
12 Wire (Blue)
13 Wire (Blue)
14 Wire (Black)
15 Wire (Blue)
No. Parts Name
16 Flat cable
17 Connector
18 Sensor (W/Fuse)
19 Wire (Orange)
20 Solenoid Ass’y
21 Yellow line
22 Power cord (ENG)
23 Power cord (GER, BEL, RSA)
24 Power cord (AUST, NZL)
4 WIRING CONNECTION DIAGRAM
22
SD-253
