(4) Adjustment instruction
At any input source then press the “←”, “EXIT” and “OK” (Remote control within 1 sec) to enter factory mode
During Factory menu, if “MENU” key is pushed, system will exit factory mode.
4-1. Source Calibration
4-1.1. Set the signal generator to input sources Component on LCD-TV; ASTRO-859 signal setting to NTSC-M
(PG2 mode Timing 924 and Pattern 984 SMPTE Color Bar.)

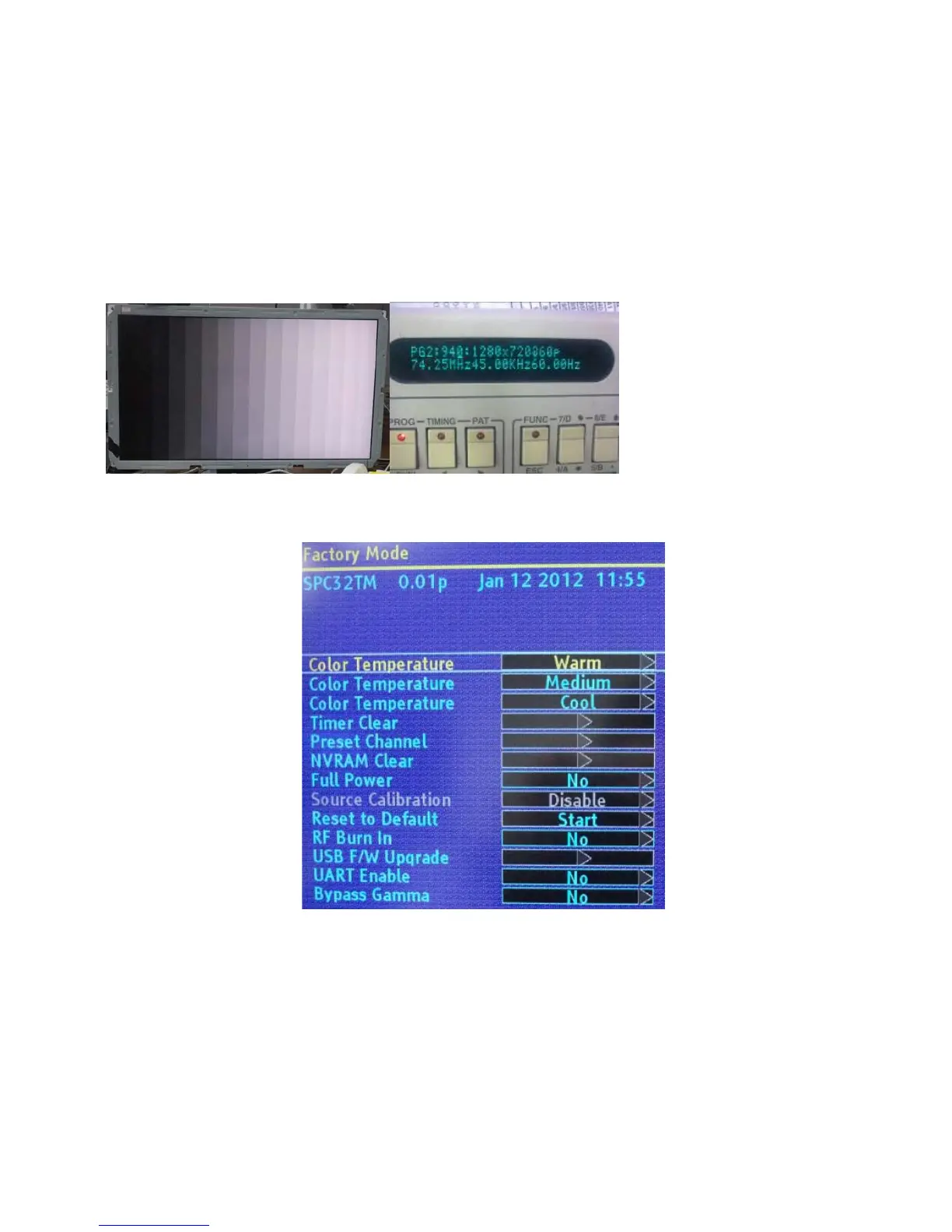

4-1.2. Entering into factory Mode: Press up or down key of remote control to select “Source Calibration”, Press
「OK」 key to enter the item.
-> Source calibration performed automatically when finished that will show OK.
Repeat step 2 to do VGA input sources,
ASTRO-859 signal setting to1024X768 60Hz. (PG2 mode: Timing 963 and Pattern 942 16step H-grayscale +
white border.)
