Panasonic TH-103PF9UK - Page 18

Data Driver
IC
PDP panel
Buffer IC
(RGB)
Buffer IC
(RGB)
Thin line
PDP panel
Buffer IC
(RGB)
Buffer IC
(RGB)

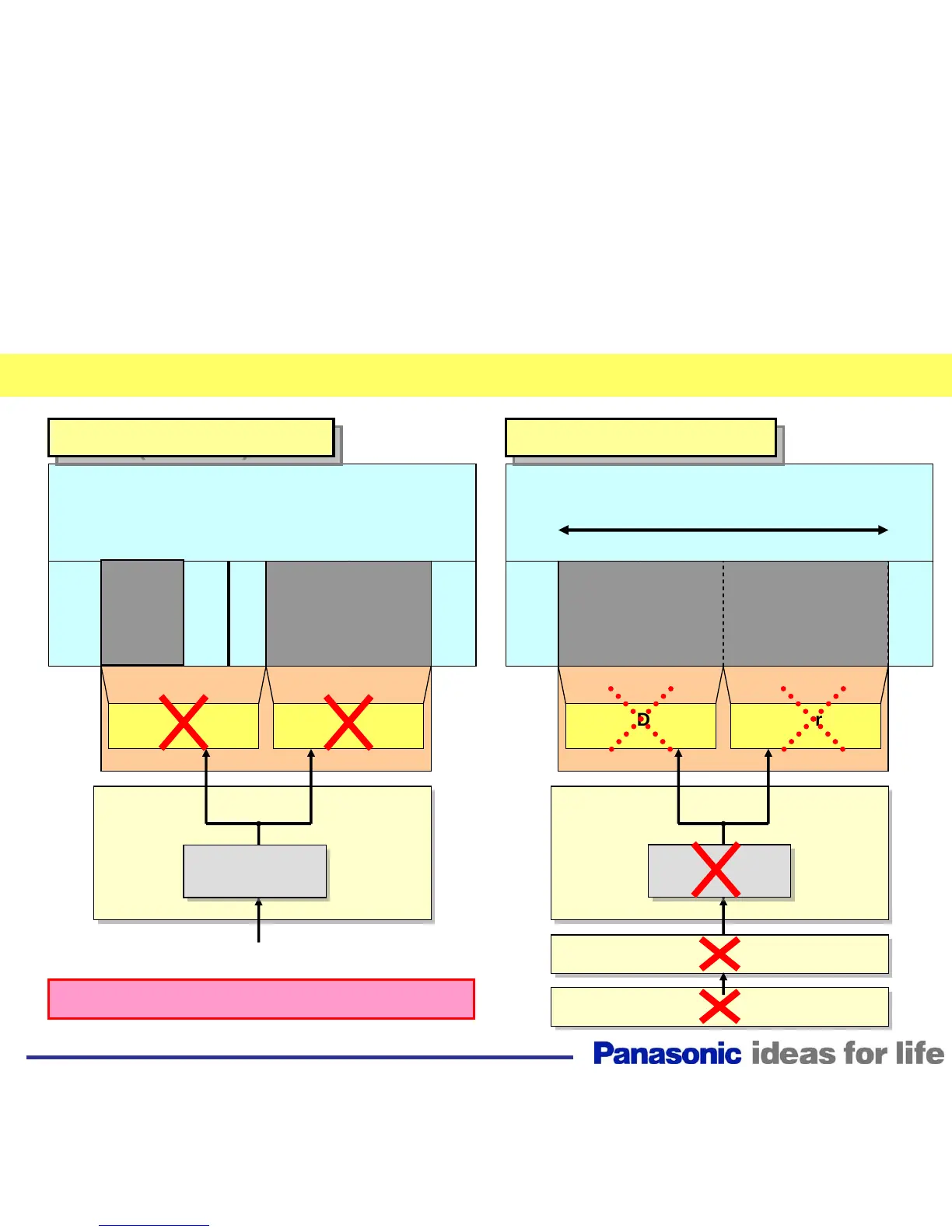

Panel (IC driver) defect
Panel (IC driver) defect
C or CD circuit defect
C or CD circuit defect
C boardC board
Data driver IC defect = PDP panel defect
15cm approx.
CD board
D board
Abnormal
Abnormal
Abnormal
Data Driver
IC
Data Driver
IC
Data Driver
IC
Picture Trouble (Vertical line) (1)
