SS2
SS3
SS
HA
HX
HDD
DS
DN D
SU
SD
DR1 DR2
DR1
DR2
P1・P2 P1・P2
CDCDCD
CD CD CD
C1 C2 C3
C4
C5
C6
C7
C8
C9CXCY
CZ
SM
SC

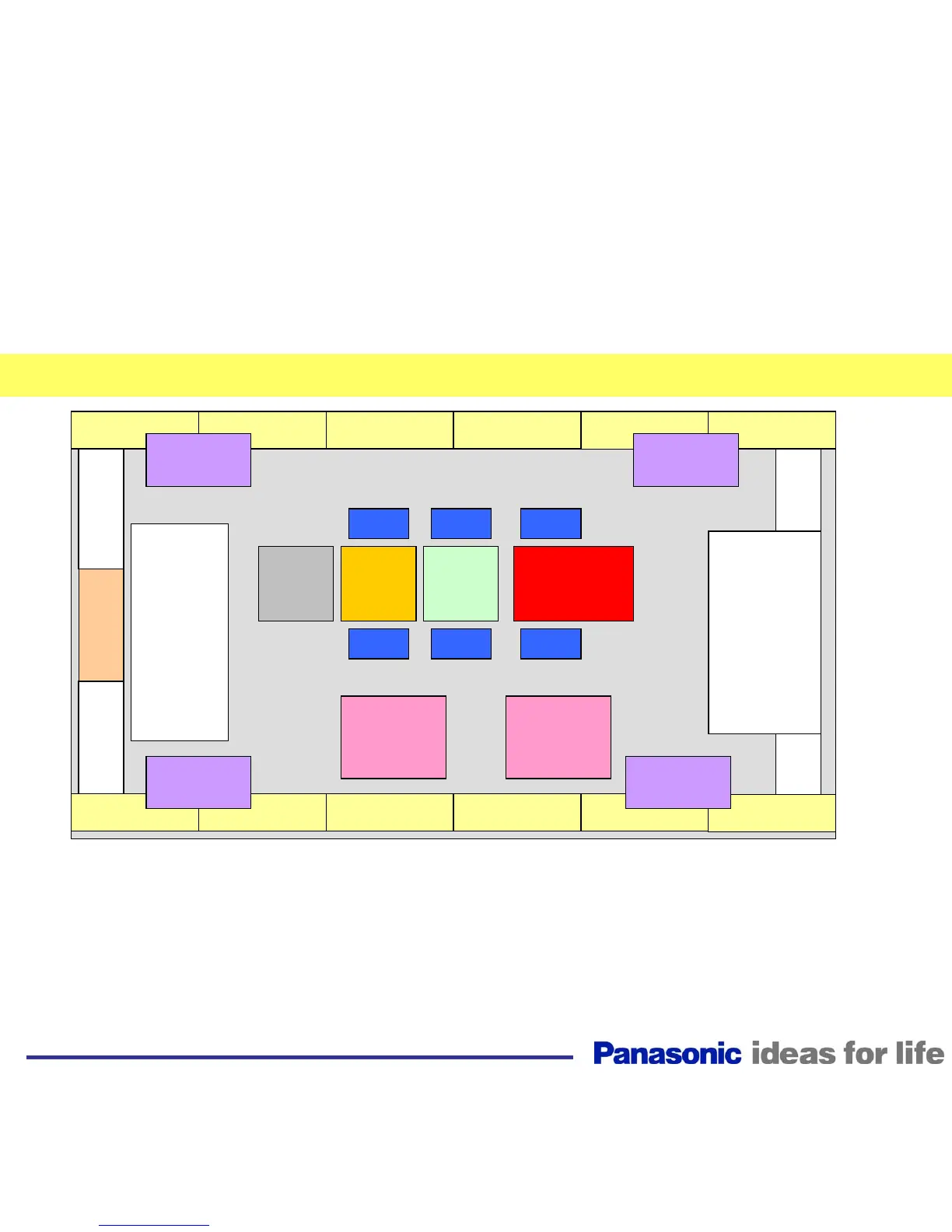

Chassis structure
The 103” plasma display television contains many more boards than the smaller size
plasma display models that are on the market today. It contains:
1. Two P boards (power supply)
2. Twelve C boards (data drive)
3. The SM board is added to complement the SU and SD of current model.
4. There are four DR boards added to the unit, one at each corner
5. There is the DS board that connects the HX, HA, and HDD to the DN board.
7
