TH-42PV8DA/HA/HMA/MA/MRA/MSA/MTA

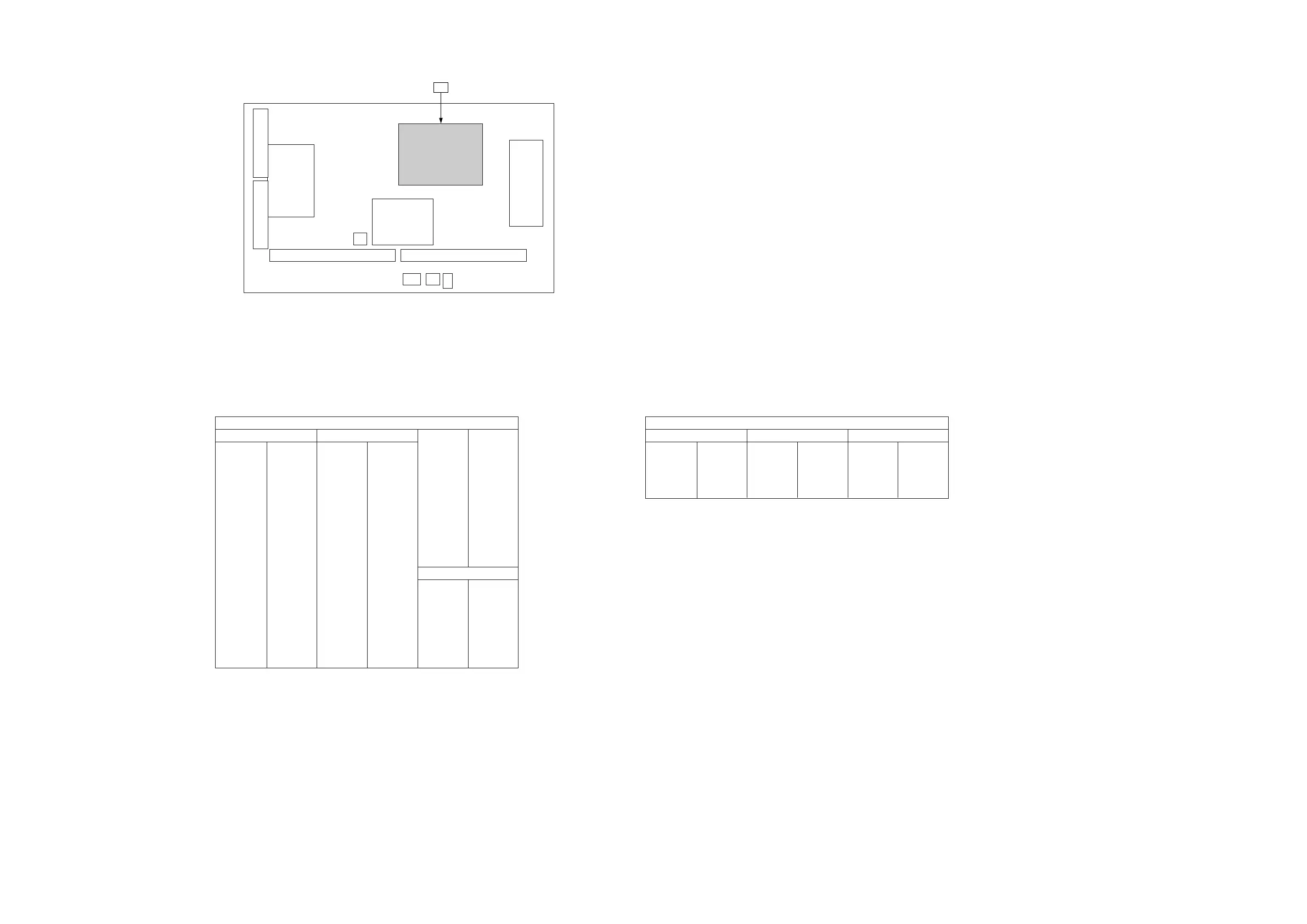

P-BOARD PARTS LOCATION
TH-42PV8DA/HA/HMA/MA/MRA/MSA/MTA
P-BOARD PARTS LOCATION
Parts Location
P-BOARD (FOIL SIDE)
IC401 E-3
IC402 E-2
IC403 F-2
IC406 D-4
IC408 F-2
IC409 E-1
IC411 D-2
IC412 F-3
IC501 H-2
IC502 H-1
IC504 F-3
IC505 H-5
IC506 H-5
IC507 G-4
IC508 H-4
IC509 G-4
IC510 I-1
IC511 G-5
IC512 H-4
IC513 H-3
IC520 H-3
IC
Q401 D-4
Q402 D-4
Q403 E-3
Q404 C-4
Q406 C-4
Q407 D-3
Q408 D-3
Q409 E-4
Q410 F-2
Q411 E-2
Q412 D-3
Q413 E-4
Q420 D-4
Q434 D-2
Q501 H-1
Q502 G-1
Q507 F-5
Q508 G-2
Q509 G-3
Q510 G-4
Q517 E-4
Q520 F-4
Q521 G-2
Q524 H-2
Q525 H-4
Q527 I-5
TRANSISTOR
Q530 H-4
Q535 H-4
Q537 G-1
Q538 H-2
Q540 H-5
Q541 H-3
Q553 G-2
Q554 G-2
Q555 G-4
Q556 H-4
Q563 G-2
Q564 G-3
Q565 H-3
Q567 G-2
Q569 G-2
R443 C-4
R628 H-4
R661 G-3
R665 H-3
VOLUME
Parts Location
IC402 E-2
IC409 E-2
IC
Q404 F-4
Q406 G-4
Q412 E-3
Q413 E-4
Q507 D-4
Q527 A-5
TRANSISTOR
R443 F-4
R628 B-4
R661 C-3
R665 B-3
VOLUME
P-BOARD (COMPONENT SIDE)
