Parts and Functions

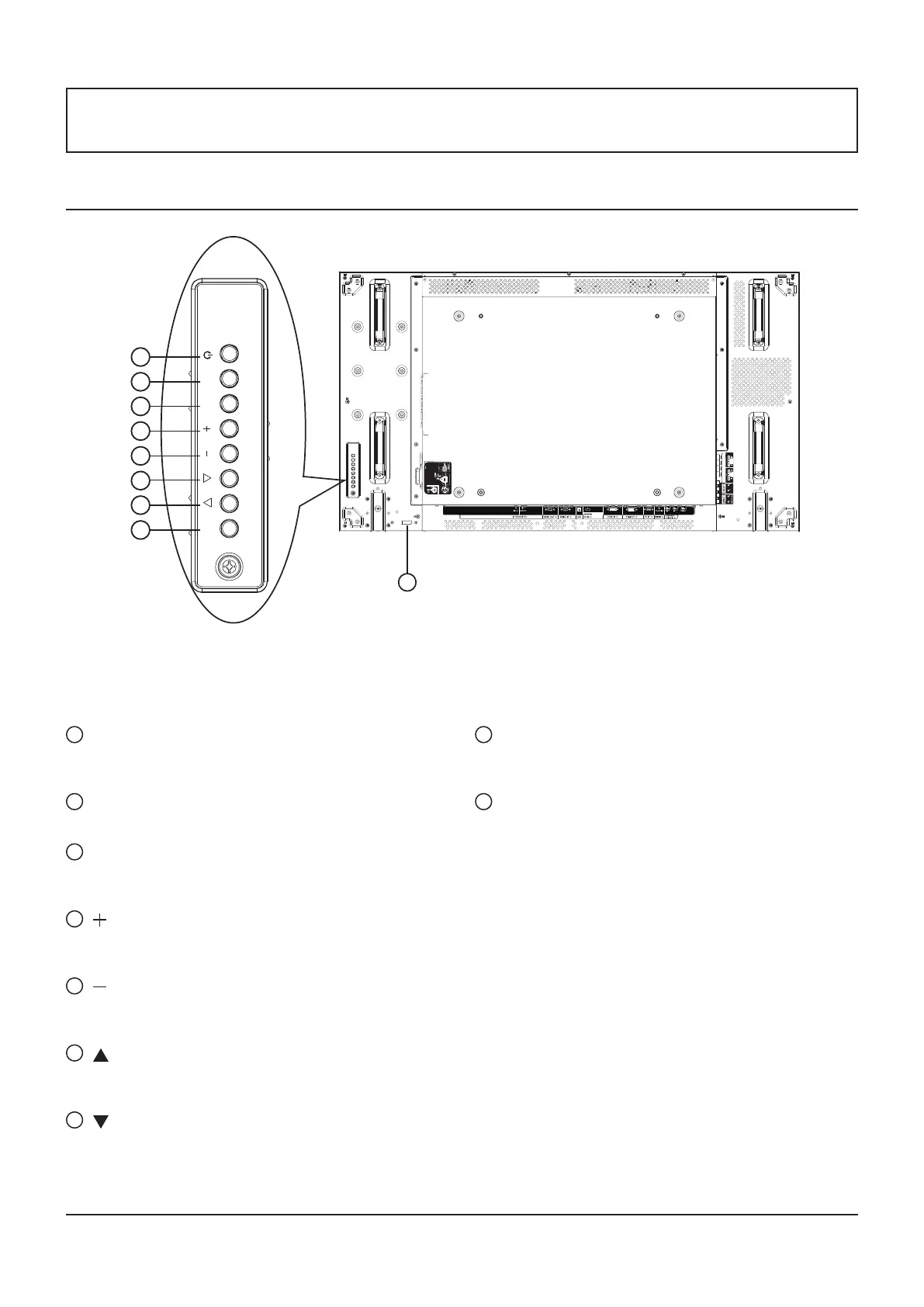

Control Panel
EXT SP(8Ω,20W[10W+10W])
9
MUTE INPUT MENU
1 2 3 4 5 6 7 8
1
POWER button
Use this button to turn this Display on or put this Display
to standby.
2
MUTE button
Switch the audio mute ON/OFF.
3
INPUT button
Use this button to select the input source.
• Used as [SET] button in the On-Screen-Display menu.
4
[ ] button
Increase the adjustment while OSD menu is on, or
increase the audio output level while OSD menu is off.
5
[ ] button
Decrease the adjustment while OSD menu is on, or
decrease the audio output level while OSD menu is off.
6
[ ] button
Move the highlight bar up to adjust the selected item while
OSD menu is on.
7
[ ] button
Move the highlight bar down to adjust the selected item
while OSD menu is on.
8
MENU button
Press to activate the OSD menu when OSD menu is off.
Press to return to previous menu while OSD menu is on.
9
Remote control sensor and power status
indicator
• Receives command signals from the remote control.
• Indicates the operating status of this Display:
- Lights green when this Display is turned on
- Lights red when this Display is in standby mode
- Lights red and green when this Display enters “Power
Save” mode
- When {SCHEDULE} is enabled, the indicator lights
blinking green and static red
- If the light blinks red, it indicates that a failure has
been detected
- Off when the main power of this Display is turned off
