Panasonic TH-65EF1E - DVI-D in Terminal Connection

English
18

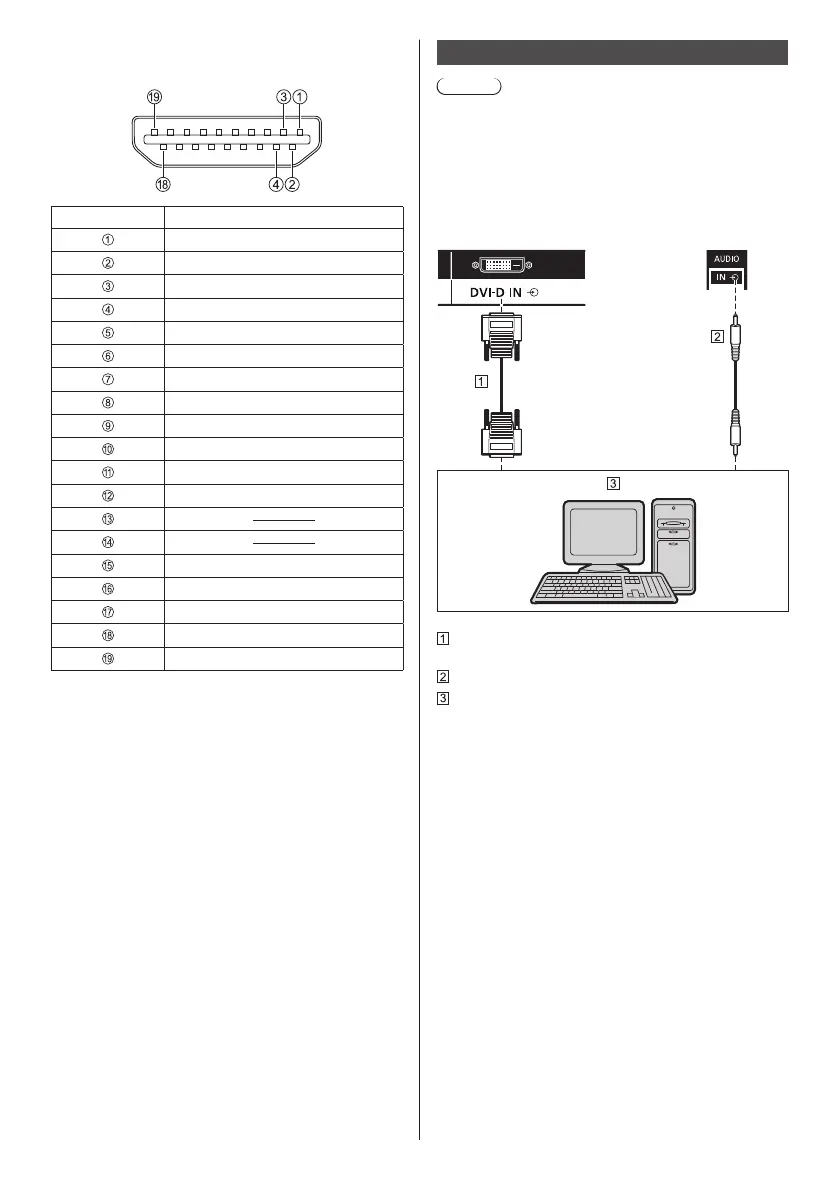

Pin assignments and signal names for HDMI
Terminal
Pin No. Signal name
T.M.D.S Data2+
T.M.D.S Data2 Shield
T.M.D.S Data2-
T.M.D.S Data1+
T.M.D.S Data1 Shield
T.M.D.S Data1-
T.M.D.S Data0+
T.M.D.S Data0 Shield
T.M.D.S Data0-
T.M.D.S Clock+
T.M.D.S Clock Shield
T.M.D.S Clock-
SCL
SDA
Ground
+5V DC
Hot Plug Detect
DVI-D IN terminal connection
Note
●
Video equipment and cables shown are not supplied
with this unit.
●
Use the DVI-D cable complying with the DVI
standard. Image deterioration may occur depending
on the length or the quality of the cable.
●
DVI-D IN terminal is for Single Link only.
Shared with PC IN.
DVI-D video cable (Within 5 m) (commercially
available)
Stereo mini plug (M3) cable (commercially available)
PC with DVI-D video out
