Panasonic TH-65PF20U - Page 83

TH-65PF20U
83

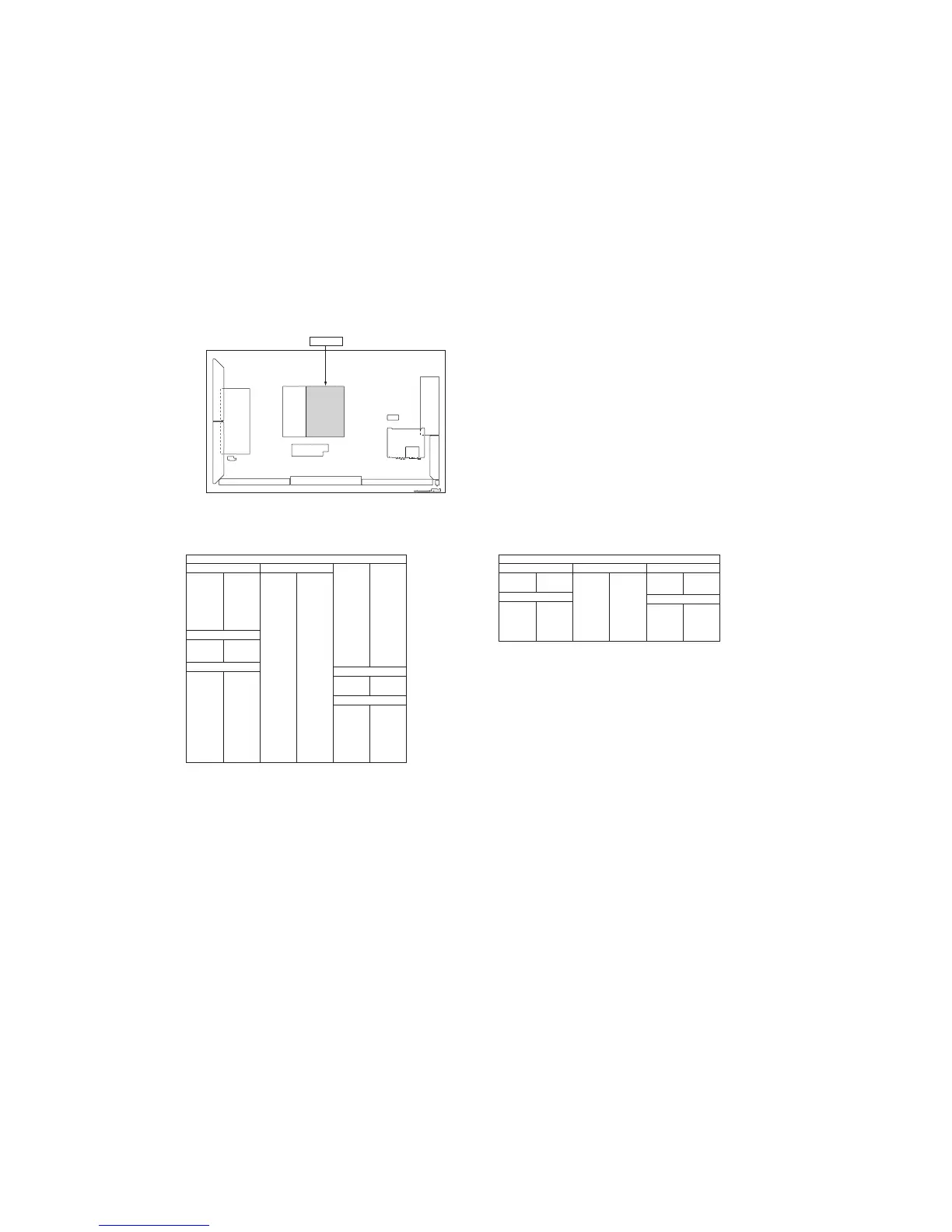

Parts Location
P(MAIN)-BOARD (FOIL SIDE)
IC201 D-4
IC202 D-2
IC251 G-3
IC352 F-3
IC403 H-5
IC501 D-2
IC551 D-1
IC601 D-5
MC551 E-1
MC701 G-1
PC201 F-3
PC202 F-3
PC501 F-3
PC502 C-1
PC504 C-1
PC510 D-1
IC
PHOTO COUPLER
MODULE
Q201 D-3
Q202 E-3
Q203 E-4
Q204 D-3
Q251 G-2
Q252 G-2
Q355 F-3
Q356 G-3
Q357 F-3
Q401 G-4
Q402 H-5
Q403 H-5
Q404 H-5
Q405 H-5
Q406 H-5
Q407 H-4
Q408 H-4
Q502 C-2
Q503 E-3
Q504 D-3
Q505 C-2
Q506 C-1
Q507 D-1
Q508 D-1
Q551 F-2
Q557 F-2
Q558 F-2
Q559 F-3
Q560 D-1
Q561 E-1
TRANSISTOR
TP5 H-3
TP9 I-5
Q601 D-5
Q602 E-5
Q603 E-5
Q604 E-5
Q605 D-2
Q606 E-4
Q607 D-3
Q702 G-1
Q706 H-2
Q707 G-1
Q708 G-1
Q709 I-1
Q710 H-1
Q711 I-2
Q712 H-1
TEST POINT
VR251 H-3
VR401 H-5
VOLUME
Parts Location
P(MAIN)-BOARD (COMPONENT SIDE)
IC201 D-3
IC501 D-5
MC551 E-6
MC701 G-6
IC
MODULE
Q201 D-4
Q202 E-4
Q355 F-4
Q401 H-3
Q402 H-2
Q403 H-2
Q551 F-4
Q601 D-2
Q604 E-2
Q606 E-2
TRANSISTOR
TP5 H-4
TP9 H-2
TEST POINT
VR251 H-4
VR401 H-2
VOLUME
P (MAIN)
