5.1.2. CD mode
Select the CD mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button on
the remote control more than 3 seconds.
Memory data change
To exit the CD mode, press the R button on the remote control.
About the serial number display
As for the serial number of A-module for repair, a dummy value is displayed.
* By the set for which A-module was exchanged, a serial number is displayed as [-----].
About the history display of SOS for the power supply system
• This unit adds the history display (5 times) of power supply failure to the CD mode as PTCT.
• By the self check of a signal system, only one history is displayed (After a self check disappears). But PTCT displays 5 times of
histories (Abnormality of the latest 3 times, first time and second time after shipment) and after a self check does not disappear.
You can see a detailed history of power failure sometimes.

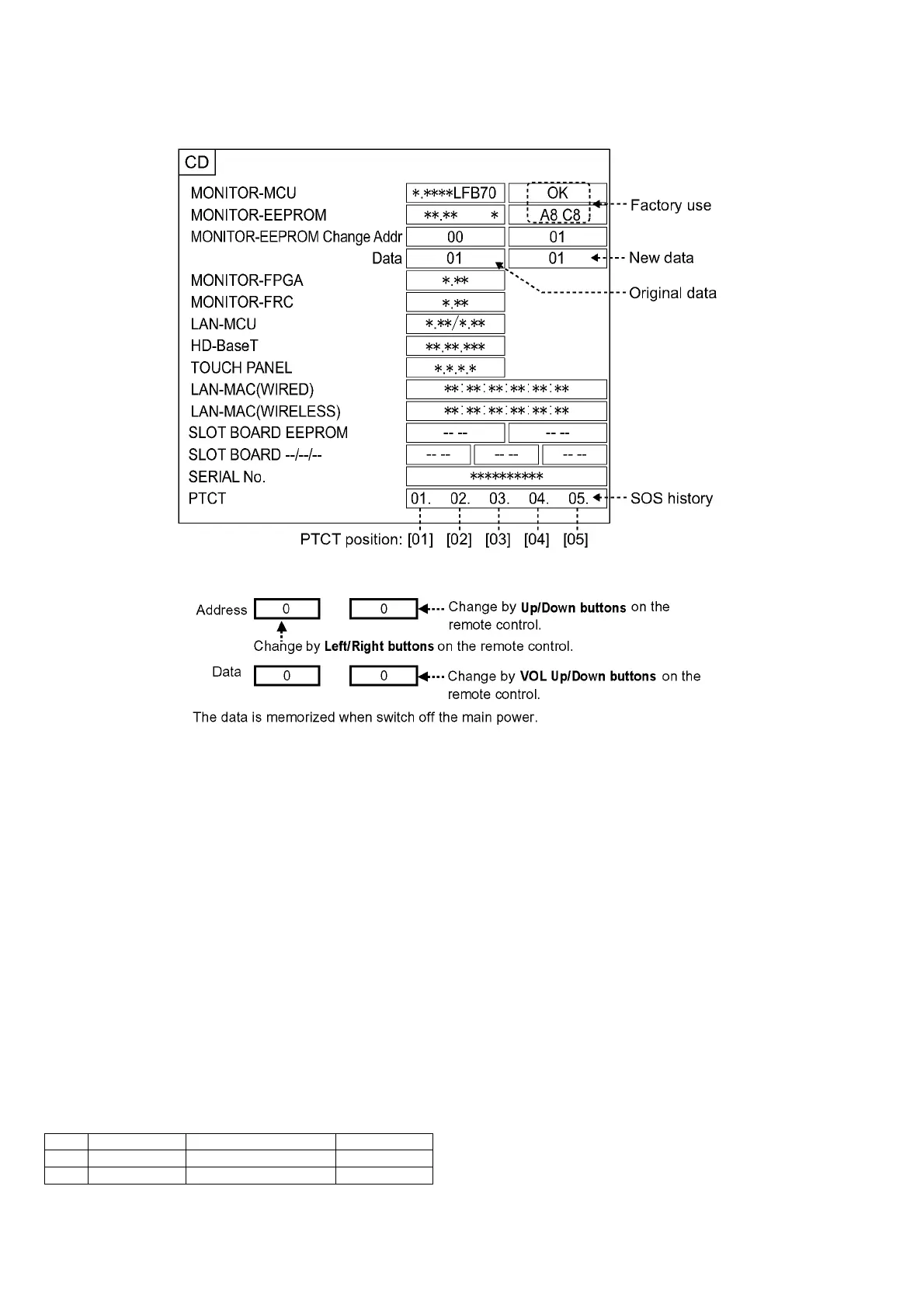

* About the display contents of PTCT
PTCT : The position of [05] is the first time after shipment.
PTCT : The position of [04] is the second time after shipment.
PTCT : The position of [03] is second from last time.
PTCT : The position of [02] is last time.
PTCT : The position of [01] is the latest.
In [Contents & Check point] of [6.1.2. Power LED Blinking timing chart], the two-digit following PTCT are displayed by a hexadeci-
mal number.
Blinking times Contents & Check point Display contents
ex.1 4 times PTCT 04 H 09 04
ex.2 8 times PTCT 08 H09 08
To Next Page
