43
TH-80LFB70E

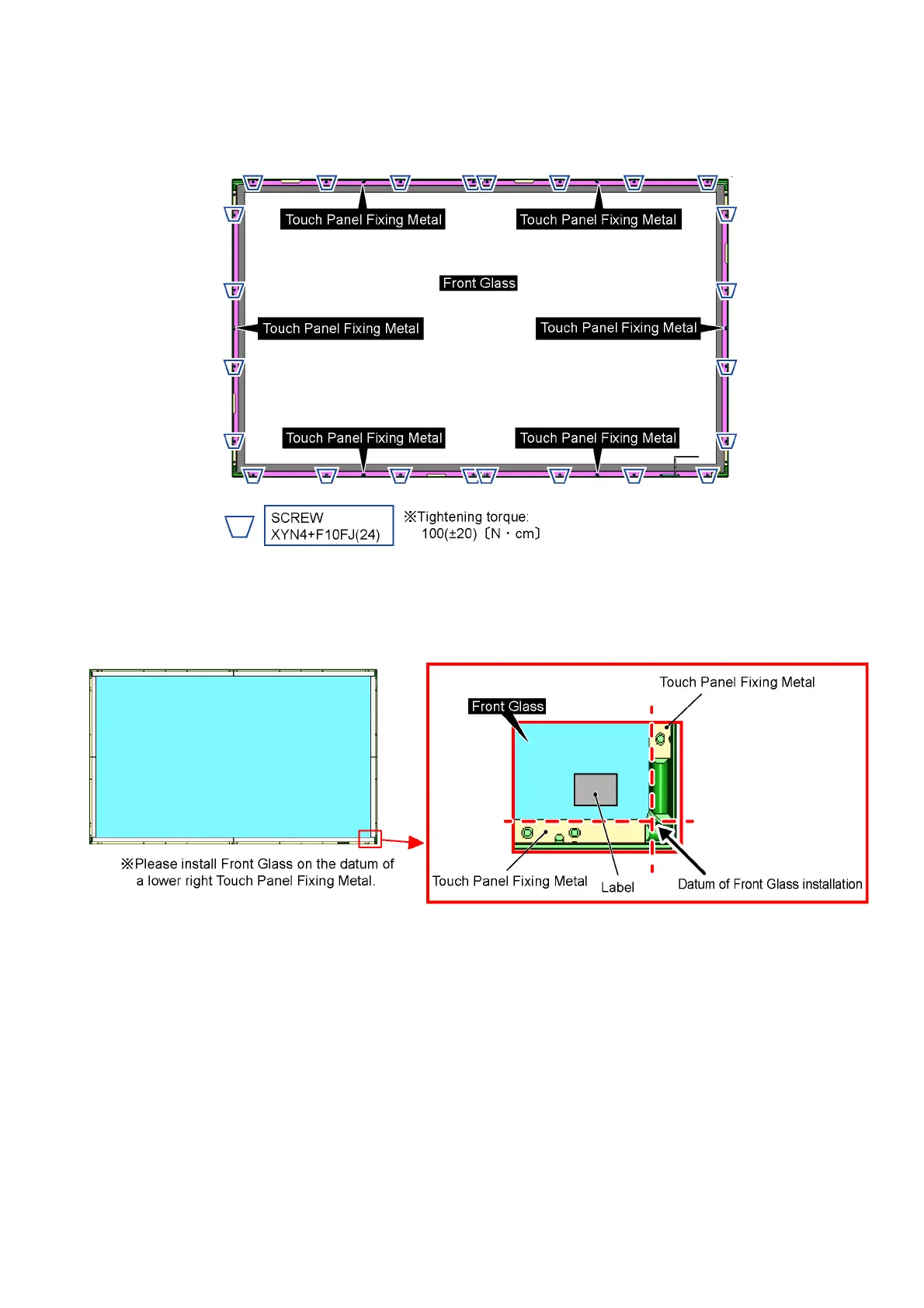

7.18. Replacement of Front Glass
1. Remove the LCD Panel from the Cabinet.
(Refer to steps 1 to 9 in “7.16. Replacement of LCD Panel”)
2. Remove the screws and remove the Touch Panel Fixing Metal and then remove the Front Glass from the Cabinet.
Attention when replacing Front Glass
• Please wipe with the soft dry cloth (cotton, flannel) lightly, and do work after checking that neither dust nor a fingerprint is
attached to glass.
• Please set Front Glass in the installation datum at the lower right of a Cabinet so that a label becomes the lower right.
To Next Page
