Panasonic TH-80LFB70E - Replacement of Touch Module

47
TH-80LFB70E
7.20. Replacement of Touch Module
1. Remove the LCD Panel from the Cabinet.
(Refer to steps 1 to 9 in “7.17. Replacement of LCD Panel”)
2. Remove the Front Glass from the Cabinet.
(Refer to step 2 in “7.18. Replacement of Front Glass”)

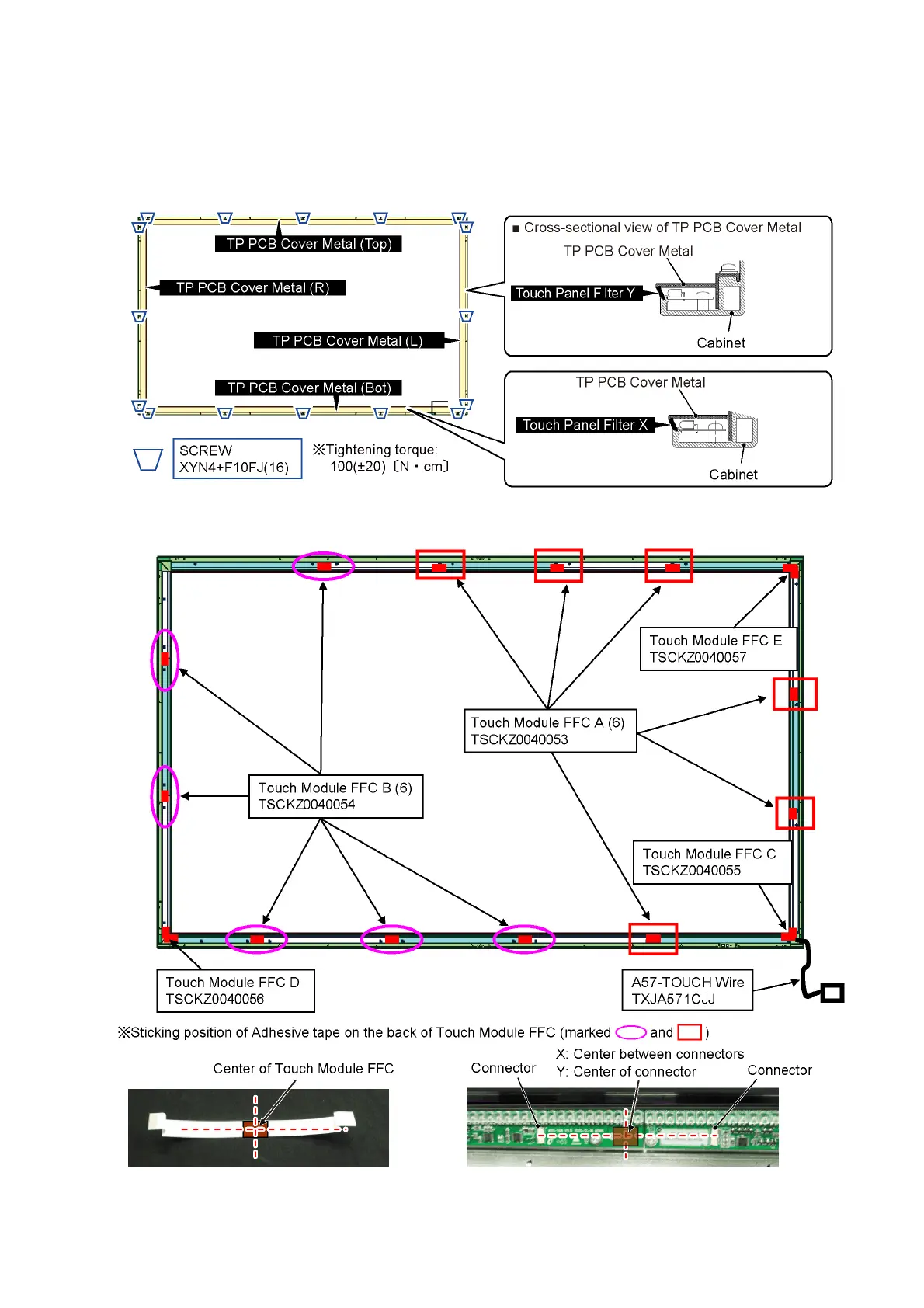

3. Remove the screws and then remove the TP PCB Cover Metal (Top, Bot, L, R) and Touch Panel Filter (X, Y).
4. Disconnect the connectors and remove the screws and then remove the Touch Module.
