Adjusting Pos. /Size

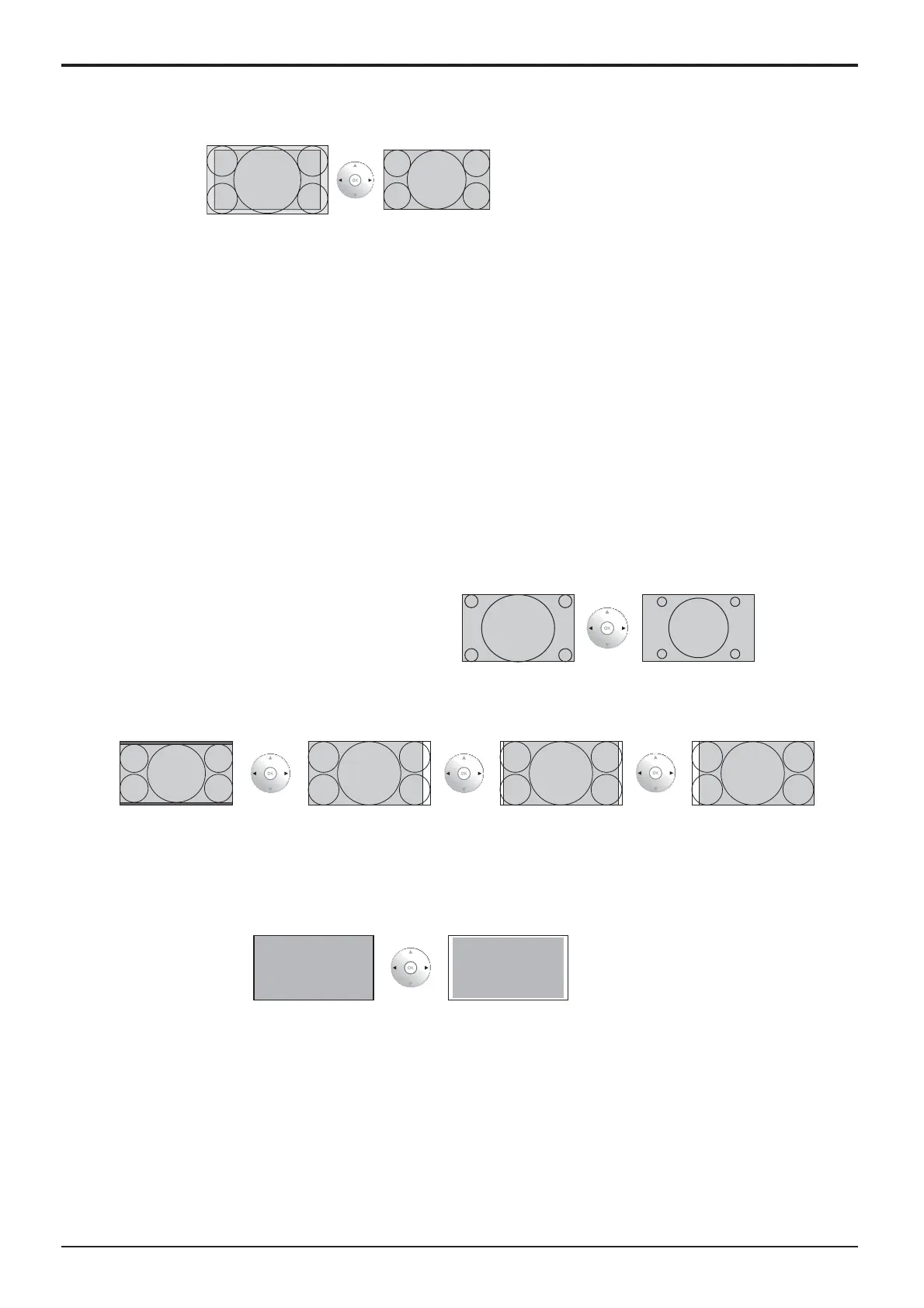

 1:1 Pixel Mode
Adjusts the display size when 1125i, 1125p or 1250i signal is input.
Notes:
• Select On when you would like to replay 1920 × 1080 input signal.
• Applicable input signal;
1125 (1080) / 50i · 60i · 24sF · 24p · 25p · 30p · 50p · 60p, 1250 (1080) / 50i
• Select Off when  ickering is shown around the image.
• H-Size and V-Size cannot be adjusted when On is selected.
Off On
 Clamp Position
(During Component and RGB input signal)
Adjusts the clamp position when black parts of the image have no detail due to underexposure
or are tinged with green.
Optimum value for Clamp Position adjustment
When black parts have no detail due to underexposure (blackout)
 Value that causes least blackout is the optimum.
When black parts are tinged with green
 Value that cancels the greenishness without causing blackout is the optimum.
 Over scan
Turn image over scan On/Off.
Con gurable signals are as follows:
525i, 525p, 625i, 625p, 750/60p, 750/50p (Component Video, RGB, DVI, SDI, HDMI)
On Off
Notes:
• When “Off” is set, “H-Size” and “V-Size” cannot be adjusted.
• When the “Under scan” is set to “On”, this setting will be invalid.
 1:1 Pixel Mode (2k1k)
(For 2k1k signals)
When the input signal is a 2k1k signal (2048 × 1080 / 24p, 2048 × 1080 / 24sF), the
display size is adjusted as follows.
Off On (Left) On (Center) On (Right)
Note:
2k1k signals can only be received when the Dual Link HD-SDI Terminal Board (TY-FB11DHD) is installed.
 Under scan
Adjusts the image display size on screen.
Off: Sets the normal image display size on screen.
On: Sets the image display size approximately 95 % of the normal image display.
Off On
Notes:
• “Under scan” can be modified when “Studio mode” in the Options menu is “On”. When
“Studio mode” is “Off”, this setting is “Off” and cannot be changed. (see page 53)
• This setting is valid only when the input signals are as follows;
525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p,
1125/24p, 1125/30p, 1125/60p, 1125/50p, 1250/50i (RGB, DVI, SDI, HDMI)
• When “Under scan” is set to “On”, “H-Pos” and “V-Pos” in “Pos. /Size” can be adjusted.
• Refer to each board’s operating instruction for DVI, SDI’s corresponding signals.
