7.4. Installation Panel and PCB

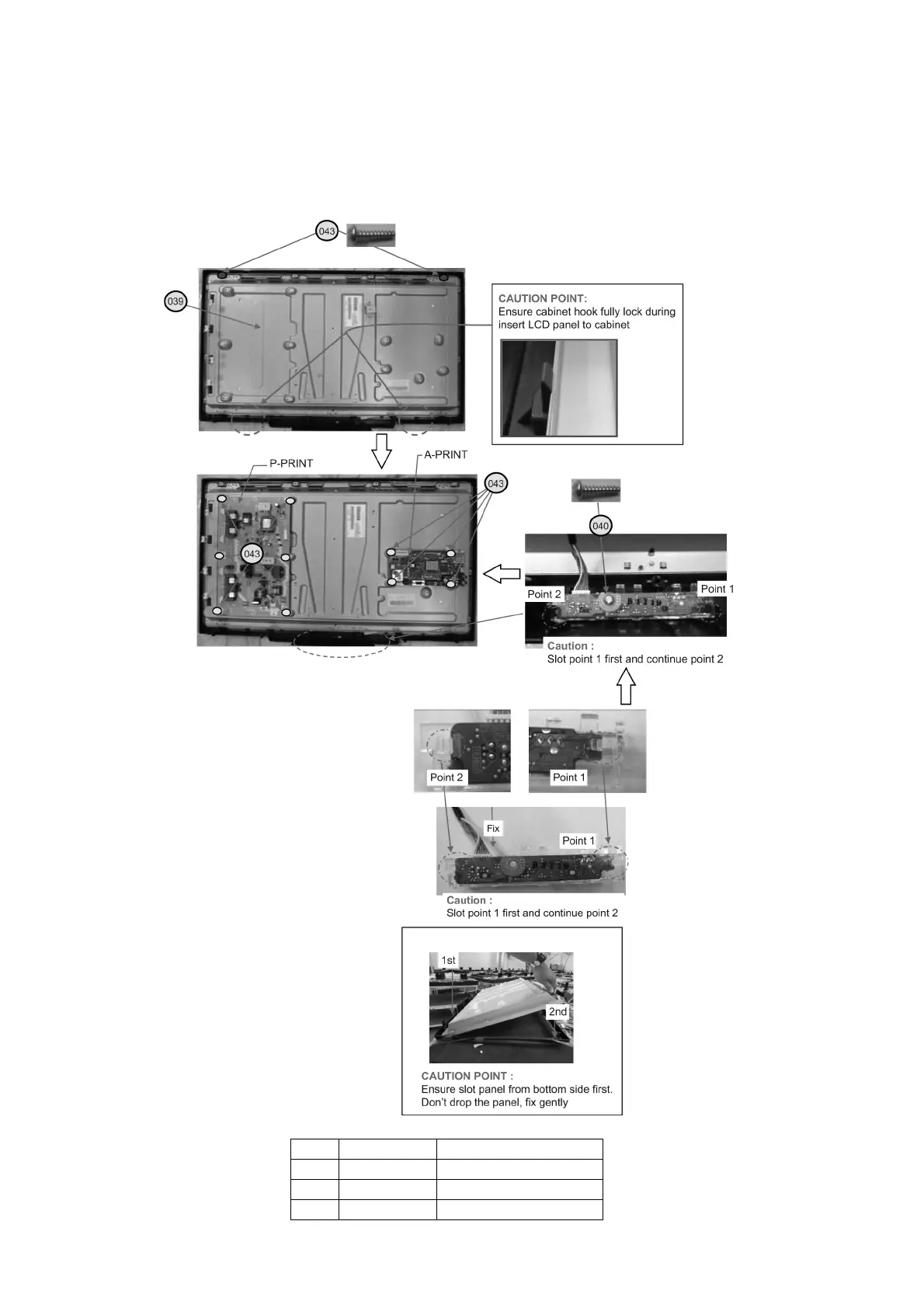

1. Fix LCD panel into cabinet and screw.
2. Fix PCB at Panel and screw.
3. Fix KA board at led panel.
4. Fix connector wire to KA board.
5. Fix Led panel at cabinet and screw.
No. Part no. Description
039 VVX32H121G00 LCD PANEL
040 XTV3+12JFJ SCREW(PANEL2/V1)
043 THEJ036J SCREW (A4/P6/VM2/BTM2)
