10 Wiring Connection Diagram
10.1. Wire Dressing 1

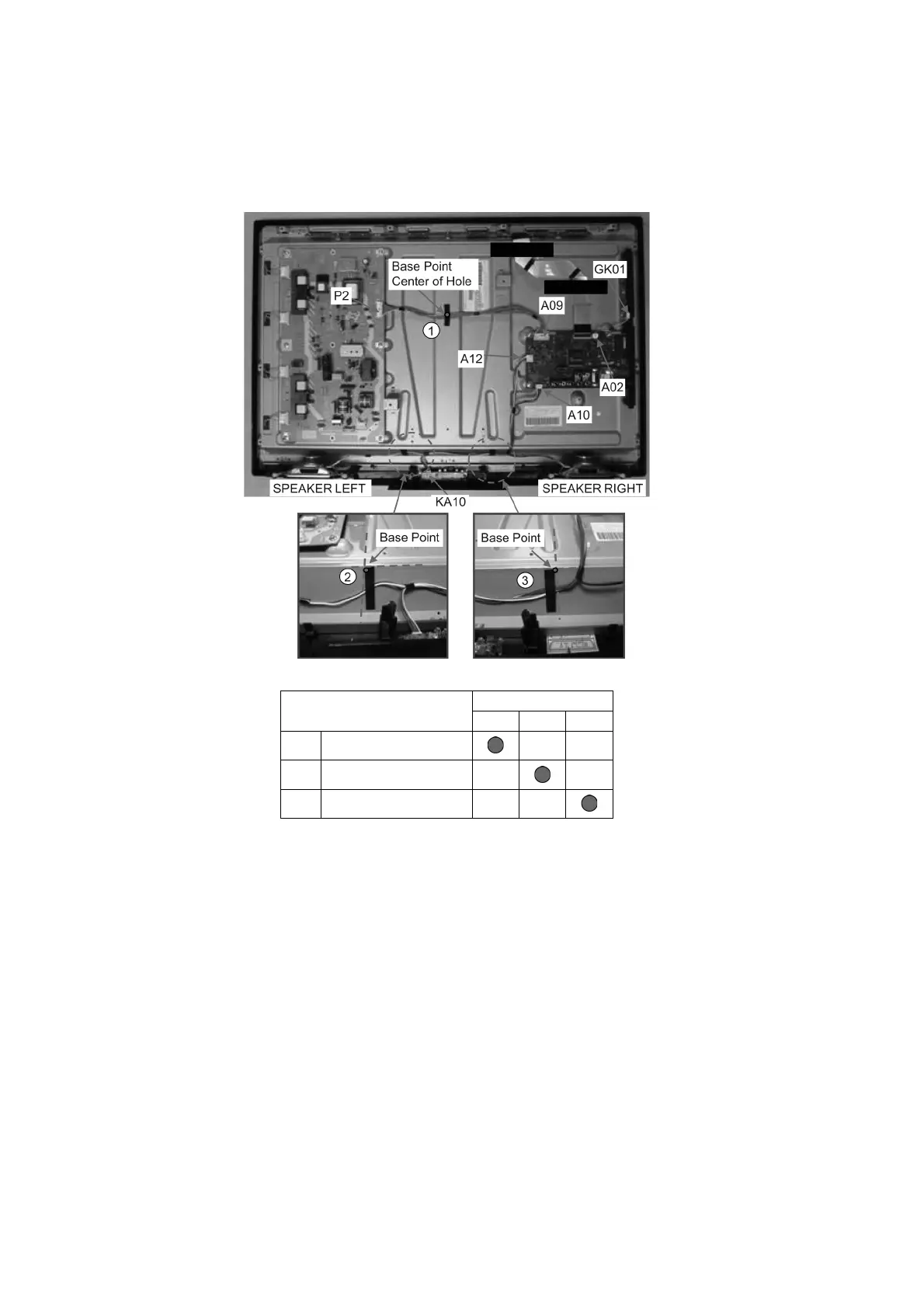

1. Fix all connector at PCB.
2. Stick felt at LCD panel for wire dressing.
Wire
Clamper
123
No.1 P2 ~ A09
No.2 A12 + A10 ~ Speaker Left
No.3 A12 + A10 ~ KA10
