Panasonic TX-28WG25 series

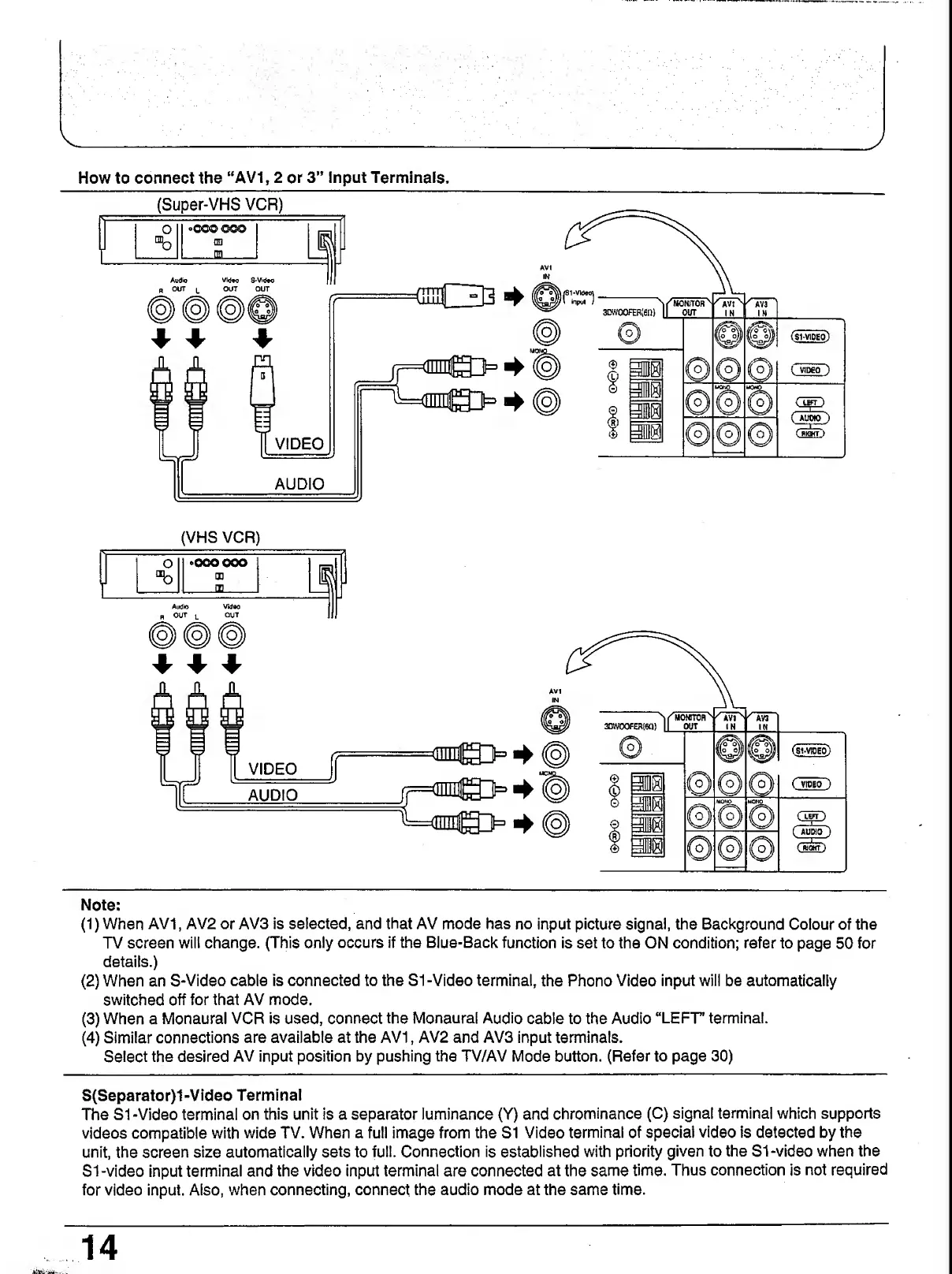

How to connect the “AV1,2 or 3” Input Terminals.
(Super-VHS VCR)
CW)
( Auino )
(Hl^)
(VMS VCR)
Note:
(1) When AV1, AV2 or AV3 is selected, and that AV mode has no input picture signal, the Background Colour of the
TV screen will change. (This only occurs if the Blue-Back function is set to the ON condition; refer to page 50 for
details.)
(2) When an S-Video cable is connected to the S1-Video terminal, the Phono Video input will be automatically
switched off for that AV mode.
(3) When a Monaural VCR is used, connect the Monaural Audio cable to the Audio “LEFT” terminal.
(4) Similar connections are available at the AV1, AV2 and AV3 input terminals.
Select the desired AV Input position by pushing the TV/AV Mode button. (Refer to page 30)
S(Separator)1'Video Terminal
The S1-Video terminal on this unit is a separator luminance (Y) and chrominance (C) signal terminal which supports
videos compatible with wide TV. When a full image from the S1 Video terminal of special video is detected by the
unit, the screen size automatically sets to full. Connection is established with priority given to the S1-video when the
S1-video input terminal and the video input terminal are connected at the same time. Thus connection is not required
for video input. Also, when connecting, connect the audio mode at the same time.
14
