Panasonic TX-32LE7FA - Service Hints

Service Hints

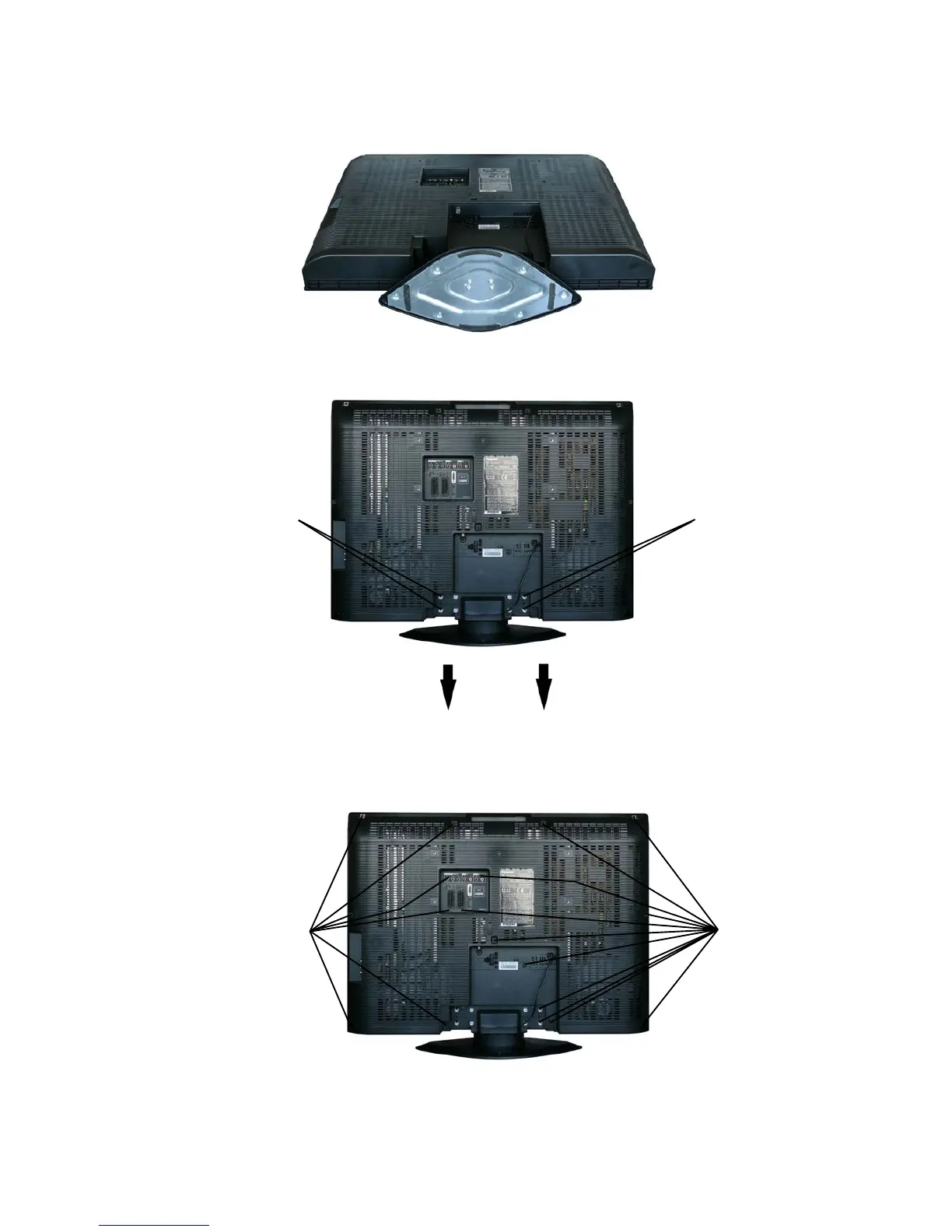

How to remove the Pedestal assembly
Lay the main unit face down. (see Fig.5)
Remove the 4 fixing screws and the pedestal assembly. (see Fig.6)
How to remove the backcover
Remove the 16 [14] fixing screws. (see Fig.7)
Fig.5
Fig.6
SCREWS
SCREWS
Fig.7
6
SCREWS
SCREWS
