Panasonic TX-32LE7FA - Chassis Board Layout; Location of Lead Wiring

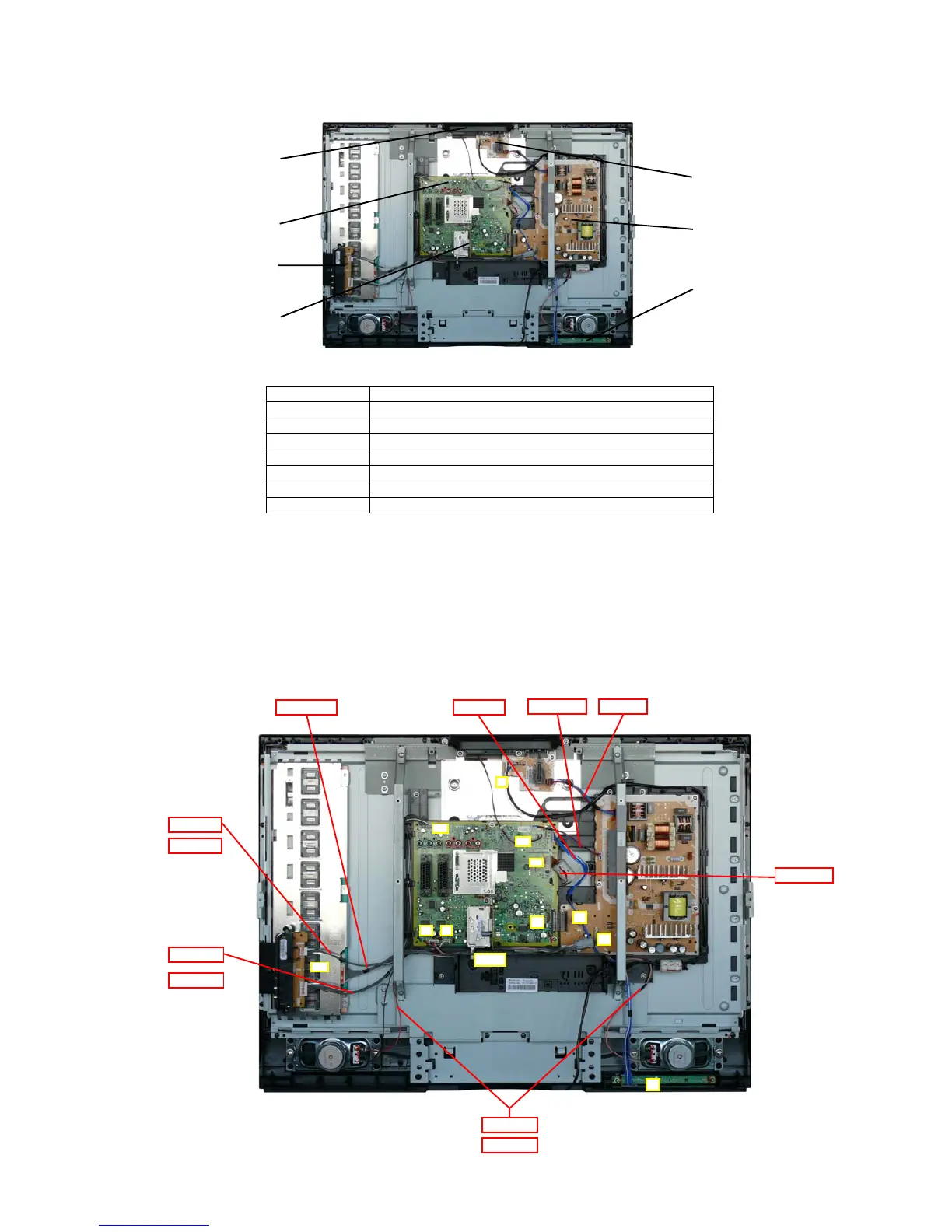

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box
Board Name Function
A-Board Main Board
B-Board Tuner
H-Board AV3 Terminal
Key Control Key Control
K-Board Mains Input, Power Switch
P-Board Power Supply
V-Board Remote Receiver, LED IR, Bats
P-BOARD
V-BOARD
K-BOARD
A-BOARD
B-BOARD
KEY CONTROL
H-BOARD
