23

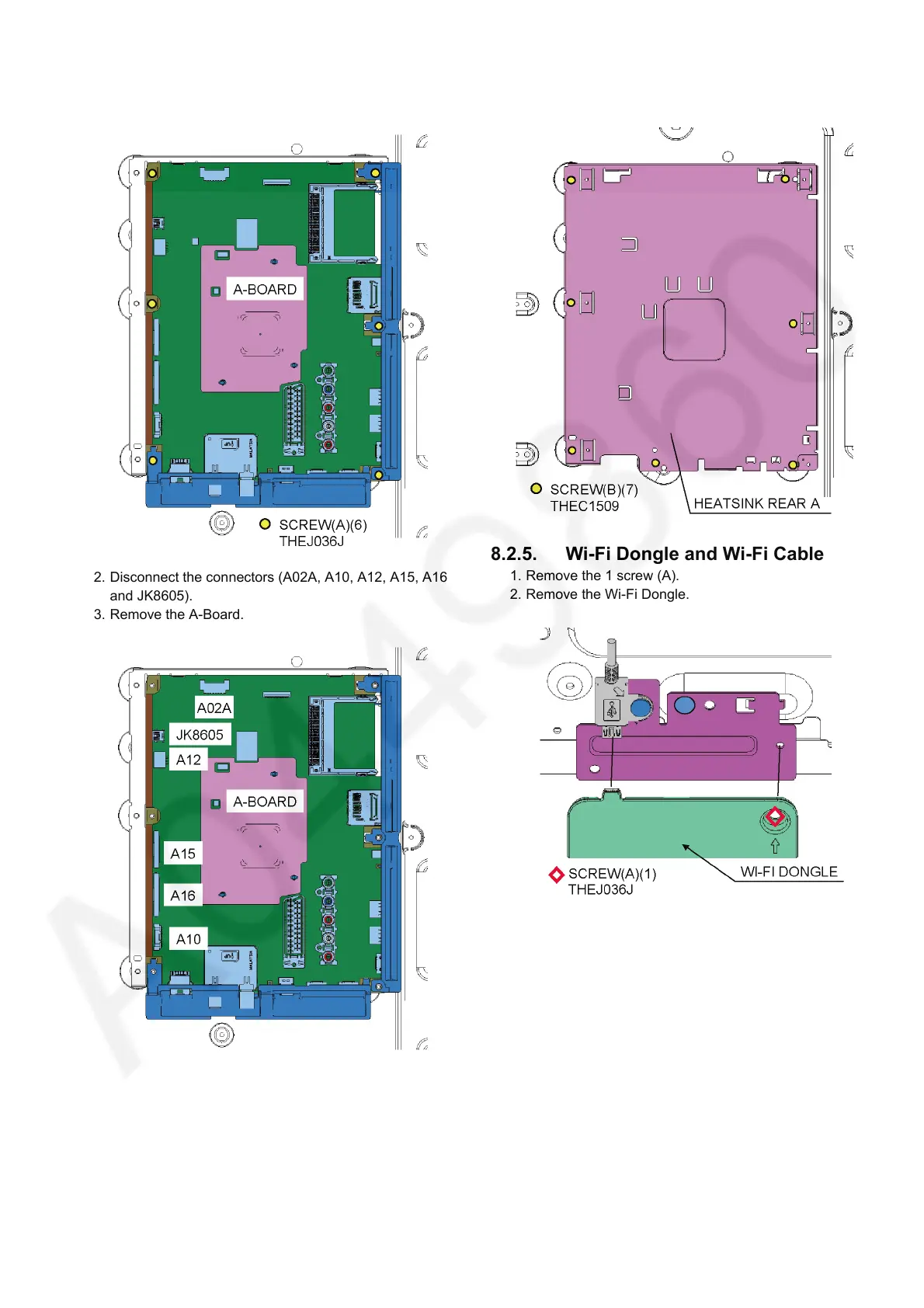

8.2.4. A-Board
1. Remove the 6 screws (A).
2. Disconnect the connectors (A02A, A10, A12, A15, A16
and JK8605).
3. Remove the A-Board.
4. Remove the 7 screws (B).
5. Remove the Heatsink Rear A.
8.2.5. Wi-Fi Dongle and Wi-Fi Cable
1. Remove the 1 screw (A).
2. Remove the Wi-Fi Dongle.
