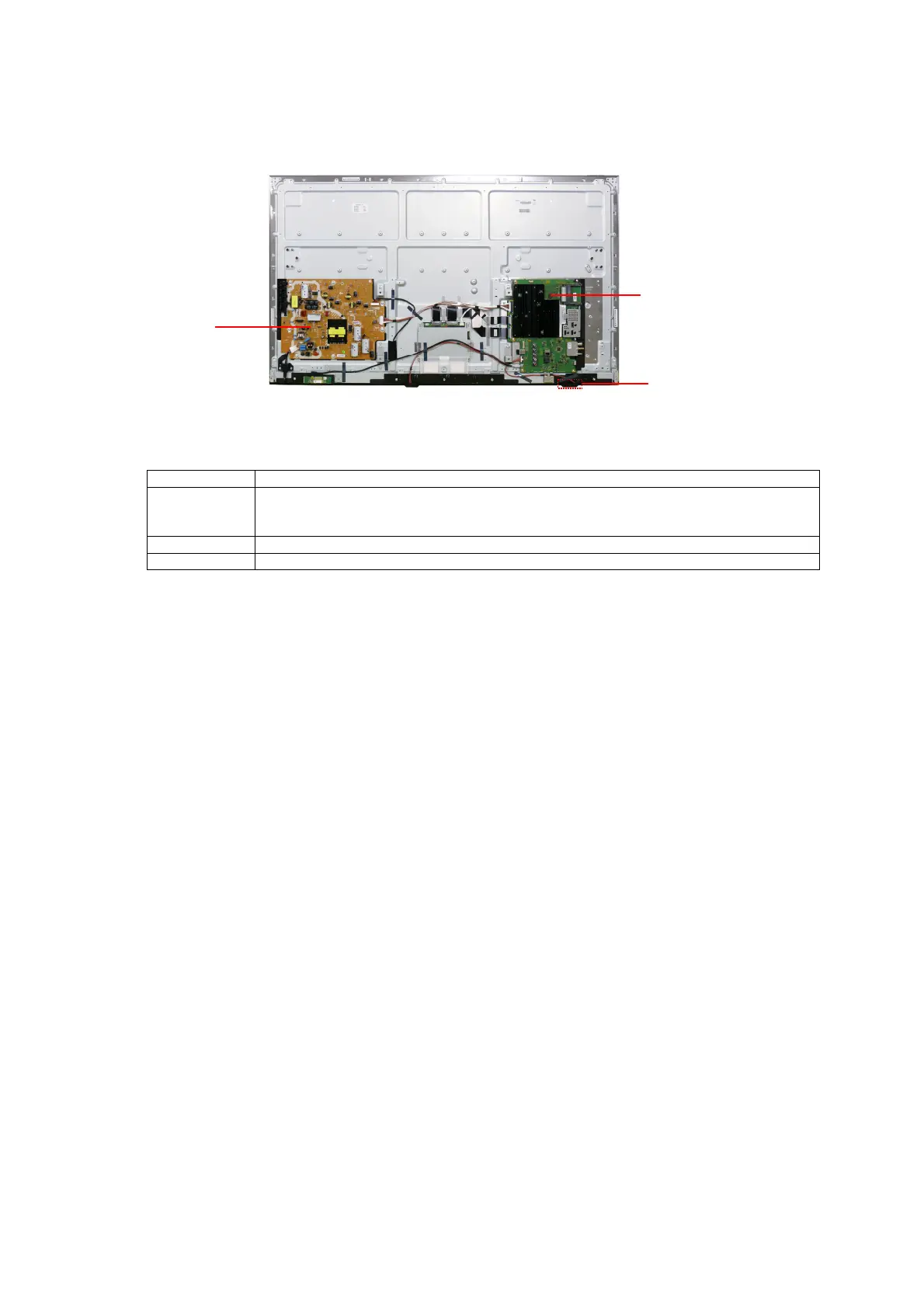

Chassis Board Layout
Board Name Function
A-Board AV Terminal, HDMI, USB, WIFI, BT, Ethernet, Digital Audio Out,
CI Slot x 2, DUAL TUNER A/DVB-T/T2/C/S , DVB-T2/T/C/S2/S Dem, Peaks IC_MTK,
Speaker out, Woofer out, HP, eMMc Memory, DDR SDRAM, FRC(MSTAR)
P-Board Main Input, Power Supply, Key control, Power switch, LED Driver
K-Board Remote Receiver, Power and Timer LED, C.A.T.S
A-BOARD
K-BOARD
P-BOARD
