Service Hints
How to remove the pedestal assembly
Remove the Rear Cover R and Rear Cover L. (see Fig.4)
Remove the 6 fixing screws. (see Fig.5)
Lift up the TV from the pedestal as show. (see Fig.6)
Tilt the TV backwards
Lift up the TV

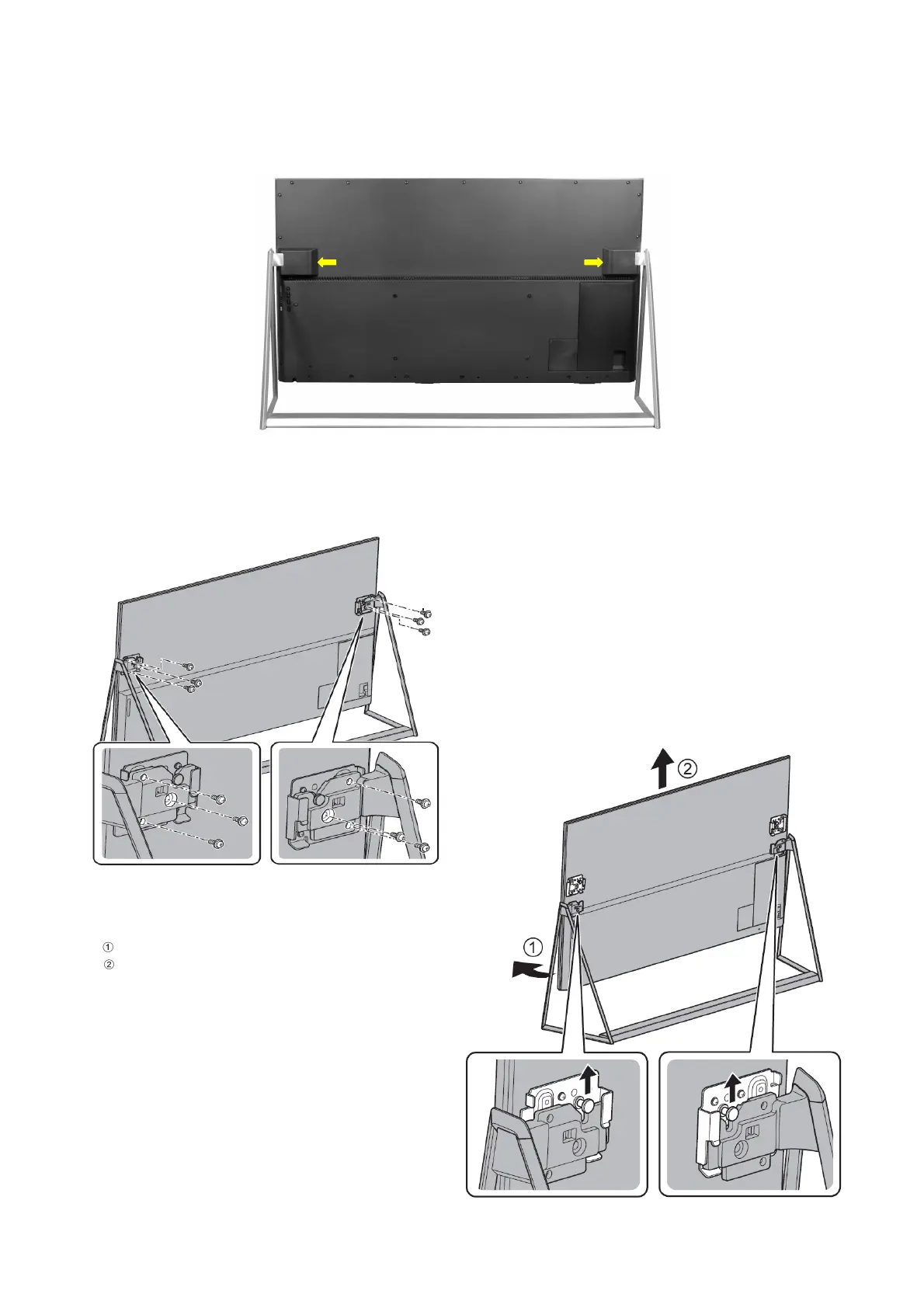

Fig.4
Fig.5
SCREWS
THE5ZL002N /6pcs/
Fig.6
