Panasonic TX-L32C2E - Power Led Blinking Timing Chart

4 sec
Once

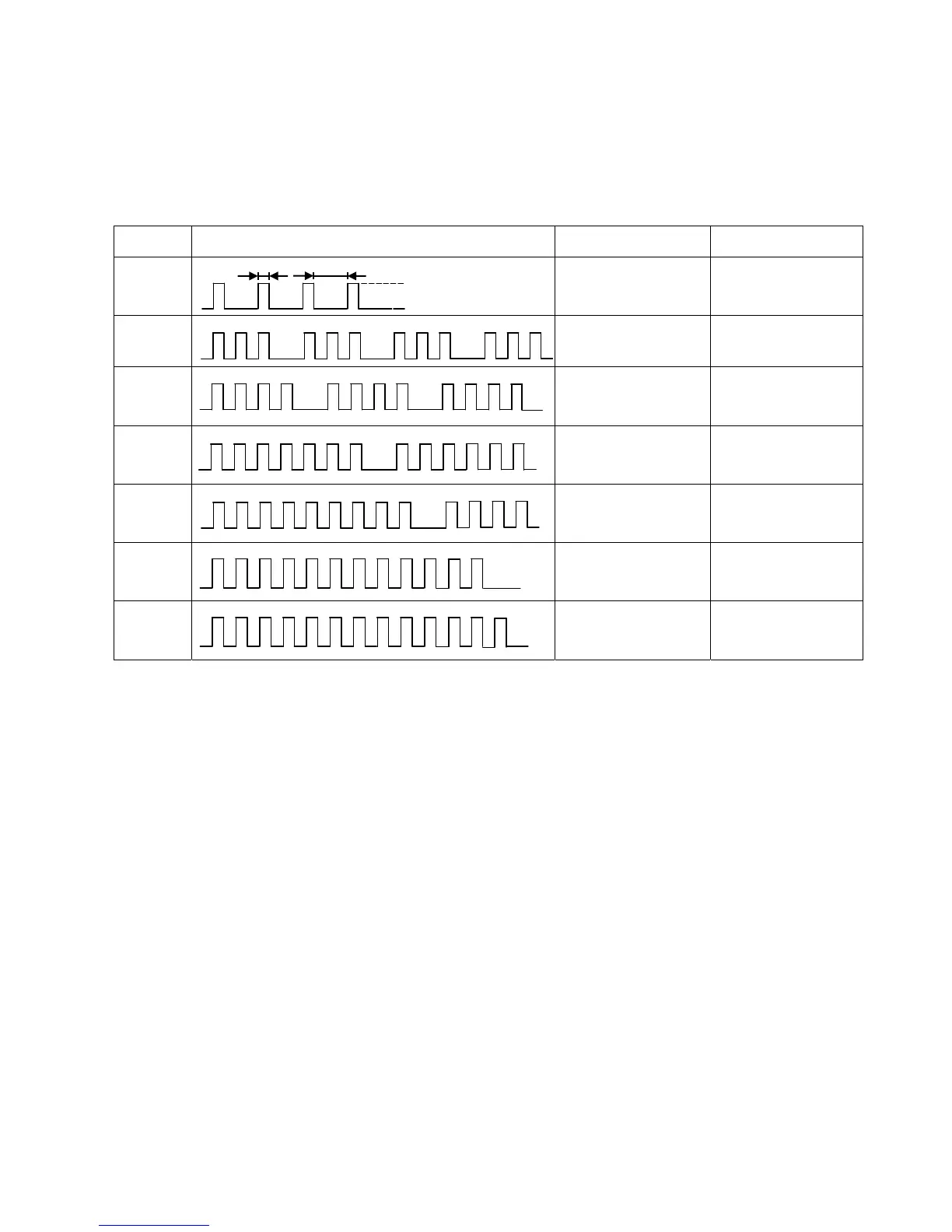

Power LED blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by number of blinking of the Power LED on the front panel of the unit.
Blinking
times
Blinking timing Contents Check point
1 BL_SOS
A BOARD
P UNIT
3 SOS A BOARD
4 SUB12V_SENSE_SOS
A BOARD
P UNIT
7 SUB3.3V_SENSE_SOS
A BOARD
9 SOUND_SOS
A BOARD
P UNIT
12 BE(sLD)SOS A BOARD
13 EMERGENCY A BOARD
13
No Light
Light
