Panasonic TX-L32C2E - Chassis Board Layout; Location of Lead Wiring

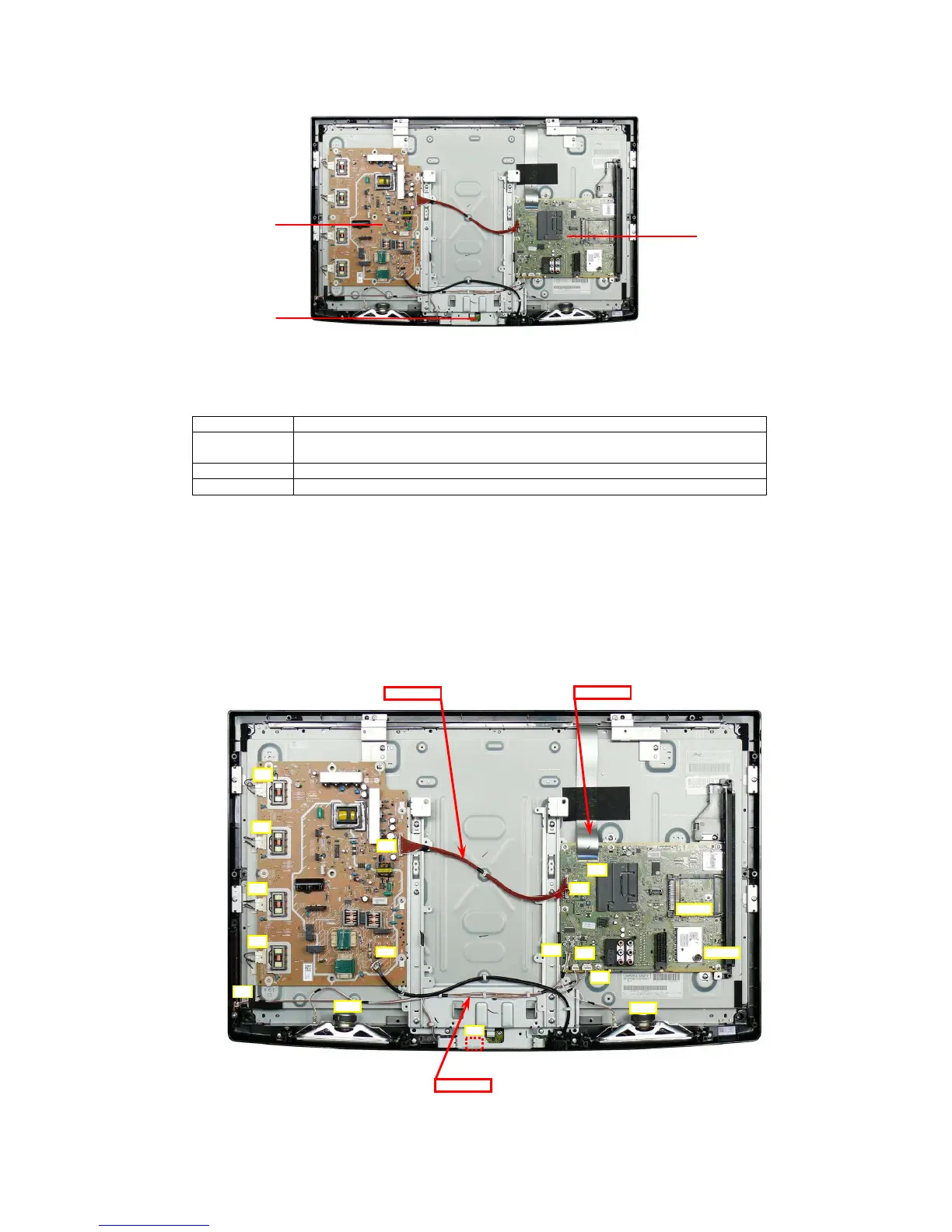

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
9
Board Name Function
A-Board AV Terminal, HDMI, Digital Audio Out, TV tuner, SD Card, DVB-T/C Dem,
sLD, AV Switch, EEPROM, Flash Memory, Speaker out, HP
V-Board Remote Receiver, Power and Timer LED
P-Unit Main Input, Power Supply
P-UNIT
V-BOARD
A-BOARD
A02
SP_L
V10
S01
A10
P1
TU2901A
A12
A09
P2
A14
SP_R
CN0100
P3
P4
P5
P6
LVDS WIRE
A09-P2 WIRE
WIRE ASSY
