Panasonic TX-L42D25B - Chassis Board Layout

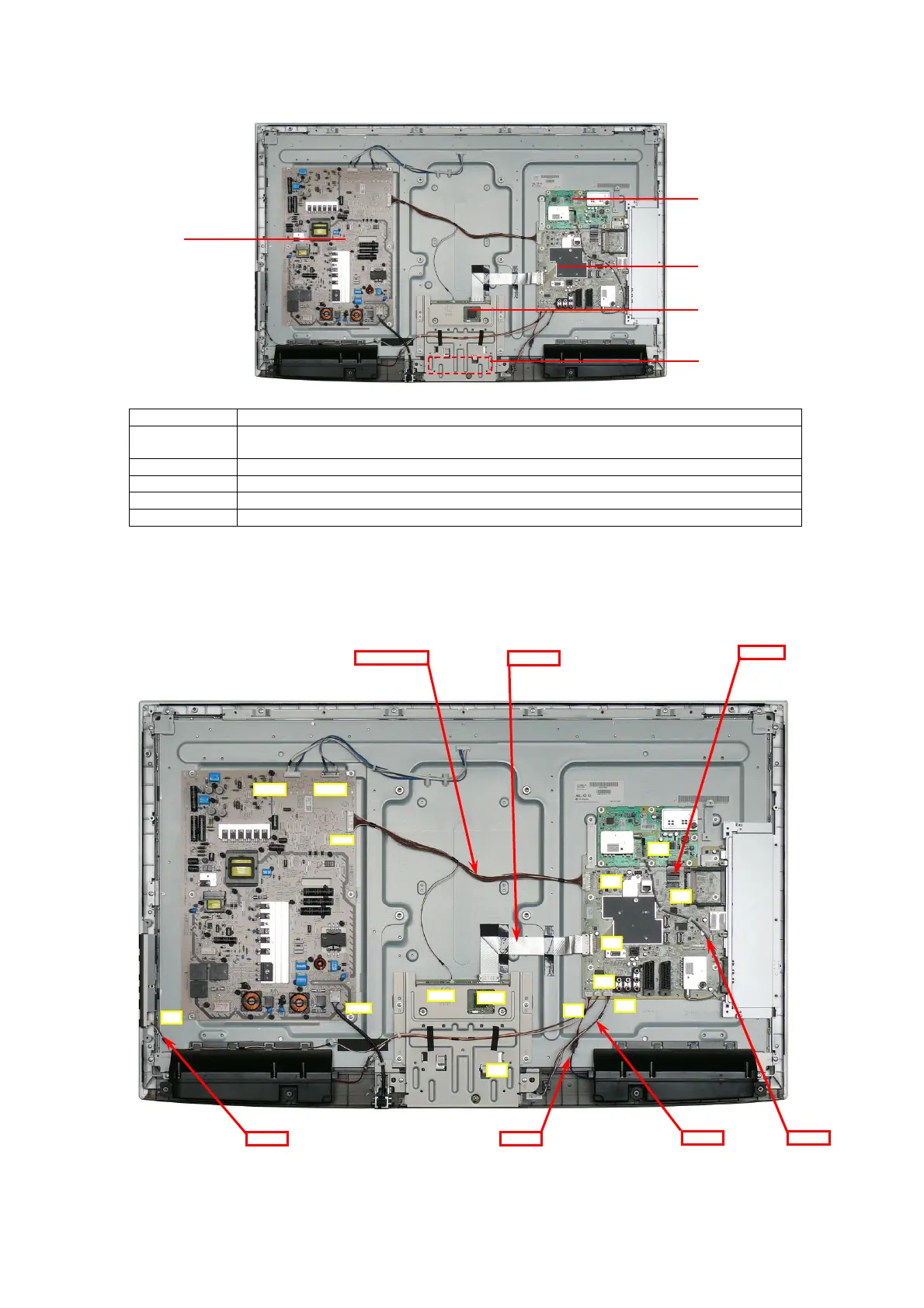

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
A-BOARD
AV Terminal, HDMI, AV Switch, Sound Processor, Tuner DVB-T/C
PC, LAN, OPT Terminal, GENX, EEPROM, ADV, Speaker out,USB slot
V-BOARD Remote Receiver, R&G LED, Timer Rec LED, C.A.T.S.
P-UNIT Power Supply,Main Input
XW-BOARD Tuner DVB-T2 + DVB+S/S2
TC-BOARD Panel Driver
9
P-UNIT
XW -BOARD
A-BOARD
V-BOARD
TC-BOARD
CN01 CN02
CN03
TC06
A09
A15
TC05
K01
A10
V10
A02
CNAC
A12
A09-CN03-TC06
A02-K01
A10-V10
A12-SP
A88
XW2
A88-XW2
TUN-TUN
A15 – TC05
