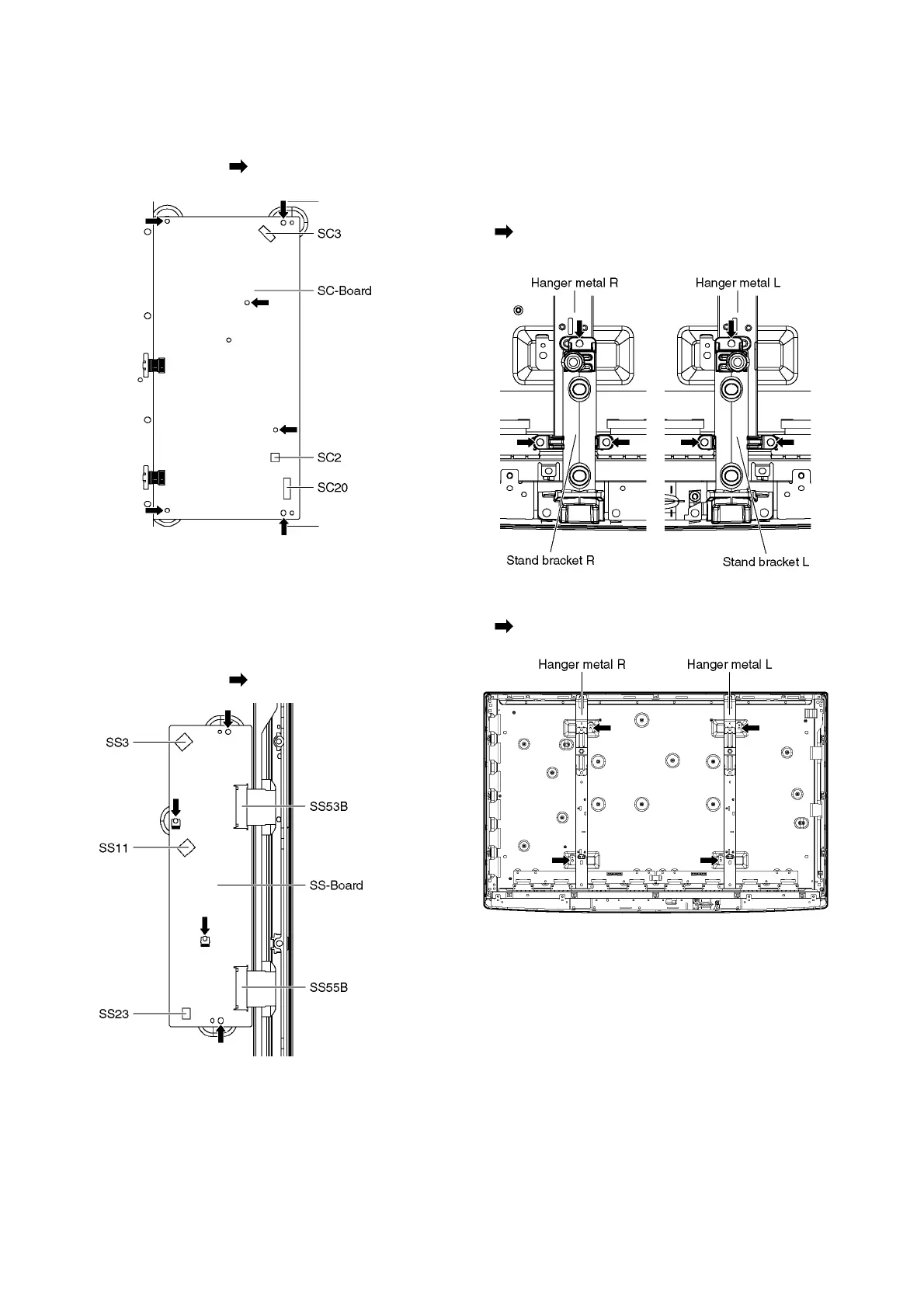

9.9. Remove the SC-Board
1. Remove the SM-Board. (See section 9.8.)
2. Disconnect the connectors (SC2 and SC3).
3. Disconnect the flexible cable (SC20).
4. Remove the screws (×6 ) and remove the SC-Board.
9.10. Remove the SS-Board
1. Remove the Tuner unit. (See section 9.5.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (SS3, SS11 and SS23).
4. Disconnect the flexible cables (SS53B and SS55B).
5. Remove the screws (×4 ) and remove the SS-Board.
9.11. Remove the Hanger metals and
the Stand brackets
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Remove the Stand brackets (L, R) fastening screws (×3
each) and the Stand brackets (L, R).
3. Remove the Hanger metals (L, R) fastening screws (×2
each) and remove the Hanger metals (L, R).
