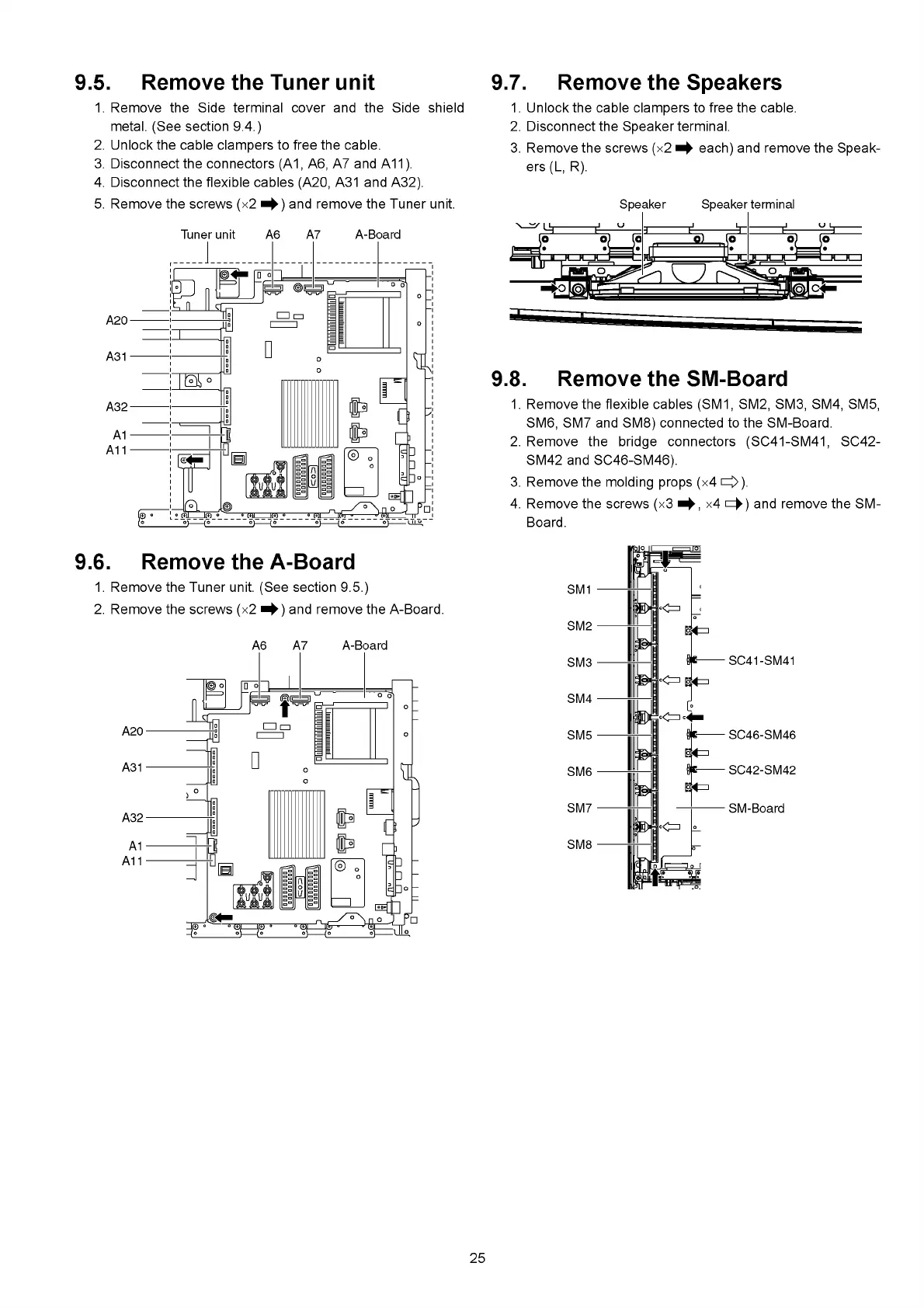

9.5. Remove the Tuner unit
1. Remove the Side terminal cover and the Side shield
metal. (See section 9.4.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (A1, A6, A7 and A11).
4. Disconnect the flexible cables (A20, A31 and A32).
5. Remove the screws (x2 and remove the Tuner unit.
Tuner unit A6 A7 A-Board
9.6. Remove the A-Board
1. Remove the Tuner unit. (See section 9.5.)
2. Remove the screws (x2 and remove the A-Board.
A6 A7 A-Board
A20
A31
A32
A1
A11
9.7. Remove the Speakers
1. Unlock the cable clampers to free the cable.
2. Disconnect the Speaker terminal.
3. Remove the screws (x2 ^ each) and remove the Speak
ers (L, R).
Speaker Speaker terminal
9.8. Remove the SM-Board
1. Remove the flexible cables (SM1, SM2, SM3, SM4, SM5,
SM6, SM7 and SM8) connected to the SM-Board.
2. Remove the bridge connectors (SC41-SM41, SC42-
SM42 and SC46-SM46).
3. Remove the molding props (x4 O ).
4. Remove the screws (хЗ x4 сф) and remove the SM-
Board.
SC41-SM41
SC46-SM46
SC42-SM42
SM-Board
SM1
SM2
SM3
SM4
SM5
SM6
SM7
SM8
