8 Disassembly and Assembly Instructions
8.1. Remove the Rear cover
1. See PCB Layout (Section 3)

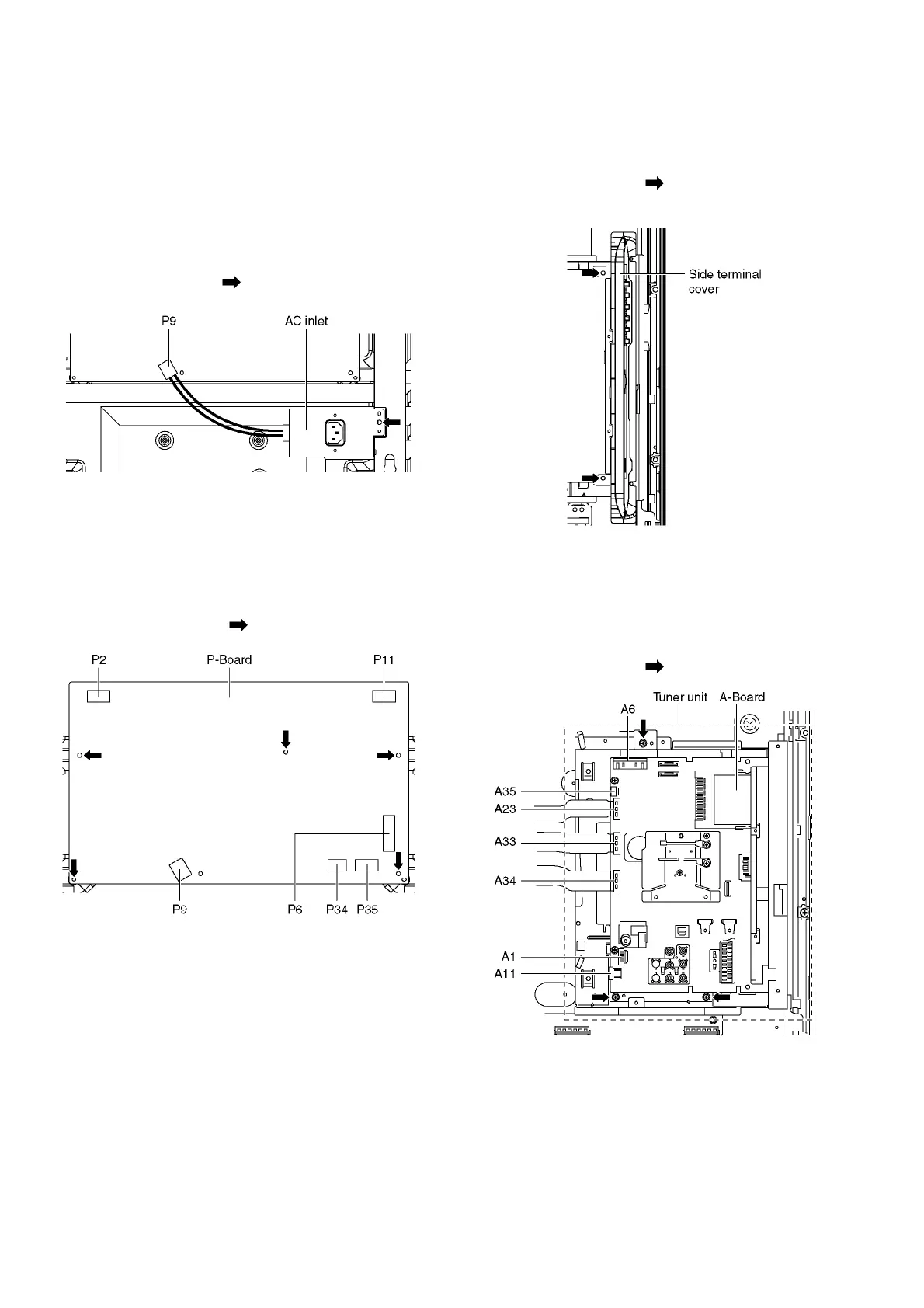

8.2. Remove the AC inlet
Caution:
To remove P.C.B. wait 1 minute after power was off for dis-
charge from electrolysis capacitors.
1. Disconnect the connector (P9).
2. Remove the screw (×1 ) and remove the AC inlet.
8.3. Remove the P-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for dis-
charge from electrolysis capacitors.
1. Disconnect the connectors (P2, P6, P9, P11, P34 and
P35).
2. Remove the screws (×5 ) and remove the P-Board.
8.4. Remove the Side terminal
cover
1. Remove the screws (×2 ).
2. Remove the Side terminal cover.
8.5. Remove the Tuner unit
1. Remove the Side terminal cover. (See section 8.4.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (A1, A6, A11 and A35).
4. Disconnect the flexible cables (A23, A33 and A34).
5. Remove the screws (×3 ) and remove the Tuner unit.
