Panasonic TX-P50C3E - Remove the A-Board; Remove the Speakers; Remove the SN-Board; Remove the SS-Board

23

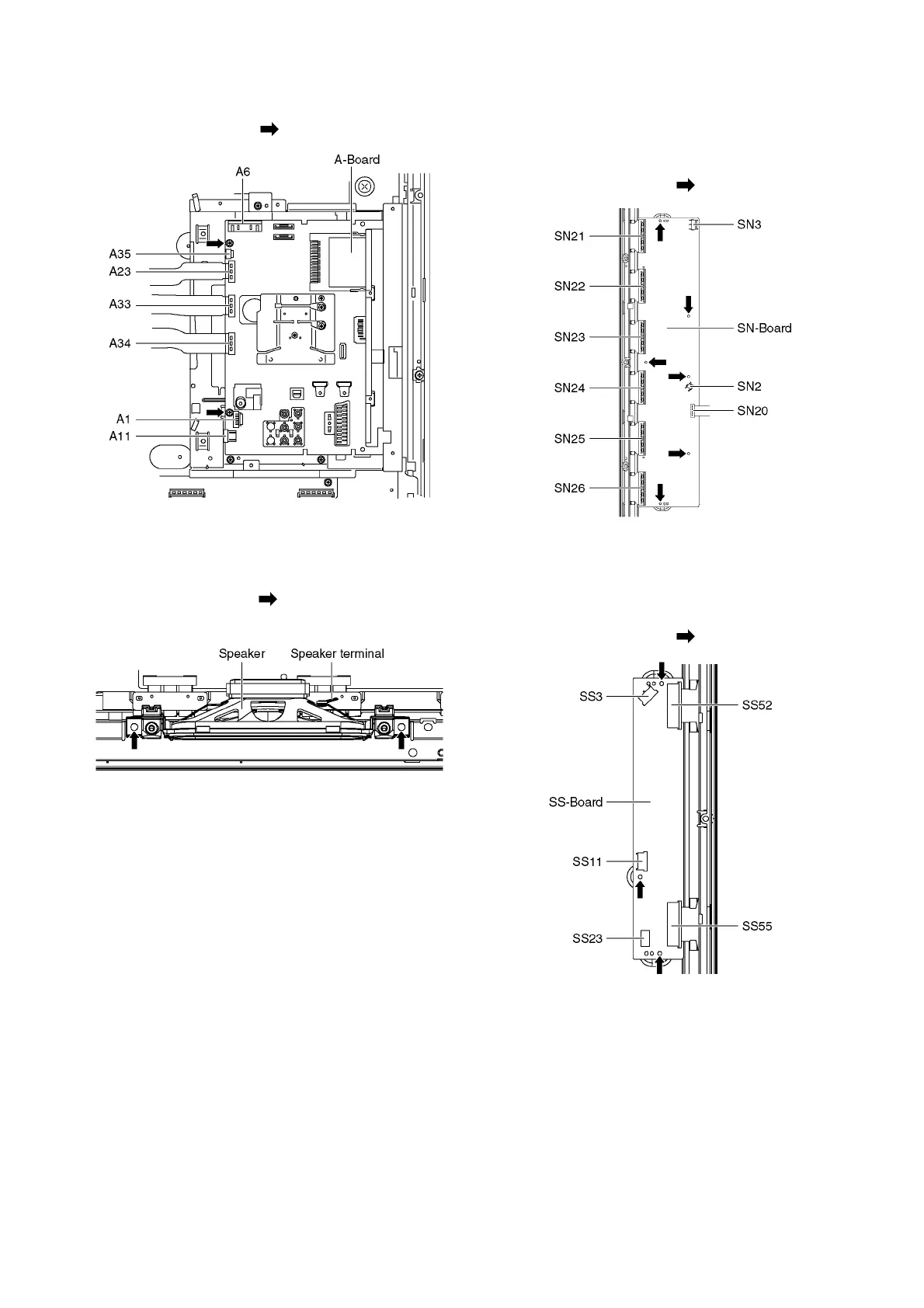

8.6. Remove the A-Board
1. Remove the Tuner unit. (See section 8.5.)
2. Remove the screws (×2 ) and remove the A-Board.
8.7. Remove the Speakers
1. Unlock the cable clampers to free the cable.
2. Disconnect the Speaker terminal.
3. Remove the screws (×2 each) and remove the Speak-
ers (L, R).
8.8. Remove the SN-Board
1. Disconnect the flexible cables (SN21, SN22, SN23,
SN24, SN25 and SN26) connected to the SN-Board.
2. Disconnect the connectors (SN2 and SN3).
3. Disconnect the flexible cable (SN20).
4. Remove the screws (×6 ) and remove the SN-Board.
8.9. Remove the SS-Board
1. Remove the Tuner unit. (See section 8.5.)
2. Disconnect the connectors (SS3 and SS11).
3. Disconnect the flexible cables (SS23, SS52 and SS55).
4. Remove the screws (×3 ) and remove the SS-Board.
