24

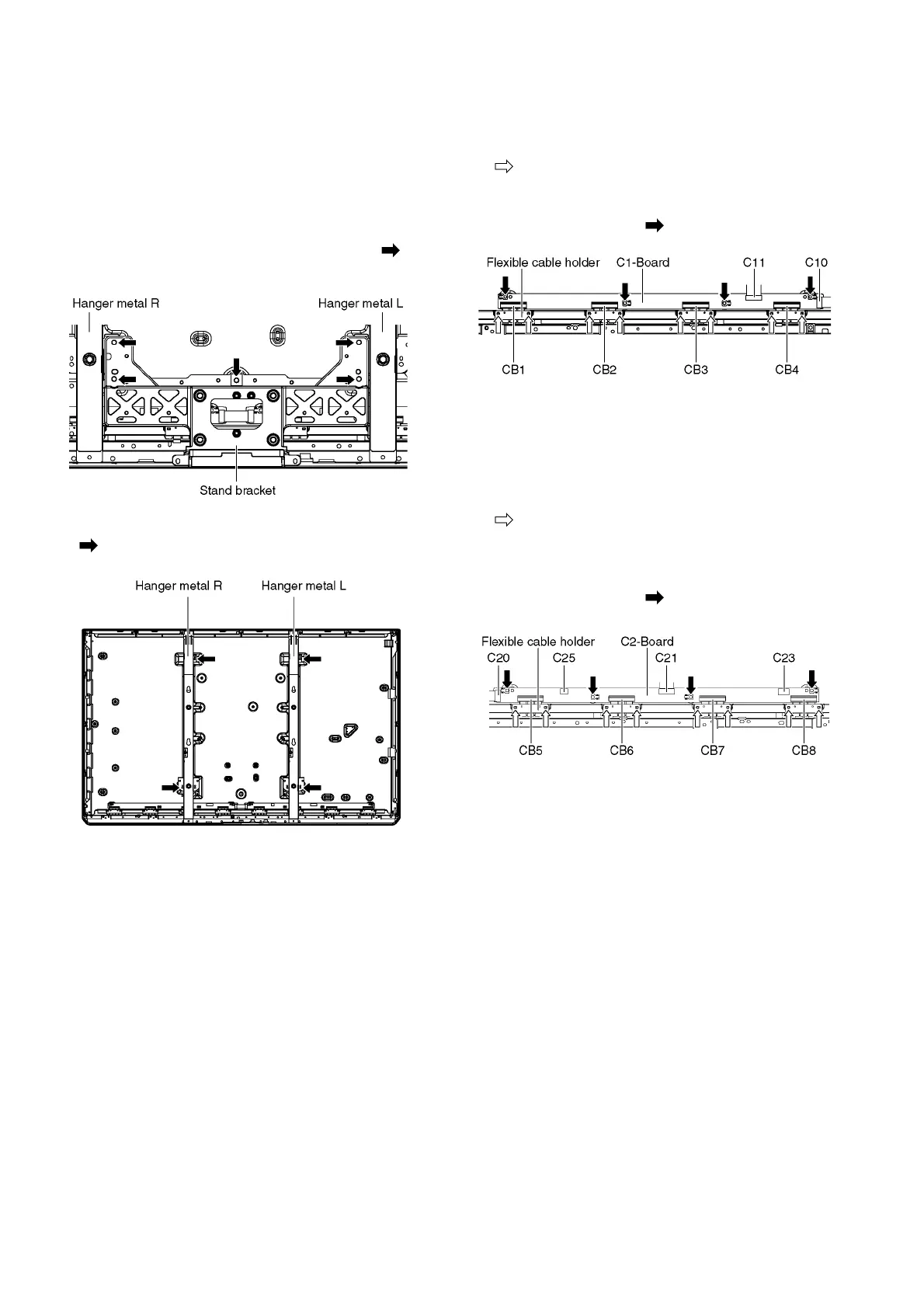

8.10. Remove the Stand bracket and
the Hanger metals
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Unlock the cable clampers to free the cable.
3. Remove the AC inlet. (See section 8.2.)
4. Remove the Stand bracket fastening screws (×5 ) and
remove the Stand bracket.
5. Remove the Hanger metals (L, R) fastening screws (×2
each) and remove the Hanger metals (L, R).
8.11. Remove the C1-Board
1. Remove the Hanger metal R and the Stand bracket. (See
section 8.10.)
2. Remove the Flexible cable holder fastening screws (×8
).
3. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).
4. Disconnect the flexible cables (C10 and C11).
5. Remove the screws (×4 ) and remove the C1-Board.
8.12. Remove the C2-Board
1. Remove the Tuner unit. (See section 8.5.)
2. Remove the Hanger metal L and the Stand bracket. (See
section 8.10.)
3. Remove the Flexible cable holder fastening screws (×8
).
4. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).
5. Disconnect the flexible cables (C20, C21 and C23).
6. Disconnect the connector (C25).
7. Remove the screws (×4 ) and remove the C2-Board.
