Panasonic TX-P65VT60E - Page 28

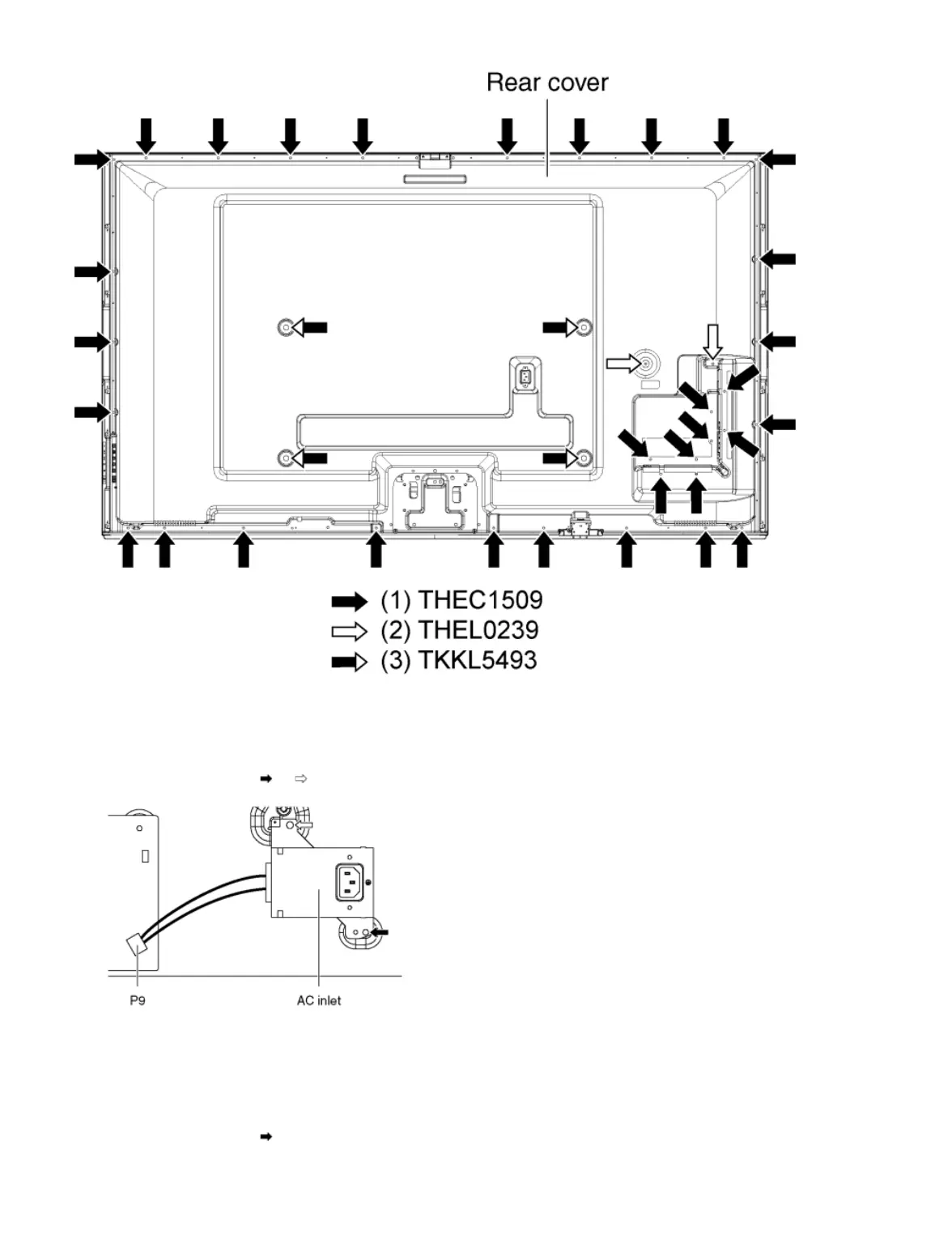

9.2.8 Remove the AC inlet
Caution:
To remove AC inlet wait 1 minute after power was off for discharge from electrolysis capacitors.
1. Disconnect the connector (P9).
2. Remove the screws (×1 , ×1 ) and remove the AC inlet.
9.2.9 Remove the P(MAIN)-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.
1. Unlock the cable clampers and the tapes to free the cables
2. Disconnect the connectors (P2, P6, P11, P35, P52, P56 and P58).
3. Remove the screws (×6 ) and remove the P(MAIN)-Board.
