Panasonic TX-PR42C2 - Remove the S-Board; Remove the Plasma Panel Section from the Cabinet Assy (Glass)

26

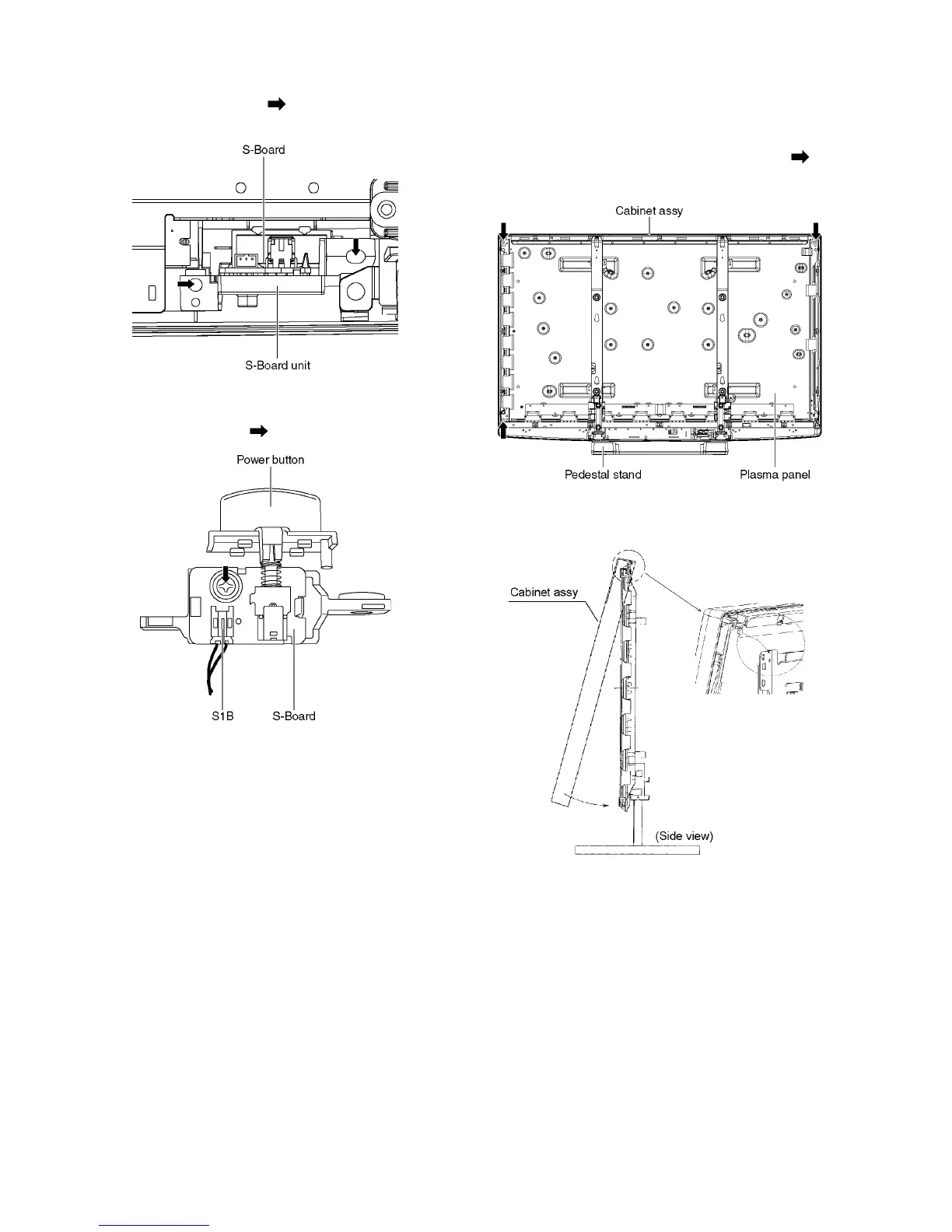

8.13. Remove the S-Board
1. Remove the screws (×2 ) and remove the S-Board
unit.
2. Disconnect the connector (S1B).
3. Remove the Power Button.
4. Remove the screw (×1 ) and remove the S-Board.
8.14. Remove the Plasma panel sec-
tion from the Cabinet assy
(glass)
1. Remove the plasma panel fastening screws (×3 ) and
remove the cabinet assy.
2. For leaving the cabinet assy from the plasma panel, pull
the bottom of the cabinet assy forward, lift, and remove.
