3 Service Navigation

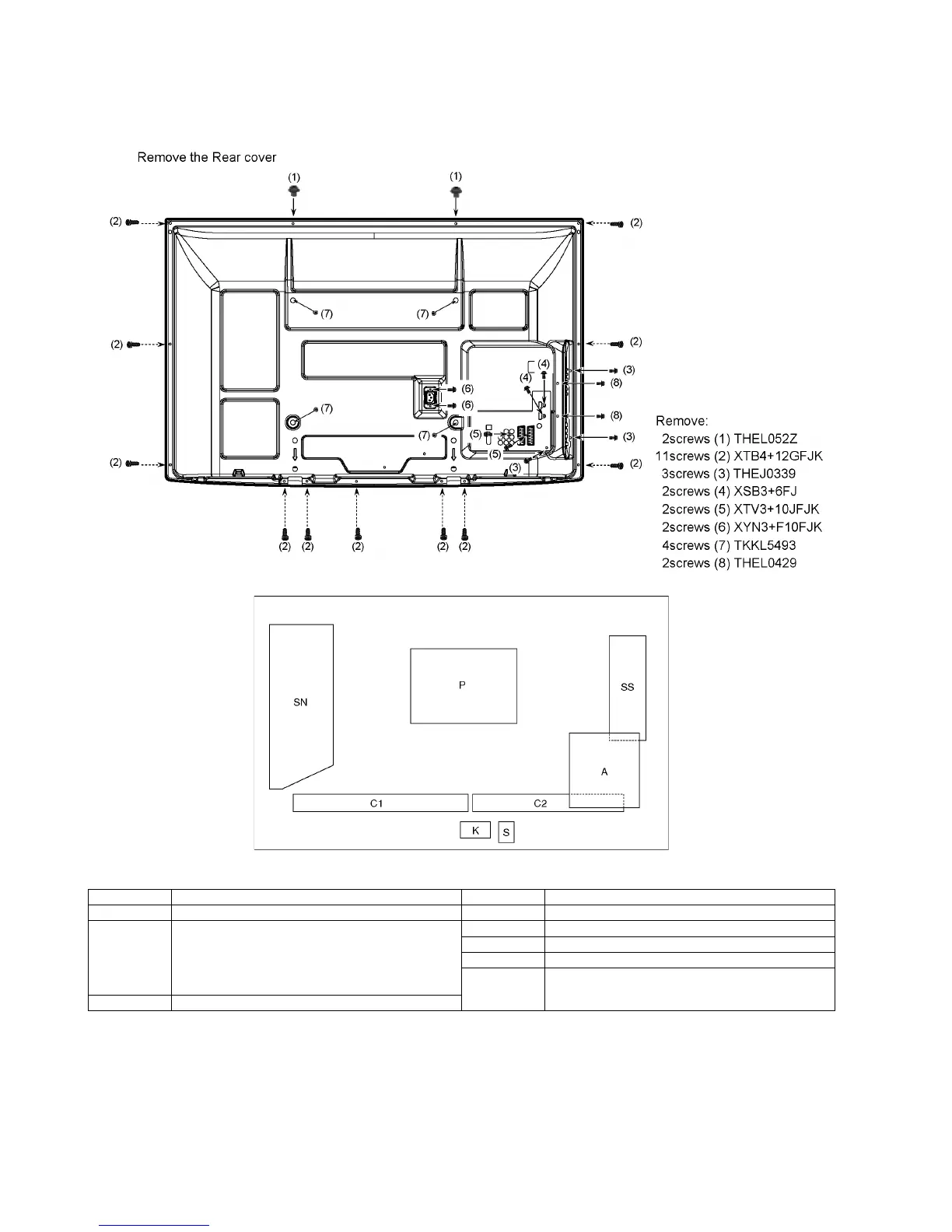

3.1. PCB Layout
Board Name Function Board Name Function
P Power Supply K Remote receiver, Power LED
A DC-DC Converter, Tuner
Speaker out, AV Terminal, HDMI in, SD Card
Digital Signal Processor, PEAKS-sLD
Format Converter, Plasma AI, Sub-Field Processor
Key Switch
C1 Data Driver (Lower Right)
C2 Data Driver (Lower Left)
SN Scan Drive
SS Sustain Drive
S Power Switch
