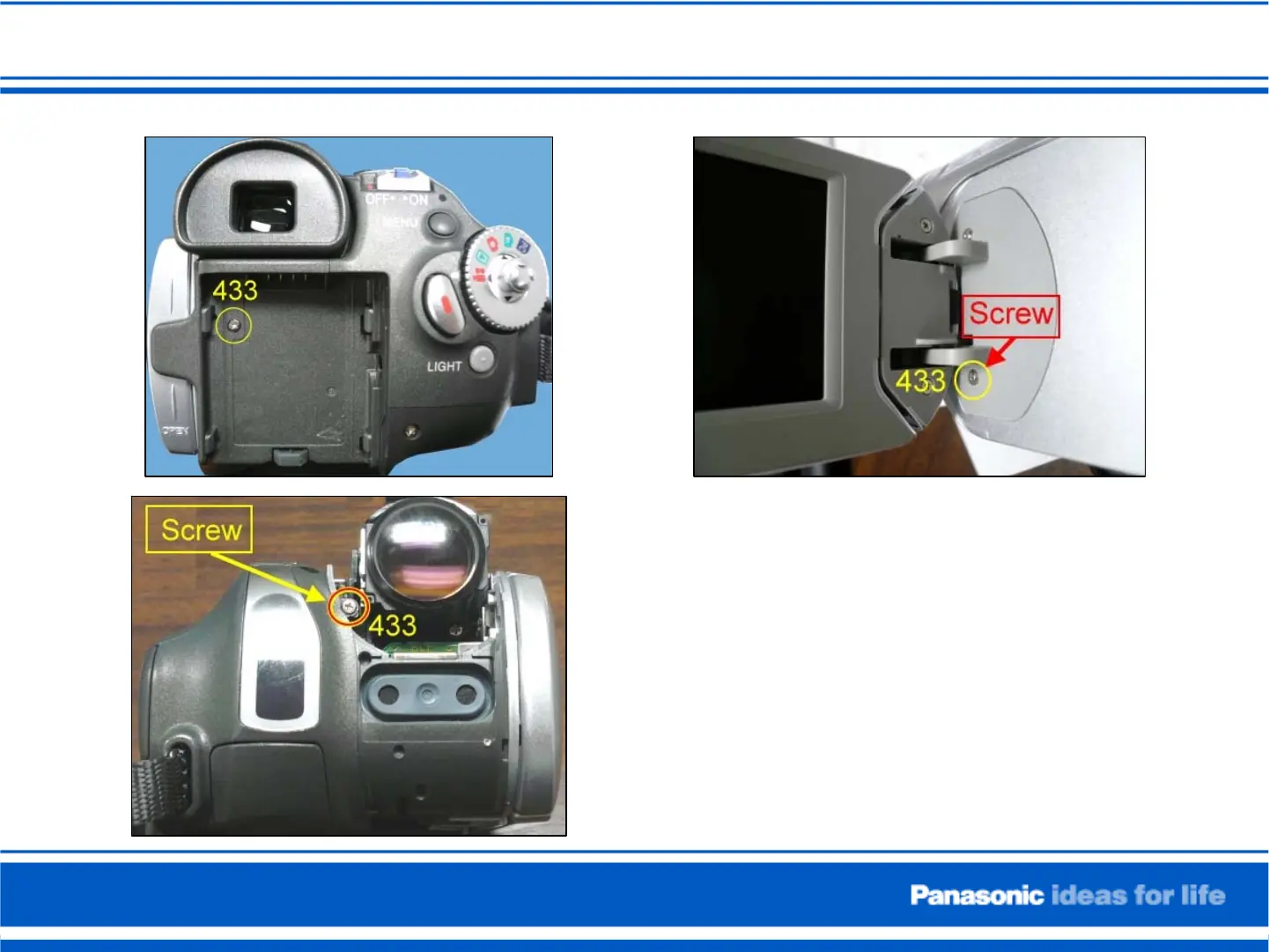

Right Side Assembly Removal
1.
Remove 3(433) Screws.
2.
Unplug the push-on connector B1.
3.
Release the lock from the “Flip-up”
connector FP8.
