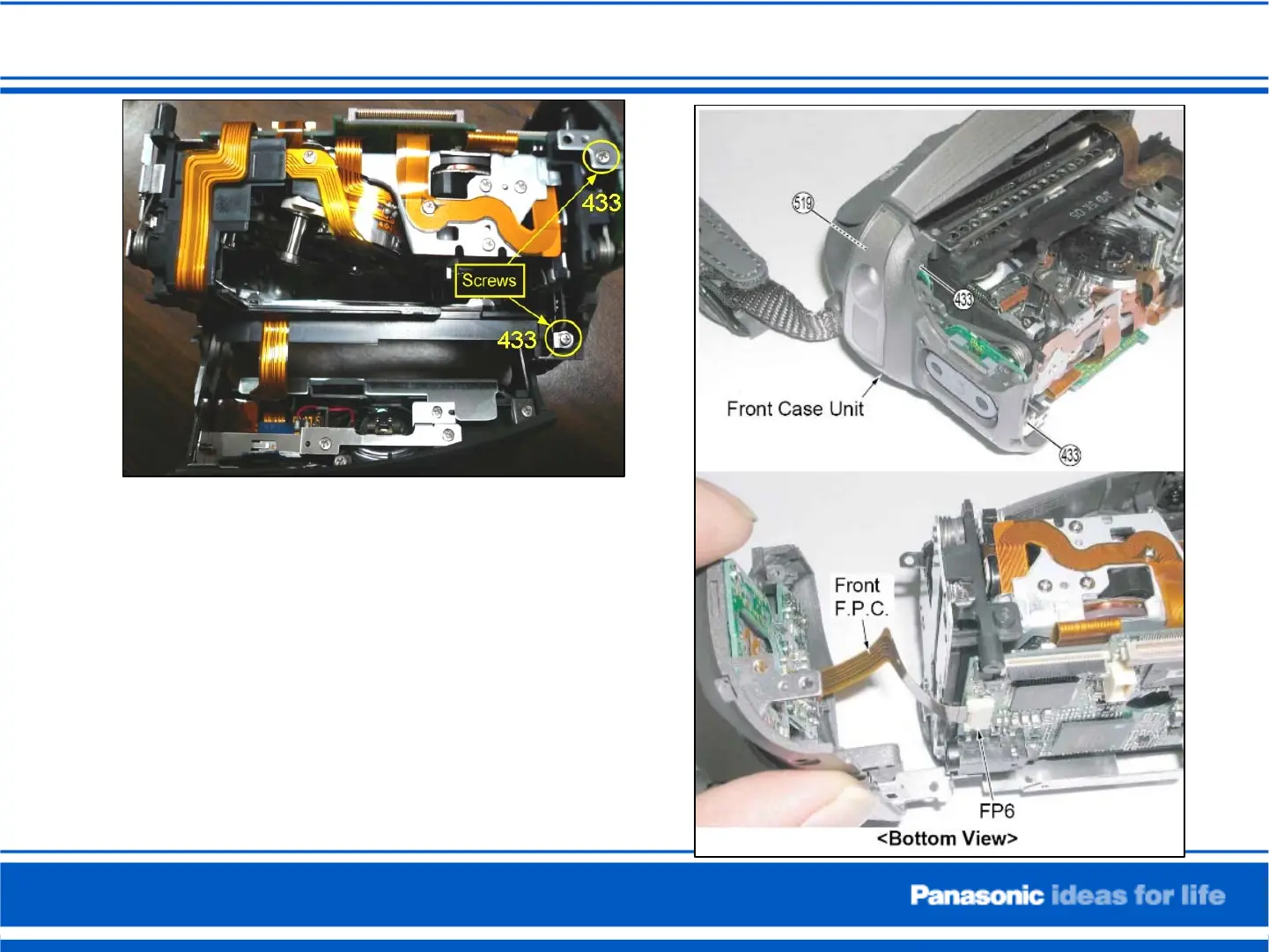

Removal of Front Case Unit

1) Remove the 3 Screws 2(433), 1(519).

2) Disconnect the Front F.P.C. from

Connector FP6.
