Connections
●
External equipment and cables shown are not supplied with this TV.
●
Ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
●
Check the type of terminals and cable plugs are correct when connecting.
●
Always use a fully wired SCART or HDMI cable.
●
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor.
Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.
●
Also read the manual of the equipment being connected.

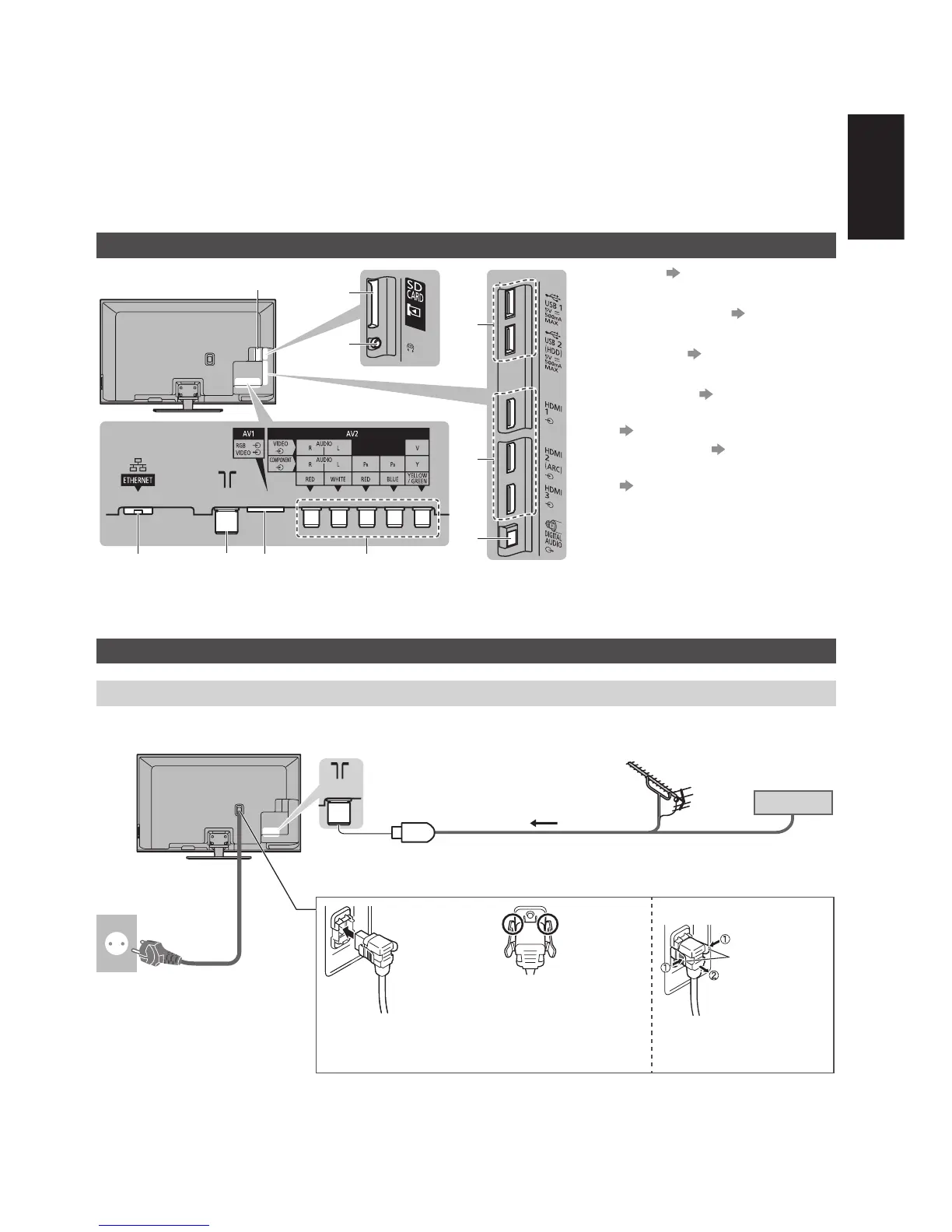

Terminals
8 7 9
4
6
5
2
1
3
10
1
CI slot (p. 12)
2
SD Card slot
3
Headphone jack (p. 12)
4
USB 1 - 2 port
5
HDMI1 - 3 (p. 10, 12)
6
DIGITAL AUDIO
7
ETHERNET (p. 11)
8
Terrestrial / cable terminal
(see below)
9
AV1 (SCART) (p. 10)
10
AV2 (COMPONENT / VIDEO)
(p. 11, 12)
Basic connections
Mains lead and aerial
■ Mains lead
Push until both side
tabs click
Make sure that
the mains lead is
securely fixed.
To remove from the TV:
tabs
Press both tabs and pull
on mains connector to
release
Cable
■ DVB-C, DVB-T, Analogue
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Terrestrial aerial
RF cable
