Effect 2: Equalizer
The Equalizer consists of a bass shelf tone control, two parametric band equa li zer stages,
and a treble shelf tone control.
Moving from left to right, the sliders unique to this effect are as follows:
● BASS FRQ (0...127):
Adjusts the frequency of the bass shelf filter in the range of 50...270 Hz.
● BASS SLOPE (0...127):
Adjusts the steepness of the bass filter in a range of 3...10dB/octave.
● BASS BOOST (-20…+20):
Boosts or cuts the bass by up to 20dB.
● MID1 FRQ, MID2 FRQ (0…127):
Adjusts the center frequency of the equalizer stages in the range of 170...7000Hz.
● MID1 Q, MID2 Q (10...100):
Adjusts the resonance (Q) of the equalizer stages in a range of 1...10.
● MID1 BOOST, MID2 BOOST (-20...+20):
Boosts or cuts the equalizers by up to 20dB.
● TREBLE FRQ (0...127):
Adjusts the frequency of the treble shelf filter in the range of 2000...7000 Hz.
● TREBLE SLOPE (0...127):
Adjusts the steepness of the treble filter in the range of 3...10dB/octave.
● TREBLE BOOST (-15...+15):
Boosts or cuts the treble up to 15dB.

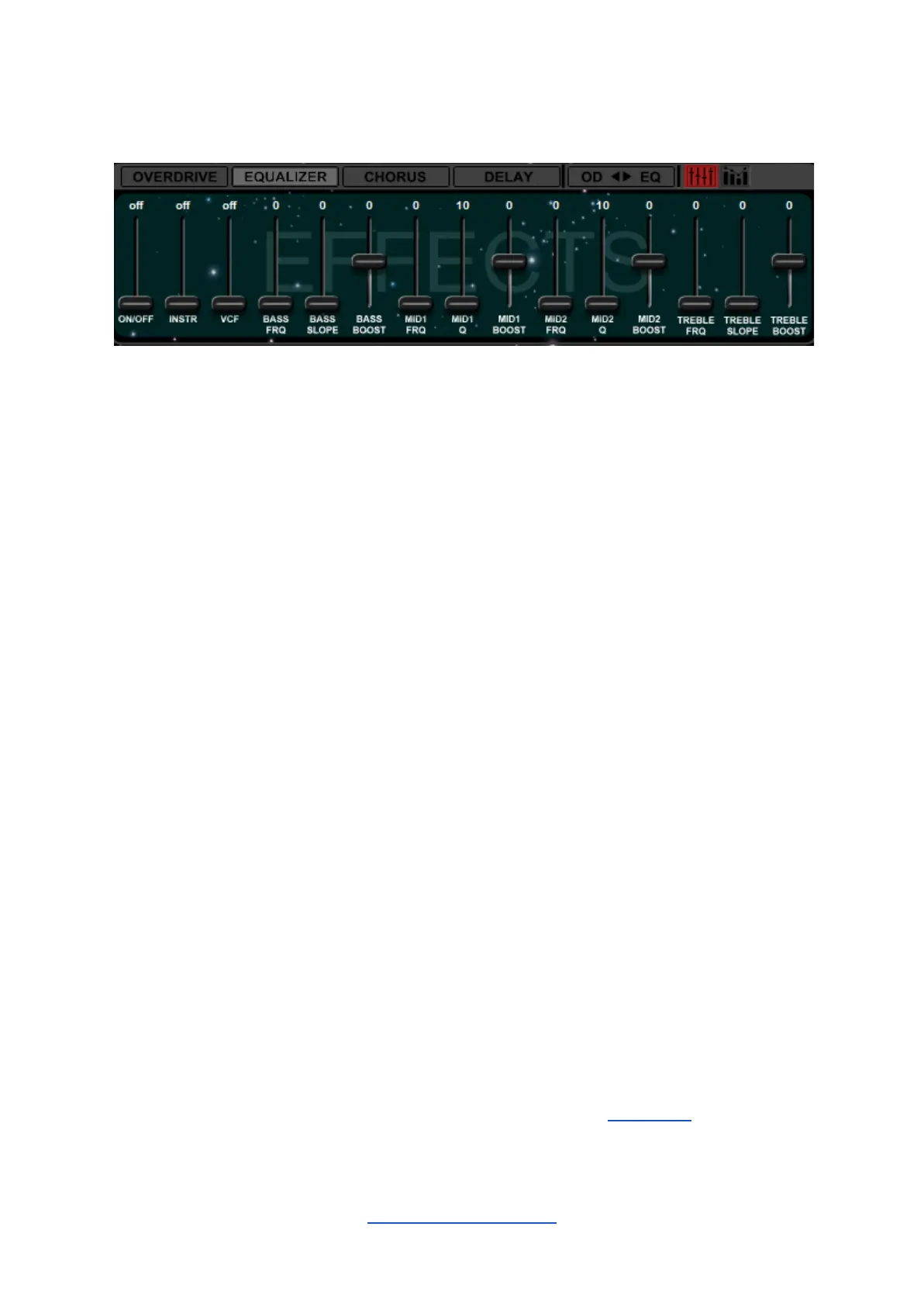

The Equalizer section has an optional graphical view too (see the screenshot at the
beginning of the Effects Block).
