Panduit PTR3E User Manual

Head Check Selection (DSW2-3). When selected, the printer will check for head
elements that are electrically malfunctioning.
Hex Dump Selection (DSW2-4). Selects Hex Dump mode (see page 37).
Receive Buffer Selection (DSW2-5). Selects the operating mode of the receive
buffer. See Section 5: Interface Specifications for more information.
Firmware Download (DSW2-6). Places the printer in the Firmware Download
mode for downloading new firmware into flash ROM.
Protocol Code Selection (DSW2-7). Selects the command codes used for protocol
control.
22

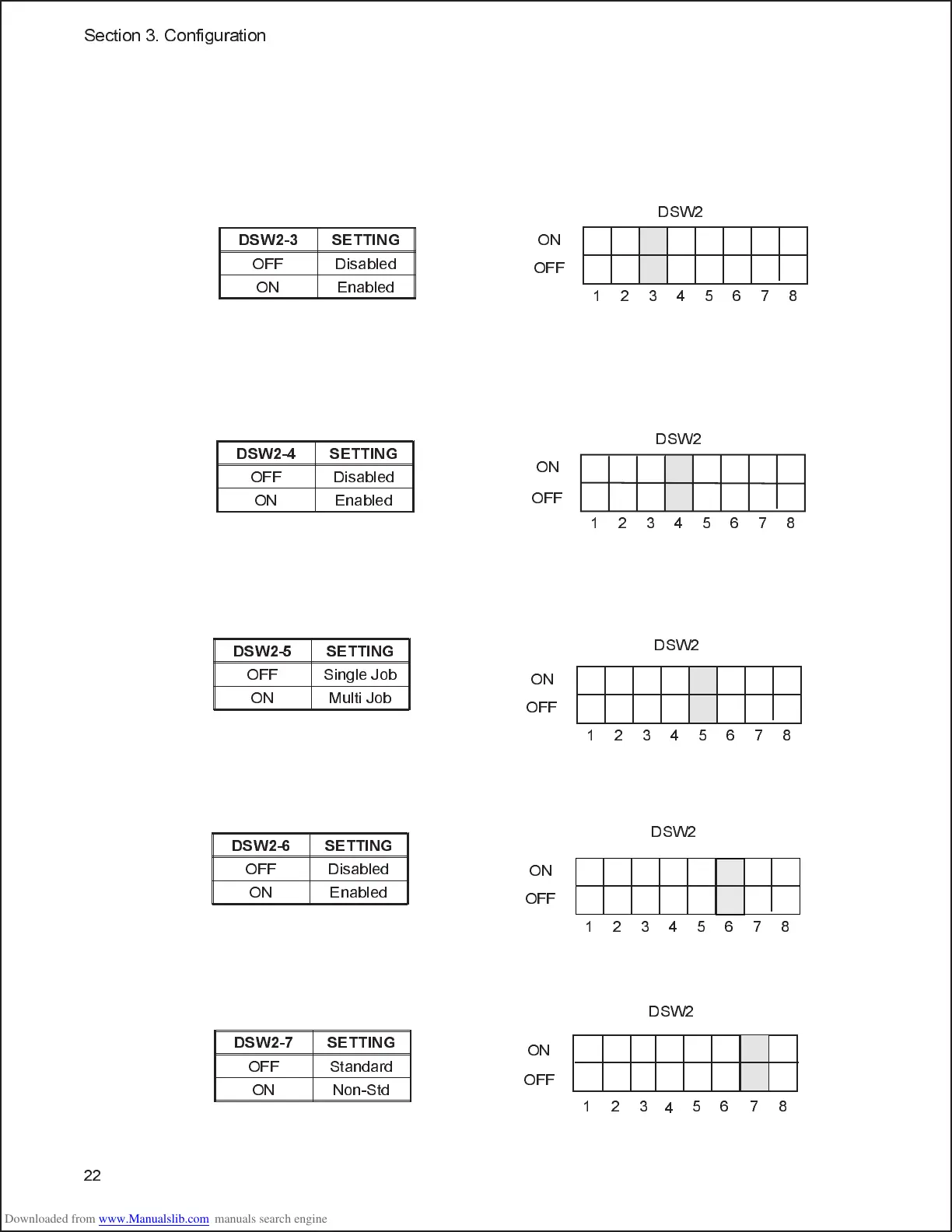

Section 3. Configuration
DSW2-3 SETTING
OFF Disabled
ON Enabled
12345678
ON
OFF
DSW2
DSW2-4 SETTING
OFF Disabled
ON Enabled
12345678
ON
OFF
DSW2
DSW2-5 SETTING
OFF Single Job
ON Multi Job
12345678
ON
OFF
DSW2
DSW2-6 SETTING
OFF Disabled
ON Enabled
12345678
ON
OFF
DSW2
DSW2-7 SETTING
OFF Standard
ON Non-Std
18
23 567
DSW2
ON
4
OFF
