Print Speed Adjustment (DSW2-8). See page 27.
Mode Selection (DSW3-1 and DSW3-2). Selects the operating mode of the printer.
Batch/Continuous disables the label taken (dispense option) sensor.
Label Sensor Selection (DSW3-3). Enables or disables the Label Pitch Sensor. If
the Sensor is enabled, it will detect the edge of the label and position it
automatically. If it is disabled, the positioning must be under software control using
Line Feed commands for continuous media printing.
Back-Feed Selection (DSW3-4). When Back-Feed is enabled, the printer will
position the label for dispensing/cutting and retract it before printing the next
label. See page 38 for information on setting the amount of offset.
EXT Print Start Signal Selection (DSW3-5). Allows an external device to initiate
a label print.
Note: This switch must be in the ON position if an external device is used to control
the printer via the EXT connector.
23

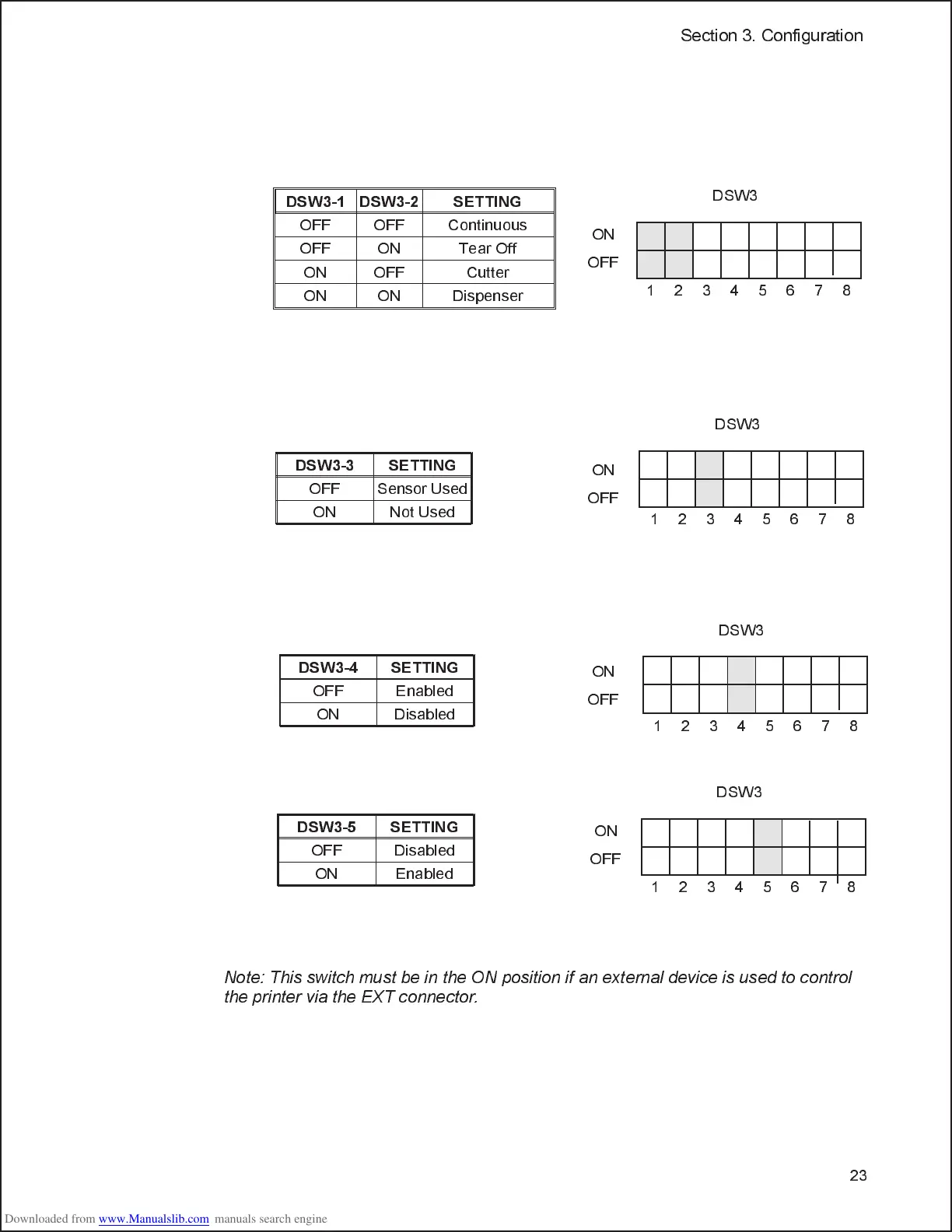

Section 3. Configuration
DSW3-3 SETTING
OFF Sensor Used
ON Not Used
DSW3
DSW3-4 SETTING
OFF Enabled
ON Disabled
DSW3
DSW3-1 DSW3-2 SETTING
OFF OFF Continuous
OFF ON Tear Off
ON OFF Cutter
ON ON Dispenser
12345678
ON
OFF
DSW3
DSW3-5 SETTING
OFF Disabled
ON Enabled
12345678
ON
OFF
DSW3
ON
OFF
12345678
ON
OFF
12345678
