SMARTZONE G5 INSTALLATION MANUAL
9

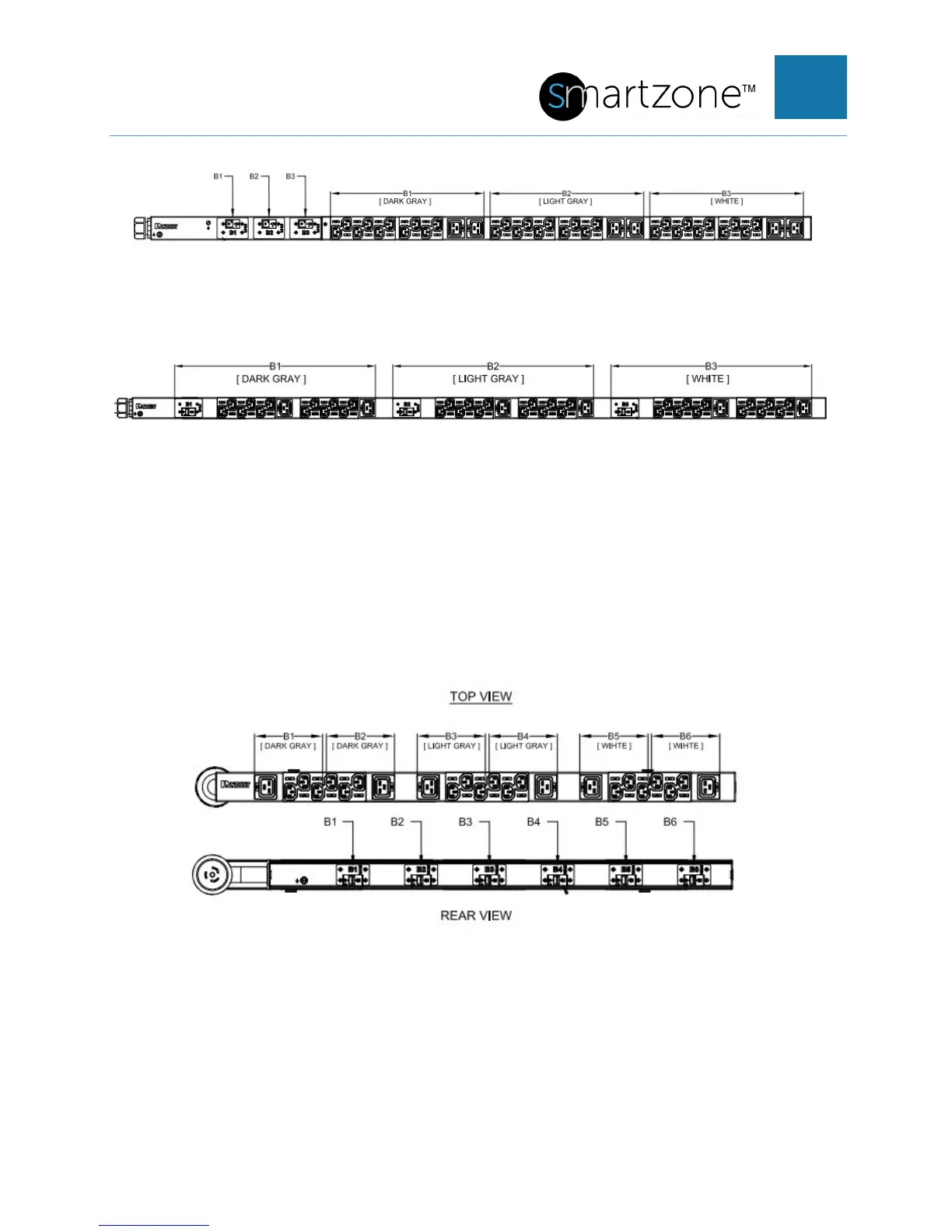

Single Phase PDU Example
Three Phase PDU Example
There is one exception to the different colored receptacles per load segment. The three
phase half-height high density model has two different load segments on each phase as
shown in the illustration below.
Three Phase Half-Height High Density PDU Example
