SMARTZONE G5 INSTALLATION MANUAL
(A) (B) (C)

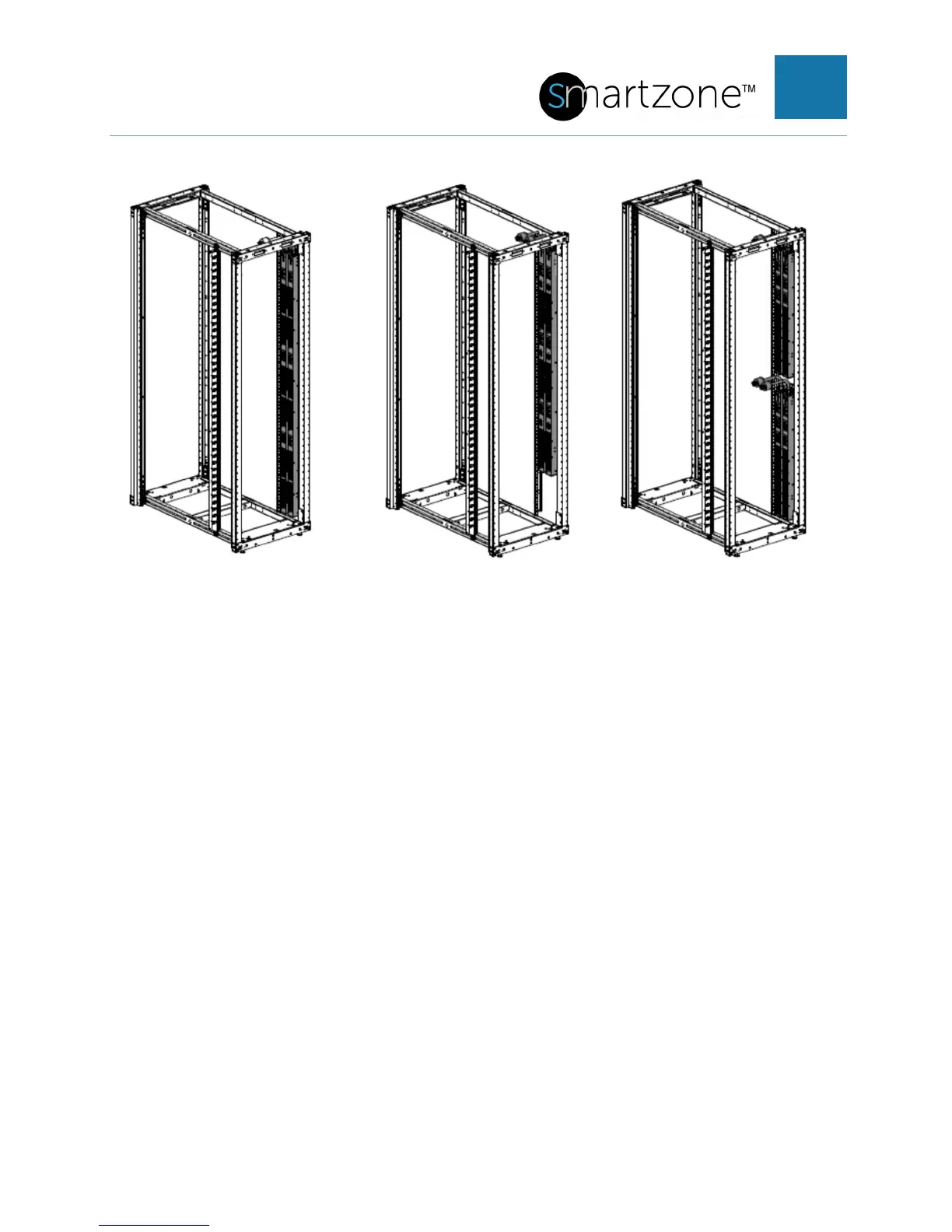

NOTE: (A) Two full-height PDUs with outlets facing in towards the center of the rack;
(B) Two mid-height PDUs with outlets facing in towards center of the rack; (C) Four half-
height PDUs with outlets facing in towards center of the rack.
High Density PDU Installation
This unique form factor comes in both full-height (A) and half-height (B) models and can
only be installed on the sides of the PDU with the outlets facing the back of the rack.
