SMARTZONE G5 INSTALLATION MANUAL
Vertical (0U) PDU– Single Installation

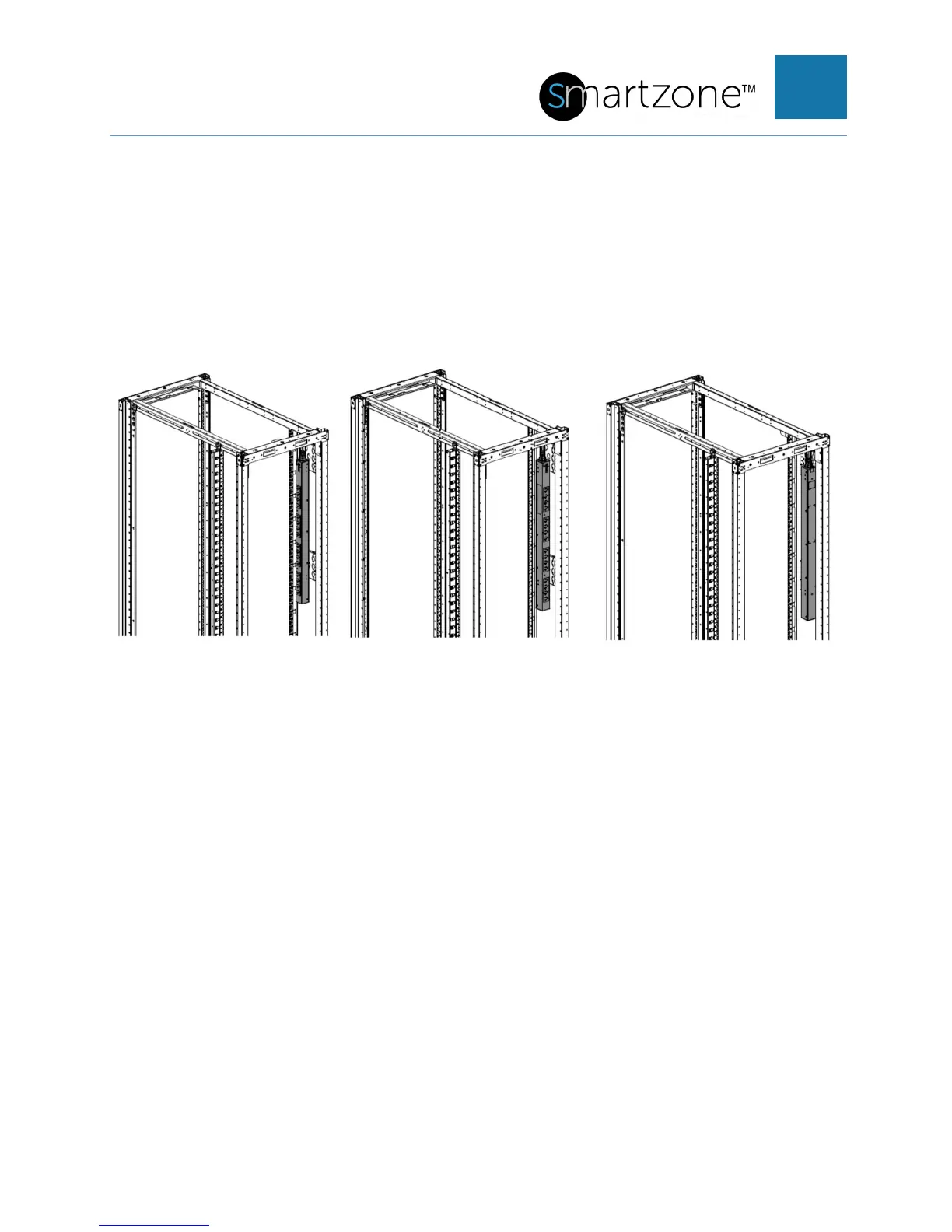

A single vertical unit can be installed with the outlets facing the center (A), outlets facing
the back of the rack (B), or outlets facing the front of the rack (C). The pictures below
illustrate these installation methods.
(A) (B) (C)
NOTE: The above installation methods are true for all vertical models except for the
high-density models. Those units can only mount on its side with outlets facing the back
of the rack. Reference the high density PDU installation section for installation
instructions.
Vertical (0U) PDU– Two or More Installation
For two full-height (in a 42U/45U/48U rack), two mid-height (in a 42U/45U/48U rack), or
four half-height (in a 42U/45U/48U rack) vertical units to be mounted on one side of the
rack, all units must be installed with the outlets facing in towards the center of the rack.
