SMARTZONE G5 INSTALLATION MANUAL
16

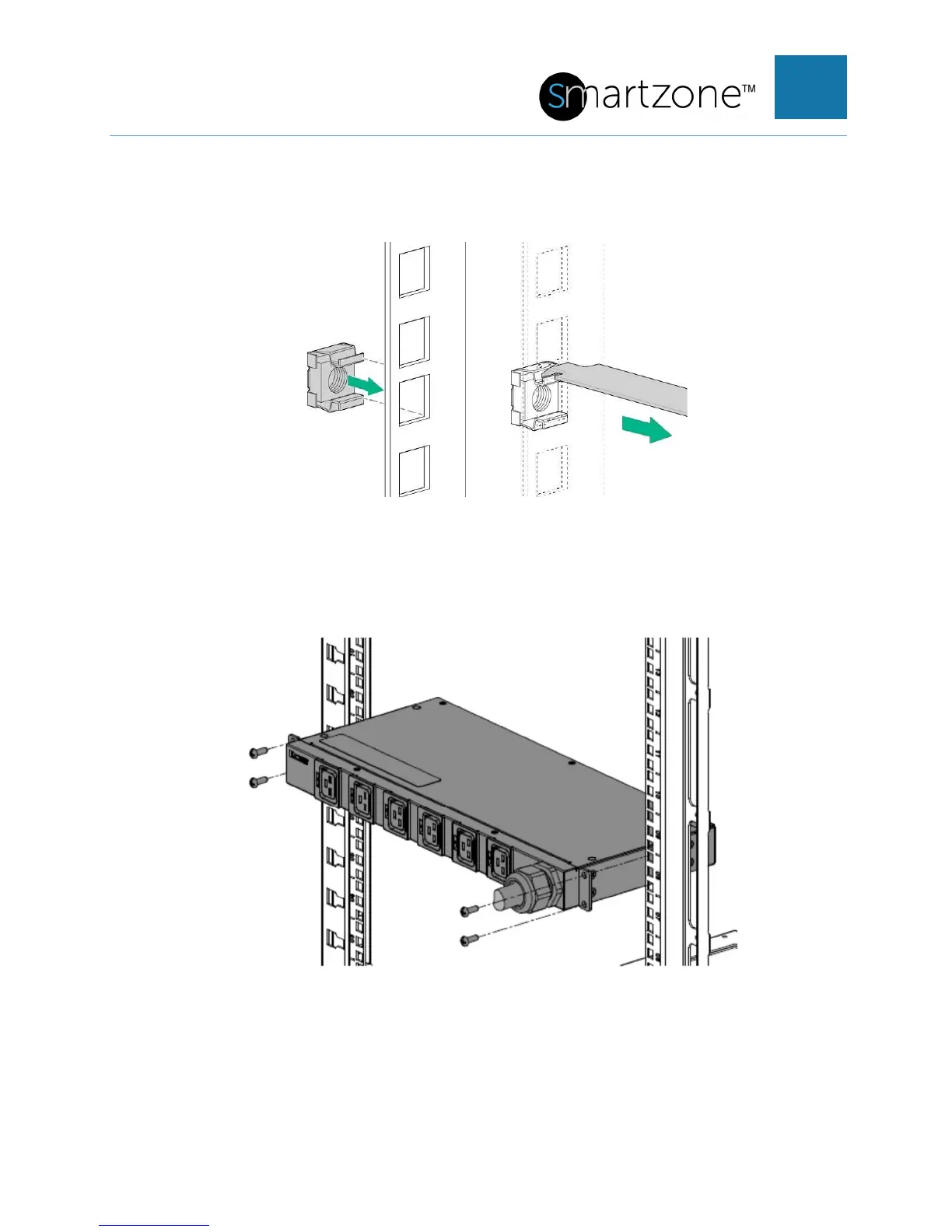

Mounting Hardware Installation
1U PDU mounting in a U position of the rack
1. Install the cage nuts at the desired U location.
2. Screw the mounting bracket ears into the RETMA rail surface at the U location
where the cage nuts were installed.
