INSTRUCTION MANUAL VeriSafe AVT
B21075_00 Page: 18 of 20 04-2018
Maintenance
Warning:
• The product uses a lithium battery that is a fire, explosion and severe burn hazard. Do not crush, recharge, disassemble or heat
above 85
°
C, incinerate, or expose contents to water.
• Battery, AVT System Cable and O-rings can be replaced. No other part of the product is serviceable. Do not attempt to open the
Indicator Module or Isolation Module for repair or modification. When servicing this product, only use specified replacement
parts.
• The AVT will not work with a standard alkaline 1.5Volt AA battery. Use only lithium, 3.6 Volt, Size AA approved batteries listed in
table 1 of the Maintenance section of this instruction manual.
• EXPLOSION HAZARD - Do not replace the battery inside of the indicator module unless area is known to be non-hazardous.
• EXPLOSION HAZARD – Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous.
Battery Replacement
Follow these steps to replace the battery. Table 1 provides a list of batteries approved for use with the AVT. Do not discard the
battery in the trash; take it to an appropriate battery recycling facility.
AA, ER14505 3.6 Volt Lithium Battery
Table 1: Approved VeriSafe AVT batteries

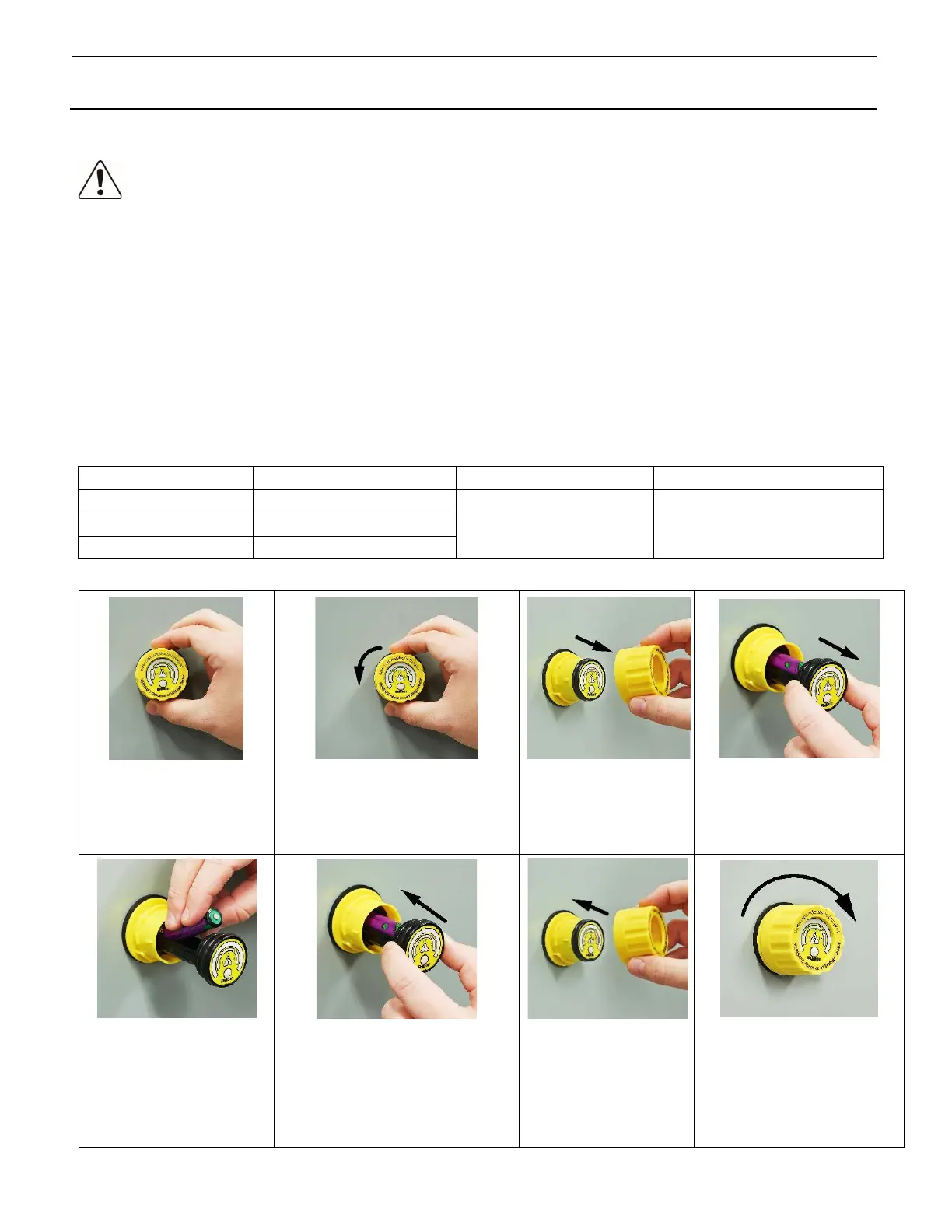

1. Grip the Indicator Module
Cap.
2. Twist the Indicator Module cap
counterclockwise approximately 90
degrees, until you feel a stop.
4. Grip the battery tray and
slide it out until you feel a
stop. The battery tray is not
intended to be fully
removed.
Dispose according to local
procedures.
Install a new battery. The
positive terminal should
face the operator.
6. Slide the battery tray back in the
housing.
A self test is initiated when the
battery tray is inserted and
connection is made between the
battery and AVT electronics.
8. Twist cap clockwise to lock
into place.
Record the date the battery
was replaced in equipment
documentation.
