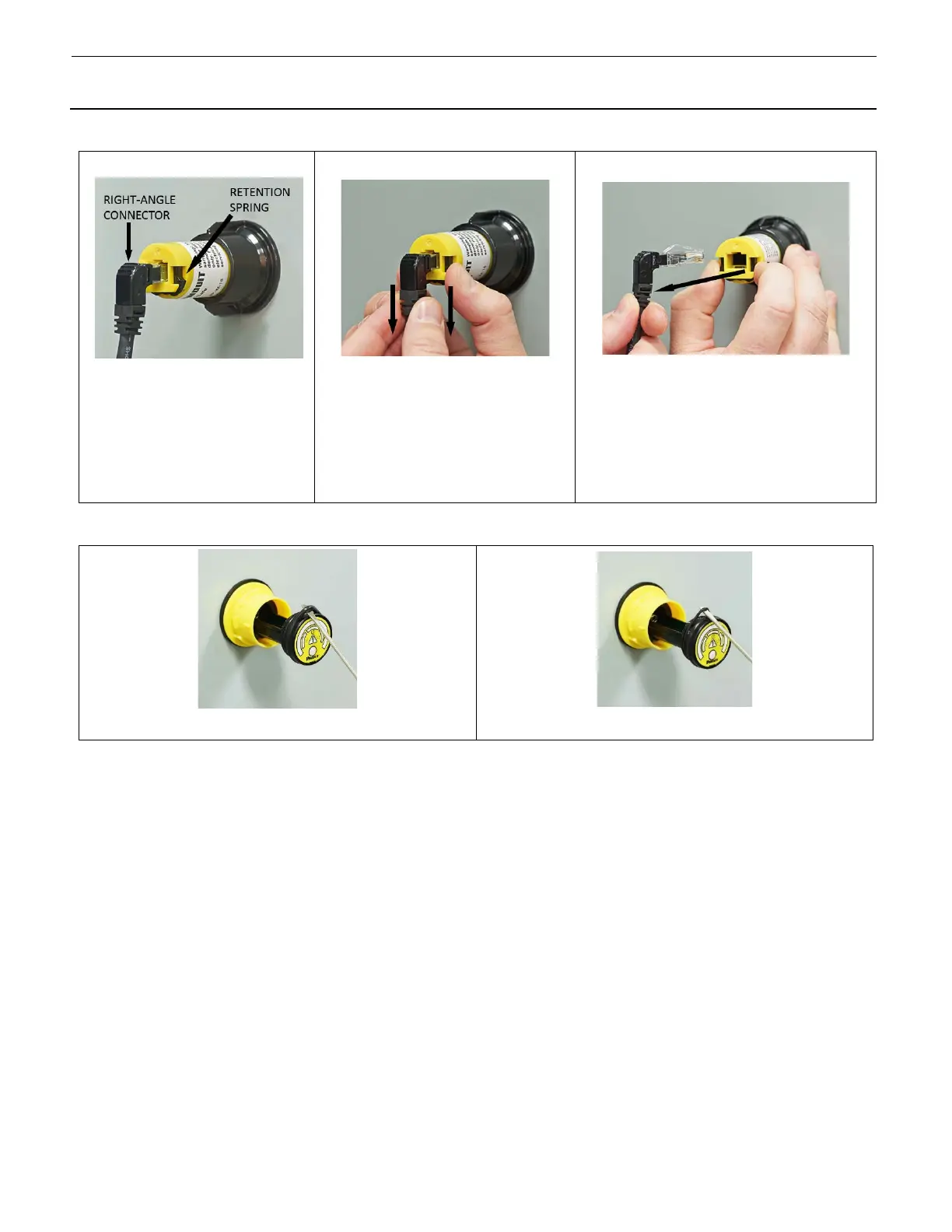

AVT System Cable Removal
1. Grip the Retention Spring on both
sides.
2. Pull down on the Retention Spring
approximately 1/16 inch [1.5 mm].
3. Continue holding the Retention Spring down
while pulling back on the right-angle
connector to release the AVT System Cable.
O-ring Replacement
The O-rings can be replaced if they become dry or brittle. In critical sealing applications, such as wash down environments, it
is recommended that the O-rings be replaced every 5 years. Apply a light coating of silicone grease to the O-rings to promote
sealing and extend O-ring life.
Cleaning Instructions
The Indicator Module can be cleaned with a damp cloth or isopropyl alcohol based cleaner. Do not use abrasives or high alkaline
cleaners. Do not leave cleaners on the device for a long period, rinse immediately. Do not apply cleaners in direct sunlight or
elevated temperatures.
The section of the VeriSafe Indicator Module that is external to the electrical enclosure is approved for wash down as specified
by NEMA 4, IP66 and IP67 standards. Before a wash down operation, ensure the O-rings are in good condition, the faceplate is
not damaged and fully secured to the unit, and the cap is fully installed.
Visual Inspection
Periodically inspect the AVT and replace any damaged parts, cables or terminations.
Inspect the Sensor Lead terminations to ensure they are tight, the leads are secure and do not show signs of damage.
Inspect the AVT System Cable to ensure it is locked into place on both ends, is secure and does not show signs of damage.
Inspect the Indicator Module to ensure O-rings are not dry or brittle and that the retaining nut and cap are in place.
The procedure described in the Commissioning Checklist can be performed at any time.
