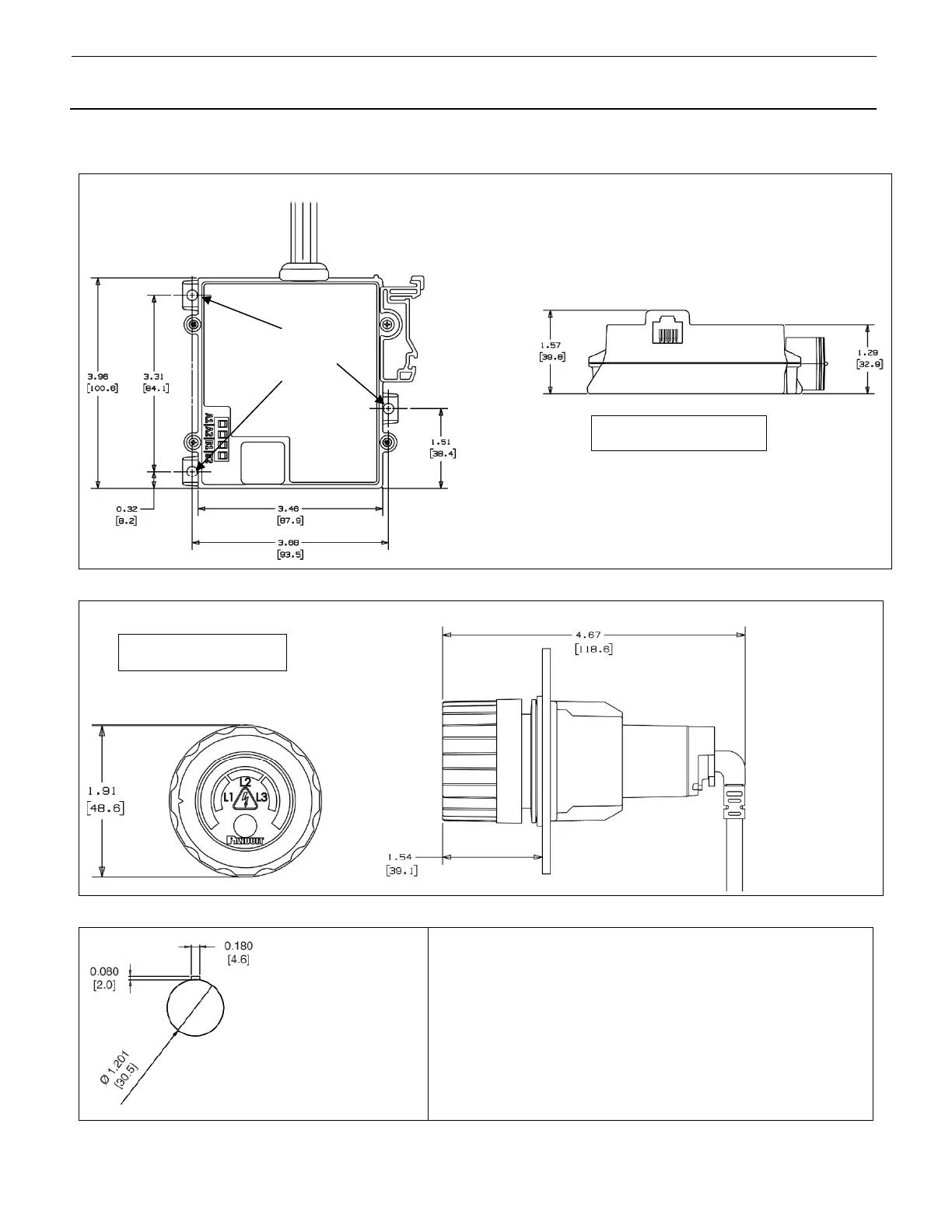

Dimensions
Isolation Module
Indicator Module
Panel Knockout
Units – inches [mm]
The Indicator Module is designed for use with a standard 30 mm
knockout with notch.
The notch should be positioned on top, as shown in the image.
MOUNTING
HOLES (3)
Units = inches [mm]
Units = inches [mm]
