34
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2

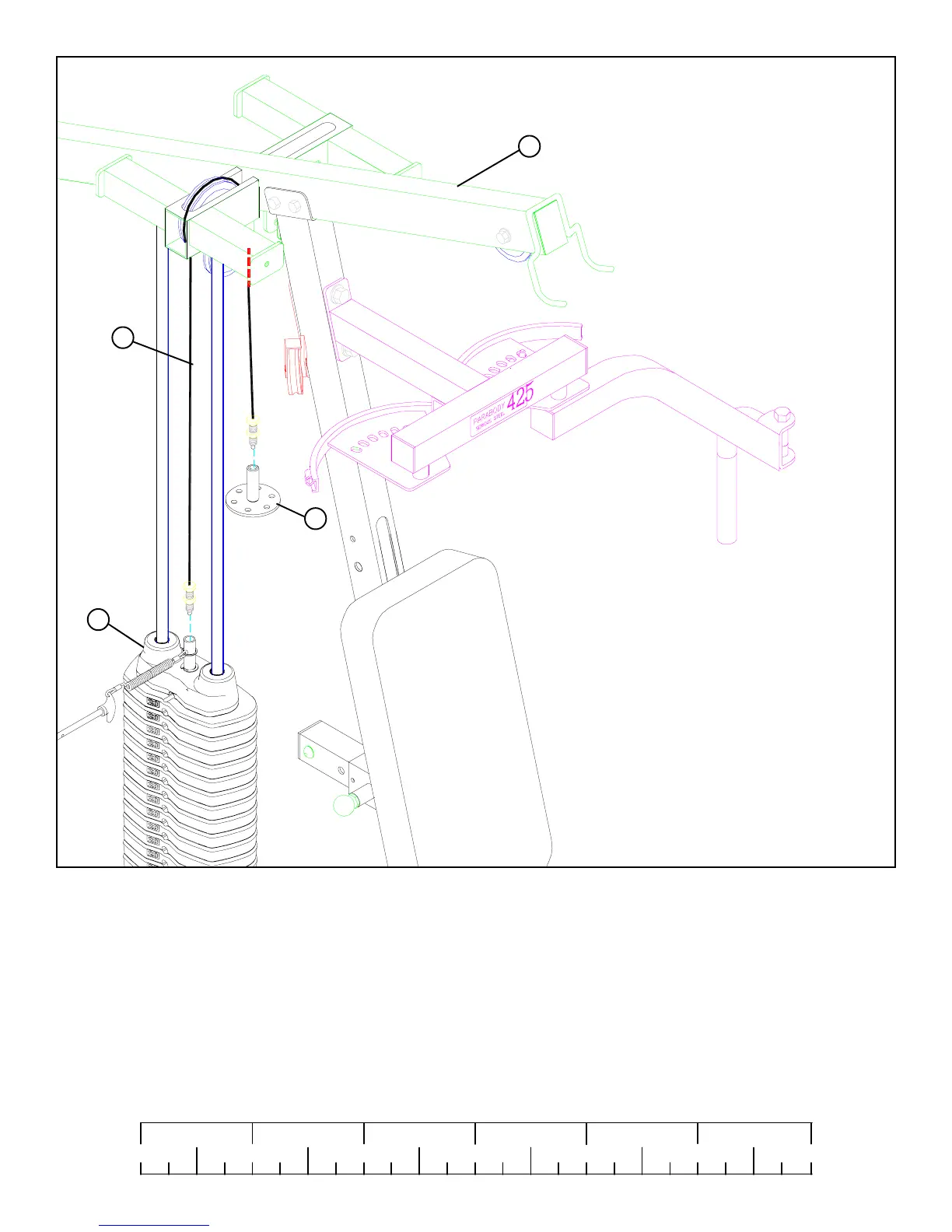

FIGURE 35
STEP 35
• To assemble the D-RING CABLE (102) follow the cable routing as shown and use the following steps:
• Screw one of the threaded ends of the D-RING CABLE (102) approximately 1” into the end of the shaft on the HEAD PLATE (72)
as shown in FIGURE 35.
• Route the CABLE (102) up and over the two PULLEYS in the TOP BOOM (17) above the WEIGHT STACK. (Remove pulleys
for ease of installation.)
• Screw the other threaded end of the D-RING CABLE (102) approximately 1” into the end of the shaft on the D-RING (7) as
shown in FIGURE 35.
• SECURELY tighten two pulley connections from the previous step.
17
72
7
102
