36
STEP 38
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2

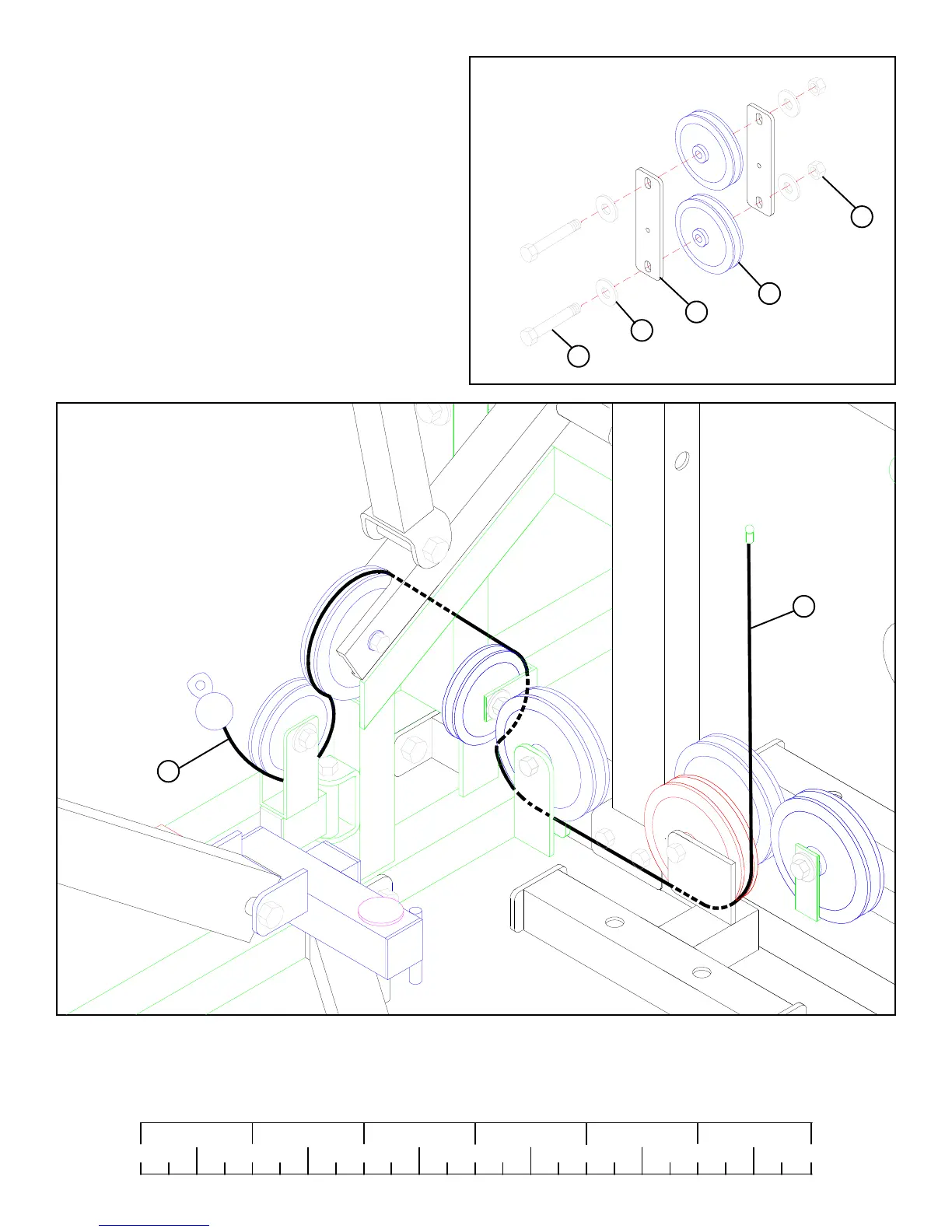

• To assemble the PRESS CABLE (100) follow the cable routing as shown and use the following steps:
• Route the PRESS CABLE (100) around pulleys and L-brackets as shown in FIGURE 38.
FIGURE 37
FIGURE 38
STEP 37
• Assemble two 4-1/2” PULLEYS (43) to two 2 X 7-1/4” PLATES
(33) using two 3/8 X 2-1/4” BOLTS (86) four 3/8” WASHERS (91),
and two 3/8” LOCK NUTS (92) as shown in FIGURE 37.
91
86 3/8 X 2-1/4”
43
33
92
100
100
