ParaBody 660 - Page 47

47
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
STEP 55
FIGURE 55
FIGURE 54
STEP 54

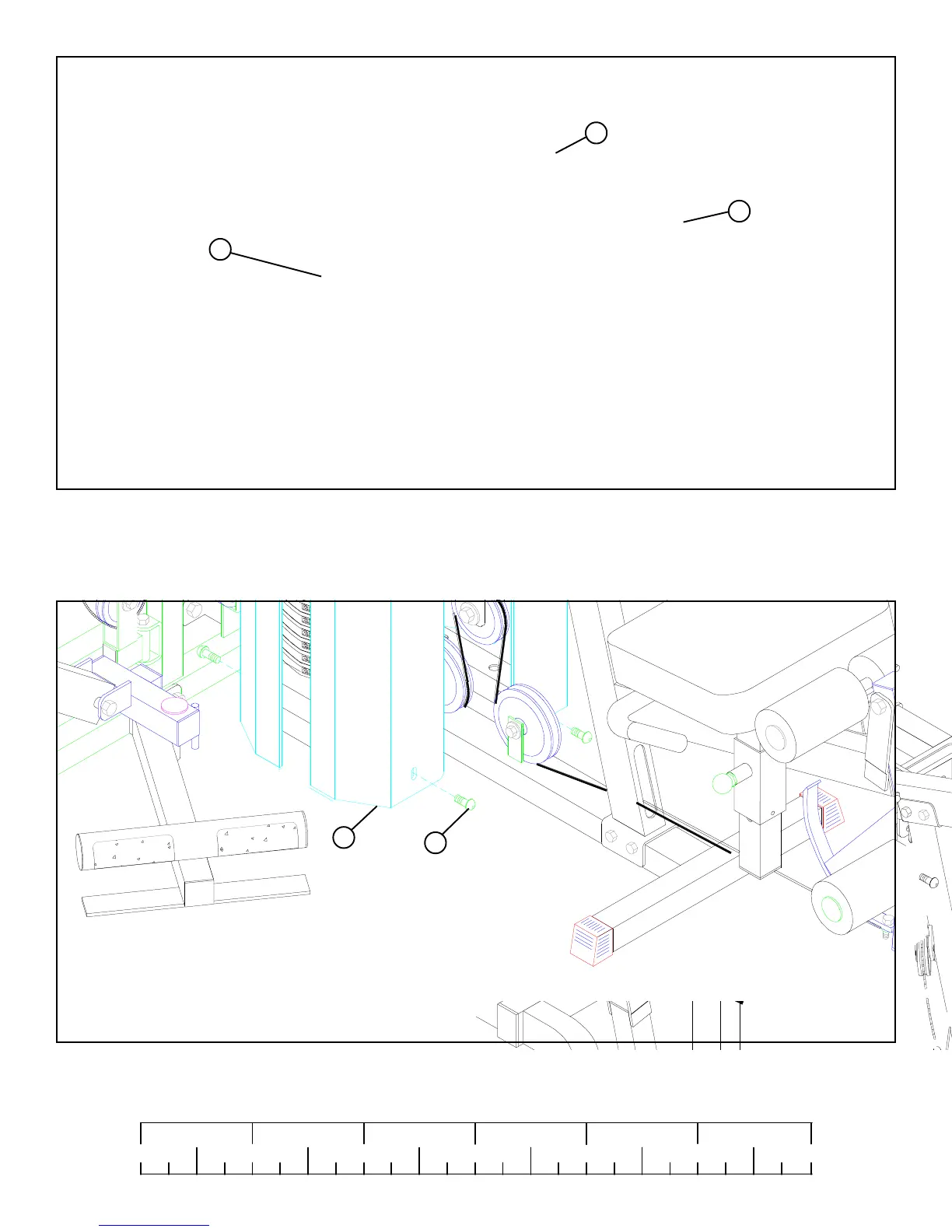

• SECURELY attach the top of the front SHROUD (31-with label) & rear SHROUD (31) to the TOP BOOM (17) using four 3/8” X 1”
BUTTON HEAD CAP SCREWS (96). See FIGURE 54.
96 3/8” X 1” BUTTON
HEAD CAP SCREW
• SECURELY attach the bottom of the front SHROUD (31-with label) & rear SHROUD (31) to the TOP BOOM (17) using four 3/8” X 1”
BUTTON HEAD CAP SCREWS (96). See FIGURE 55.
31
31
31
96 3/8” X 1” BUTTON
HEAD CAP SCREW
