Paradox Magellan Systems 7

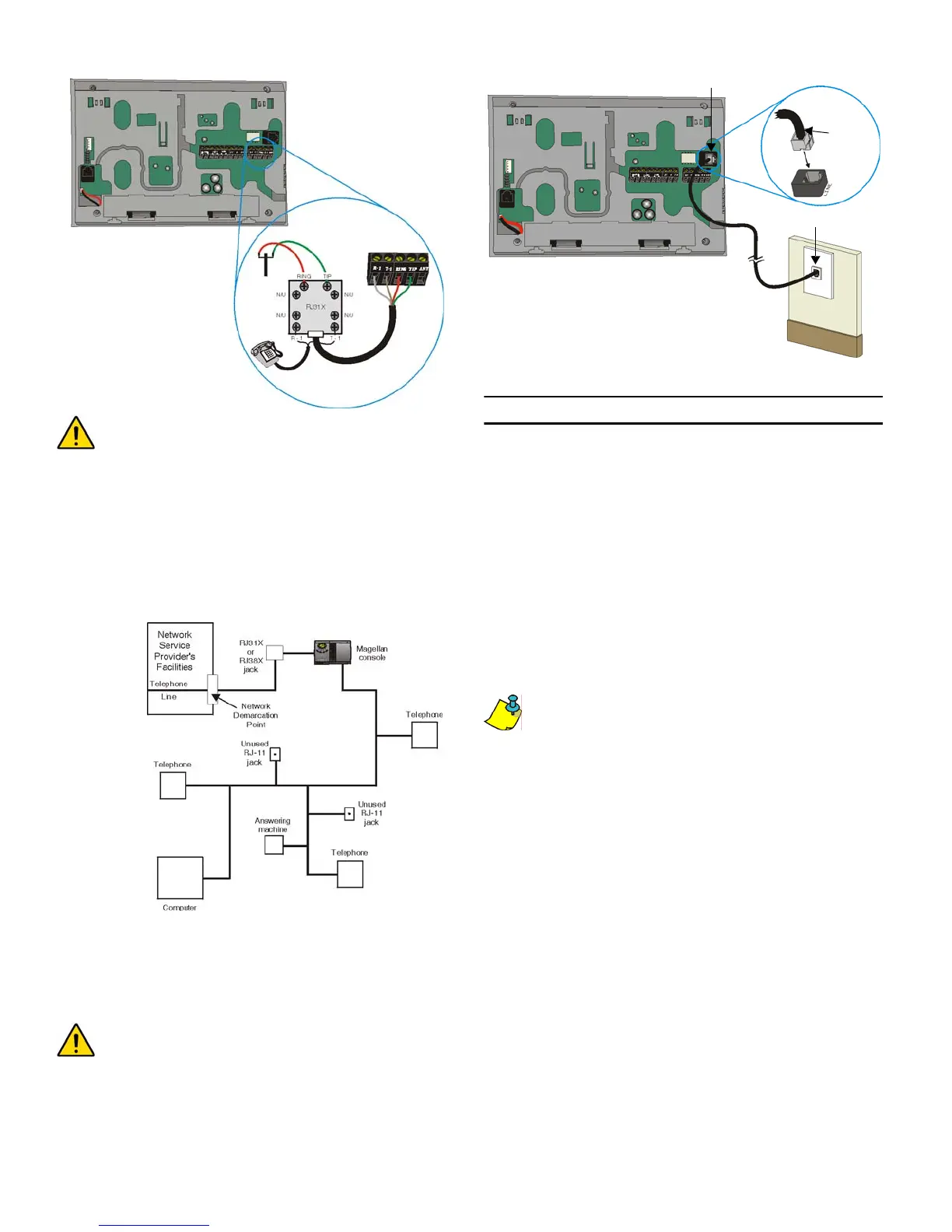

Figure 4: Telephone Line Direct Connect
For UL compliant installations, the Magellan console must
be able to seize the telephone line and place a call in an
emergency situation. It must be able to do this even if other
equipment (telephones, answering machines, computer
modems, etc.) already has the line in use. To do so, the
Magellan console must be connected to a properly installed
RJ31X jack that is in series with and ahead of all other
equipment attached to the same telephone line. Proper
installation is depicted in the diagram below. If you have
any questions concerning these instructions, you should
consult your telephone company about installing the RJ31X
jack and the Magellan console for you.
Line Plug Connect
The Magellan console can also be connected to a telephone line
via its on-board
LINE
plug. See Figure 5 on page 7 for more
information on connecting the telephone line using this method.
When connecting via the
LINE
plug, if the telephone line is
shared and it is busy (i.e. someone is talking on the
telephone) the console will be unable to communicate with
the Monitoring Station. It is recommended that the Direct
Connect method (see page 6) be used to connect the
telephone line.
Figure 5: Line Plug Connection
Programmable Outputs (PGMs)
Magellan comes equipped with two 100mA solid-state PGM
outputs. When a specific event occurs in the system, a PGM can
be programmed to activate lights, garage door openers, etc. See
Programmable Outputs on page 33 for more information on
programming PGMs.
Connect Magellan’s PGM outputs as shown in Method 1 in
Figure 6 on page 8. Since Magellan does not come with a power
supply, an external power supply must be employed to power the
circuit. The PGM outputs can be either Normally Open (N.O.) or
Normally Closed (N.C.) as detailed in PGM Normal State
(Onboard Only) on page 33.
If the current draw on the PGMs is to exceed 100mA, we
recommend using an external relay as shown in Method 2 in
Figure 6 on page 8.
Using Method 2, connect the device to the output terminal of the
external relay that matches the normal state of Magellan’s PGM
output. For example, if PGM1’s normal state is Normally Open
(N.O.), connect the device to the
N
.
O
. terminal of the external
relay.
To connect the telephone line:
1. Connect a RJ31X to the
R
-
1,
T
-1,
RING
and
TIP
terminals as shown at right.
2. Connect the telephone
company wires and the
home telephone to the
RJ31X.
Back view of the Magellan
console.
4-pin
RJ-11
cable
Back view of the Magellan console.
1
2
1. Insert one end of the 4-pin RJ-11 cable into the
LINE
plug of the Magellan console.
2. Insert the other end of the RJ-11 cable into a
standard telephone wall plug.
