Paradox SP5500 Installation Guide

18
Magellan & Spectra SP • Installation Guide
Single Zone Inputs
Detection devices such as motion detectors and door contacts are connected to the control panel's zone input terminals. Figure 3 demonstrates single zone input
terminal connections recognized by the panel. Once connected, the associated zone's parameters must be defined.

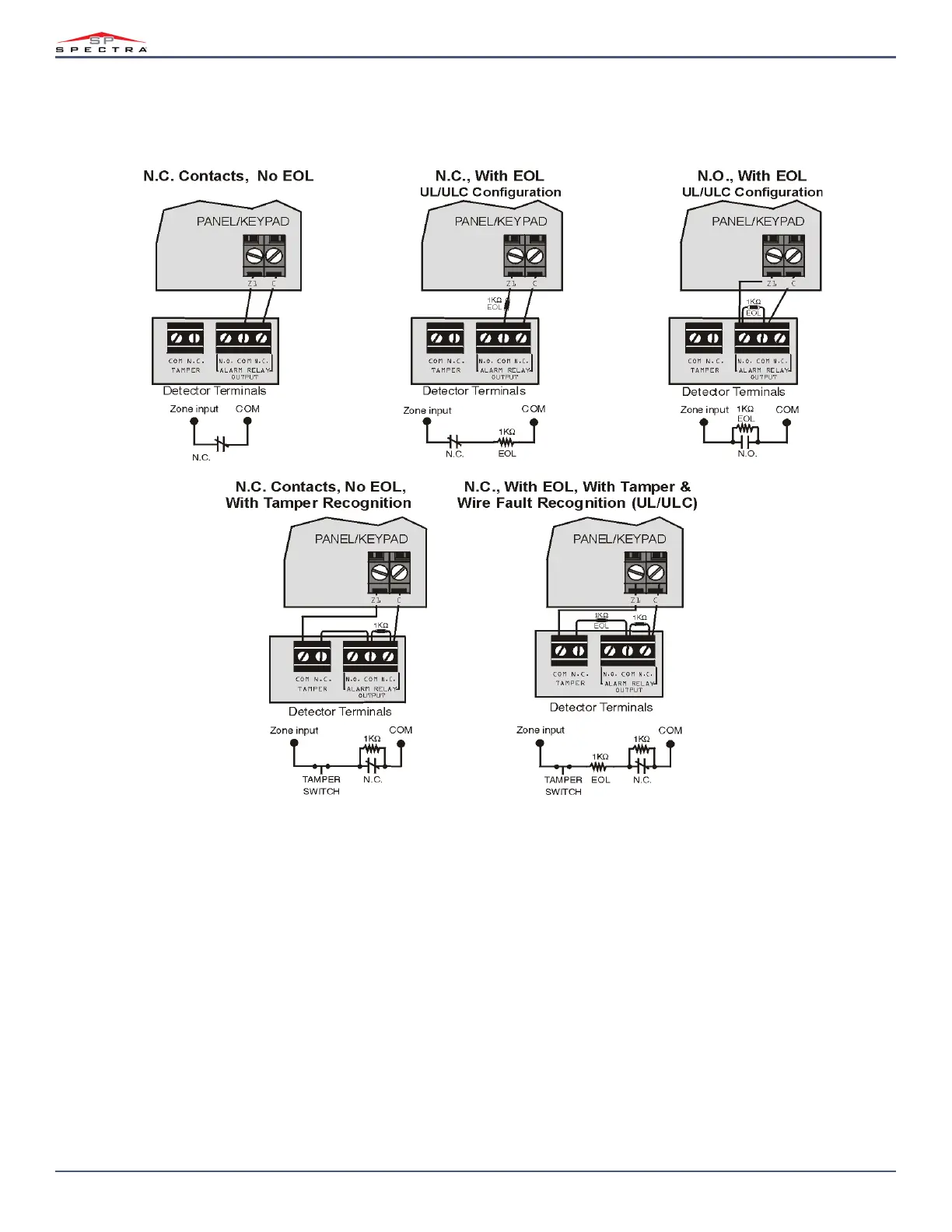

Figure 3: Single Zone Input Connections

Paradox SP5500 Specifications

General

Brand	Paradox
Model	SP5500
Category	Security System
Language	English
