Page 306 · Robotics with the Boe-Bot
The Board of Education® Rev C Carrier Board
The Board of Education® Rev C carrier board for BASIC Stamp® 24-pin microcontroller
modules is shown in Figure B-2. Its major components and their functions are indicated
by labels.

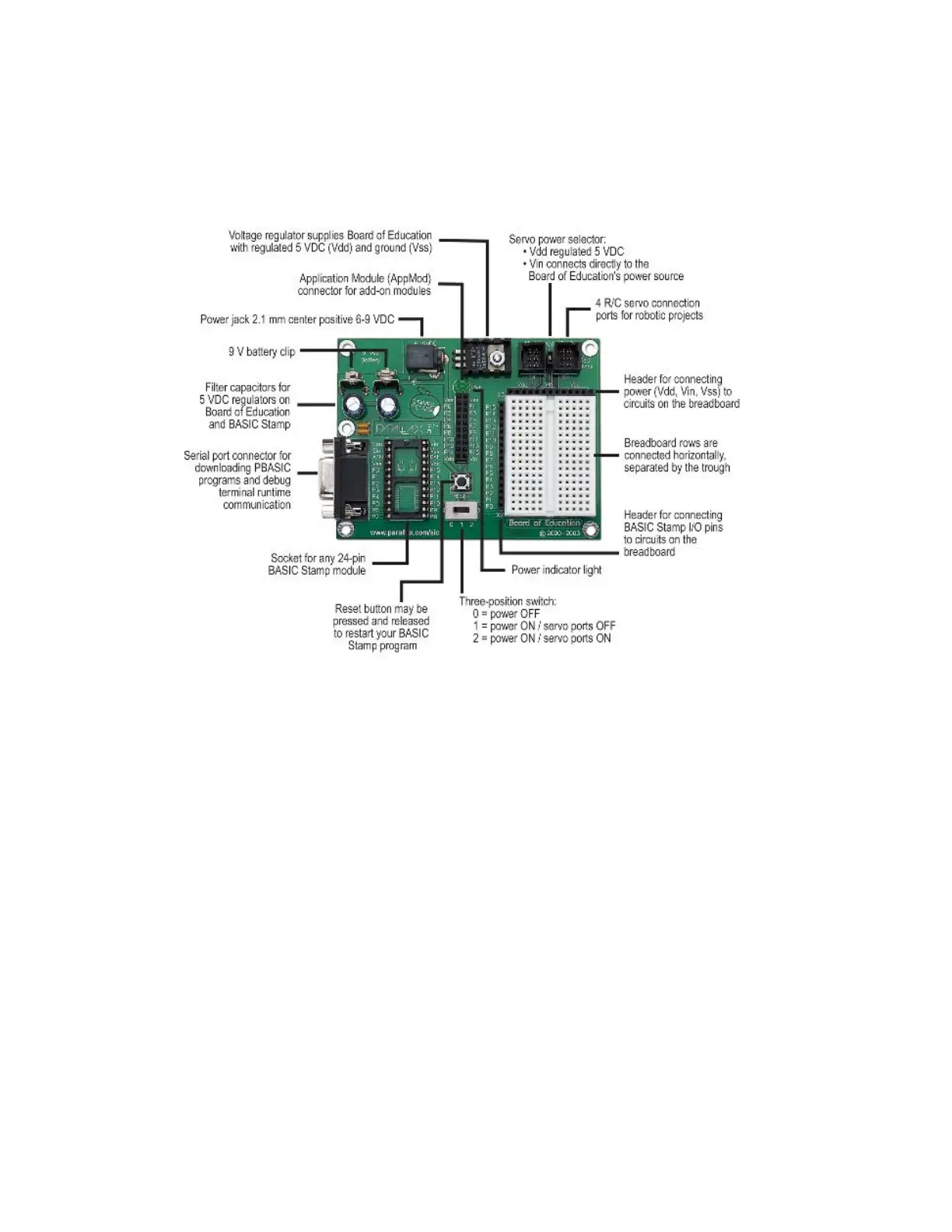

Figure B-2: Board of Education® Rev C Carrier Board
